3M Products & Supplies

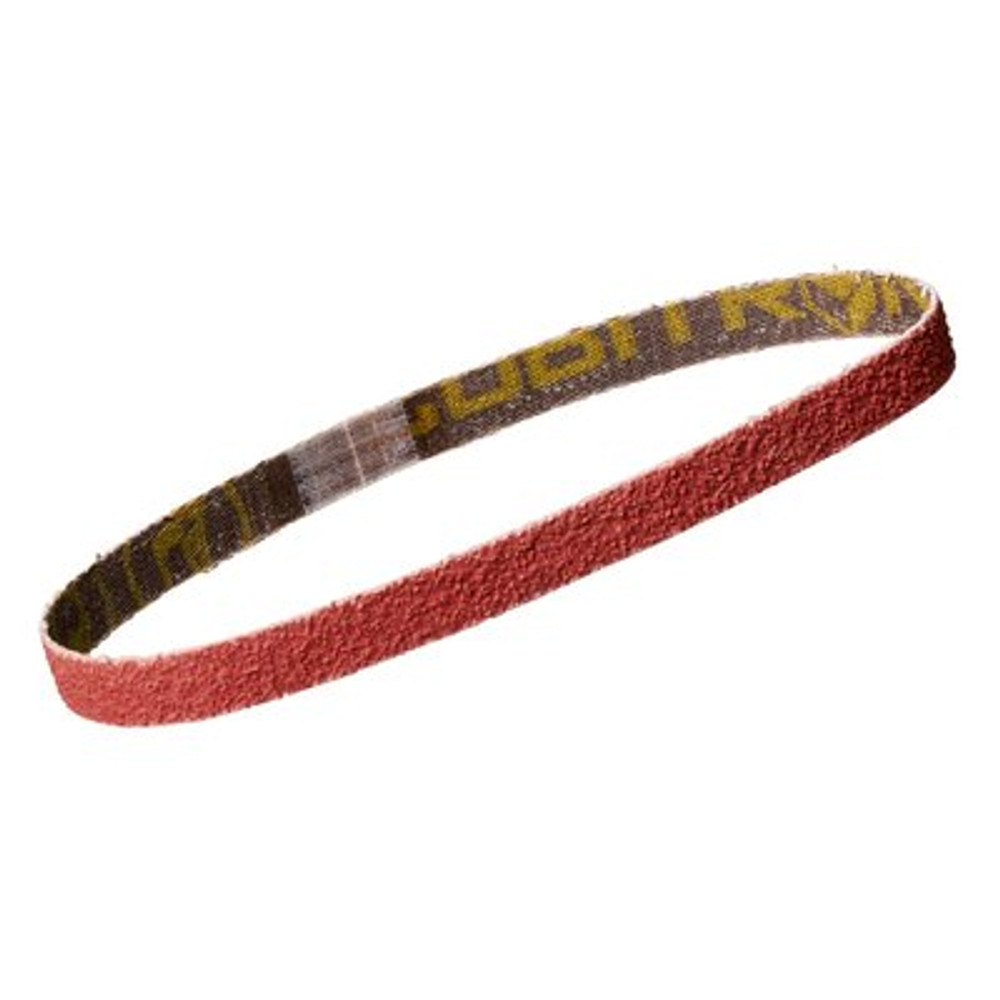

3M™ Cubitron™ ll Cloth Belt 784F, 120+ XF-weight, 1/4 in x 24 in, Fabri-lok, Single-flex - 7100217454

Sold As: 200-Pack
SKU: 7100217454
MPN: 7100217454
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060569153
3M ID: UU010848511
5 Digit UPC: 56915
$405.37 ($2.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Cubitron™ II Cloth Belt 784F features 3M Precision-Shaped Grain for longer life and a faster, more consistent cut than conventional ceramic aluminum oxide belts. A precise mix of shaped ceramic and premium aluminum oxide delivers optimal cut in medium-pressure grinding and blending applications. The belt also features a waterproof backing and grinding aid.

Features

  • Moderately flexible backing provides conformability for grinding and blending both straight and contoured surfaces
  • YF-weight polyester backing is used for Grades 36-80, while lighter XF-weight polyester backing is used for Grades 120-180
  • Proprietary mineral provides consistent, faster results on medium pressure applications, helping to improve productivity and throughput
  • Grinding aid cools abrasive processes on heat-sensitive alloys
  • Reduces changeouts and downtime in robotic and pressure-assisted applications
  • 3M Precision-Shaped Grain blend provides significantly longer life than comparable aluminum oxide belts
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Splice TypeFabri-lok
Flex TypeSingle-flex
Product CategoryCoated Abrasives
Coat TypeClosed Coat
Backing WeightXF Weight
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.25
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Overall Width (Metric)6.35
Overall Width (Imperial) UOMin
Overall Length (Metric)609.6
Overall Length (Imperial)24.0
Backing MaterialPolyester Cloth
Product FormBelt
Abrasive MaterialPrecision Shaped Ceramic
Grit120+
Number of Vacuum Holes-12345.0
Sub ApplicationsWeld Grinding
Wet or DryWet or Dry
ApplicationDeburring; Finishing; Grinding; Polishing
Mesh Size0.0
Product ColorMaroon
