3M Products & Supplies

3M™ Cubitron™ ll Cloth Belt 784F, 120+ XF-weight, 6 in x 48 in, Film-lok, Single-flex - 7010514917

Sold As: 20-Pack
SKU: 7010514917
MPN: 7010514917
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060690765
3M ID: CY998846760
5 Digit UPC: 69076
$413.21 ($20.66 / Count)
Hurry up! Current stock:

Product Description

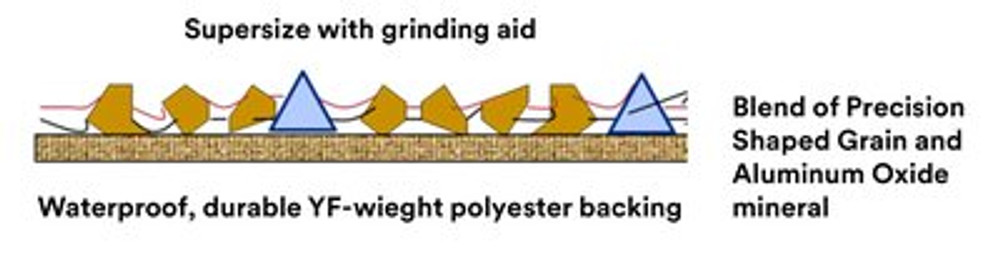

3M™ Cubitron™ II Cloth Belt 784F features 3M Precision-Shaped Grain for longer life and a faster, more consistent cut than conventional ceramic aluminum oxide belts. A precise mix of shaped ceramic and premium aluminum oxide delivers optimal cut in medium-pressure grinding and blending applications. The belt also features a waterproof backing and grinding aid.

Features

  • Moderately flexible backing provides conformability for grinding and blending both straight and contoured surfaces
  • Reduces changeouts and downtime in robotic and pressure-assisted applications
  • Grinding aid cools abrasive processes on heat-sensitive alloys
  • Proprietary mineral provides consistent, faster results on medium pressure applications, helping to improve productivity and throughput
  • 3M Precision-Shaped Grain blend provides significantly longer life than comparable aluminum oxide belts
  • YF-weight polyester backing is used for Grades 36-80, while lighter XF-weight polyester backing is used for Grades 120-180
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialPrecision Shaped Ceramic
Backing MaterialPolyester Cloth
Grit120+
Overall Length (Imperial) UOMin
Flex TypeSingle-flex
Splice TypeFilm-lok
Wet or DryWet or Dry
Number of Vacuum Holes-12345.0
Overall Length (Imperial)48.0
Product FormBelt
Overall Width (Imperial) UOMin
ApplicationDeburring; Finishing; Grinding; Polishing
Overall Width (Metric) UOMmm
Mesh Size0.0
Overall Width (Metric)152.4
Backing WeightYF Weight
Product CategoryCoated Abrasives
Overall Width (Imperial)6.0
Overall Length (Metric) UOMmm
Overall Length (Metric)1219.2
Coat TypeClosed Coat
Sub ApplicationsWeld Grinding
Product ColorMaroon
