3M Products & Supplies

3M™ Cubitron™ ll Cloth Belt 784F, 120+ XF-weight, 9 in x 60 in, Film-lok, Single-flex - 7010515257

Sold As: 20-Pack
SKU: 7010515257
MPN: 7010515257
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051119372045
3M ID: CY998851141
5 Digit UPC: 37204
$708.24 ($35.41 / Count)
Hurry up! Current stock:

Product Description

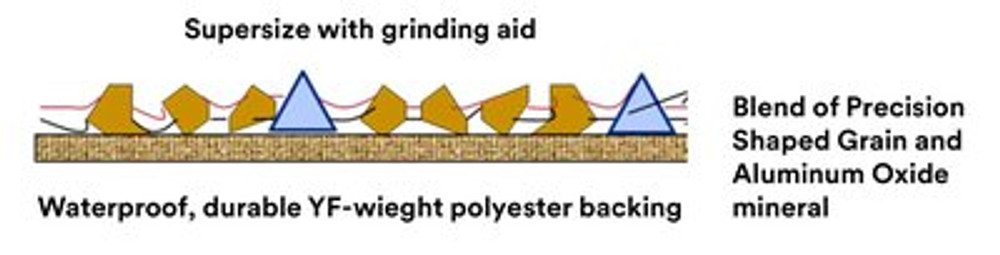

3M™ Cubitron™ II Cloth Belt 784F features 3M Precision-Shaped Grain for longer life and a faster, more consistent cut than conventional ceramic aluminum oxide belts. A precise mix of shaped ceramic and premium aluminum oxide delivers optimal cut in medium-pressure grinding and blending applications. The belt also features a waterproof backing and grinding aid.

Features

  • YF-weight polyester backing is used for Grades 36-80, while lighter XF-weight polyester backing is used for Grades 120-180
  • Moderately flexible backing provides conformability for grinding and blending both straight and contoured surfaces
  • Reduces changeouts and downtime in robotic and pressure-assisted applications
  • 3M Precision-Shaped Grain blend provides significantly longer life than comparable aluminum oxide belts
  • Proprietary mineral provides consistent, faster results on medium pressure applications, helping to improve productivity and throughput
  • Grinding aid cools abrasive processes on heat-sensitive alloys
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Wet or DryWet or Dry
Flex TypeSingle-flex
Overall Length (Metric)1524.0
Overall Width (Metric)228.6
Overall Width (Metric) UOMmm
Sub ApplicationsWeld Grinding
Overall Width (Imperial)9.0
ApplicationDeburring; Finishing; Grinding; Polishing
Overall Length (Imperial) UOMin
Number of Vacuum Holes-12345.0
Product CategoryCoated Abrasives
Backing MaterialPolyester Cloth
Overall Length (Metric) UOMmm
Grit120+
Product FormBelt
Backing WeightYF Weight
Coat TypeClosed Coat
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Mesh Size0.0
Splice TypeFilm-lok
Abrasive MaterialPrecision Shaped Ceramic
Product ColorMaroon
