3M Products & Supplies

3M™ Cubitron™ ll Cloth Belt 784F, 150+ XF-weight, 6 in x 424 in, Film-lok, Single-flex - 7010516010

Sold As: 20-Pack
SKU: 7010516010
MPN: 7010516010
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051119363944
3M ID: CY998861272
5 Digit UPC: 36394
$2,261.52 ($113.08 / Count)
Hurry up! Current stock:

Product Description

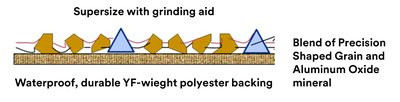

3M™ Cubitron™ II Cloth Belt 784F features 3M Precision-Shaped Grain for longer life and a faster, more consistent cut than conventional ceramic aluminum oxide belts. A precise mix of shaped ceramic and premium aluminum oxide delivers optimal cut in medium-pressure grinding and blending applications. The belt also features a waterproof backing and grinding aid.

Features

  • Moderately flexible backing provides conformability for grinding and blending both straight and contoured surfaces
  • Reduces changeouts and downtime in robotic and pressure-assisted applications
  • Proprietary mineral provides consistent, faster results on medium pressure applications, helping to improve productivity and throughput
  • 3M Precision-Shaped Grain blend provides significantly longer life than comparable aluminum oxide belts
  • YF-weight polyester backing is used for Grades 36-80, while lighter XF-weight polyester backing is used for Grades 120-180
  • Grinding aid cools abrasive processes on heat-sensitive alloys
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Backing MaterialPolyester Cloth
Overall Length (Imperial) UOMin
Coat TypeClosed Coat
Backing WeightXF Weight
Overall Length (Metric) UOMmm
Abrasive MaterialPrecision Shaped Ceramic
Grit150+
Splice TypeFilm-lok
Product FormBelt
Overall Length (Metric)10769.6
Overall Length (Imperial)424.0
Overall Width (Imperial)6.0
Wet or DryWet or Dry
Flex TypeSingle-flex
ApplicationDeburring; Finishing; Grinding; Polishing
Product CategoryCoated Abrasives
Overall Width (Metric) UOMmm
Number of Vacuum Holes-12345.0
Overall Width (Metric)152.4
Mesh Size0.0
Sub ApplicationsWeld Grinding
Product ColorMaroon
