3M Products & Supplies

3M™ Cubitron™ ll Cloth Belt 784F, 36+ YF-weight, 1-3/4 in x 132 in, Film-lok, Single-flex - 7100190549

Sold As: 50-Pack
SKU: 7100190549
MPN: 7100190549
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060725221
3M ID: UU010034245
5 Digit UPC: 72522
$933.72 ($18.67 / Count)
Hurry up! Current stock:

Product Description

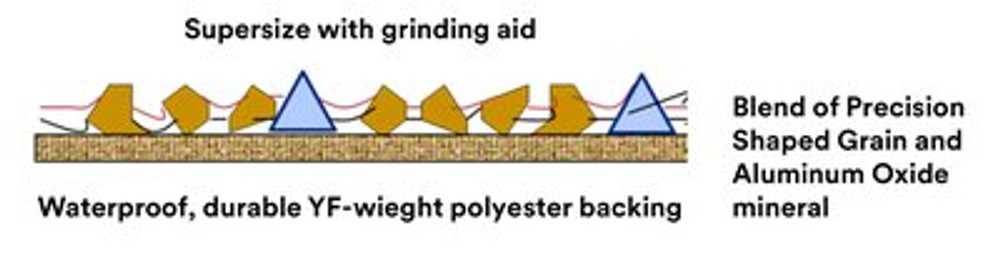

3M™ Cubitron™ II Cloth Belt 784F features 3M Precision-Shaped Grain for longer life and a faster, more consistent cut than conventional ceramic aluminum oxide belts. A precise mix of shaped ceramic and premium aluminum oxide delivers optimal cut in medium-pressure grinding and blending applications. The belt also features a waterproof backing and grinding aid.

Features

  • YF-weight polyester backing is used for Grades 36-80, while lighter XF-weight polyester backing is used for Grades 120-180
  • Reduces changeouts and downtime in robotic and pressure-assisted applications
  • Grinding aid cools abrasive processes on heat-sensitive alloys
  • Proprietary mineral provides consistent, faster results on medium pressure applications, helping to improve productivity and throughput
  • 3M Precision-Shaped Grain blend provides significantly longer life than comparable aluminum oxide belts
  • Moderately flexible backing provides conformability for grinding and blending both straight and contoured surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMmm
Splice TypeFilm-lok
Sub ApplicationsWeld Grinding
Backing WeightYF Weight
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Product FormBelt
Overall Length (Imperial)132.0
Overall Width (Metric)44.45
ApplicationDeburring; Finishing; Grinding; Polishing
Overall Width (Metric) UOMmm
Overall Length (Metric)3352.8
Grit36+
Overall Width (Imperial)1.75
Abrasive MaterialPrecision Shaped Ceramic
Coat TypeClosed Coat
Backing MaterialPolyester Cloth
Mesh Size0.0
Product CategoryCoated Abrasives
Number of Vacuum Holes-12345.0
Wet or DryWet or Dry
Flex TypeSingle-flex
Product ColorMaroon
