3M Products & Supplies

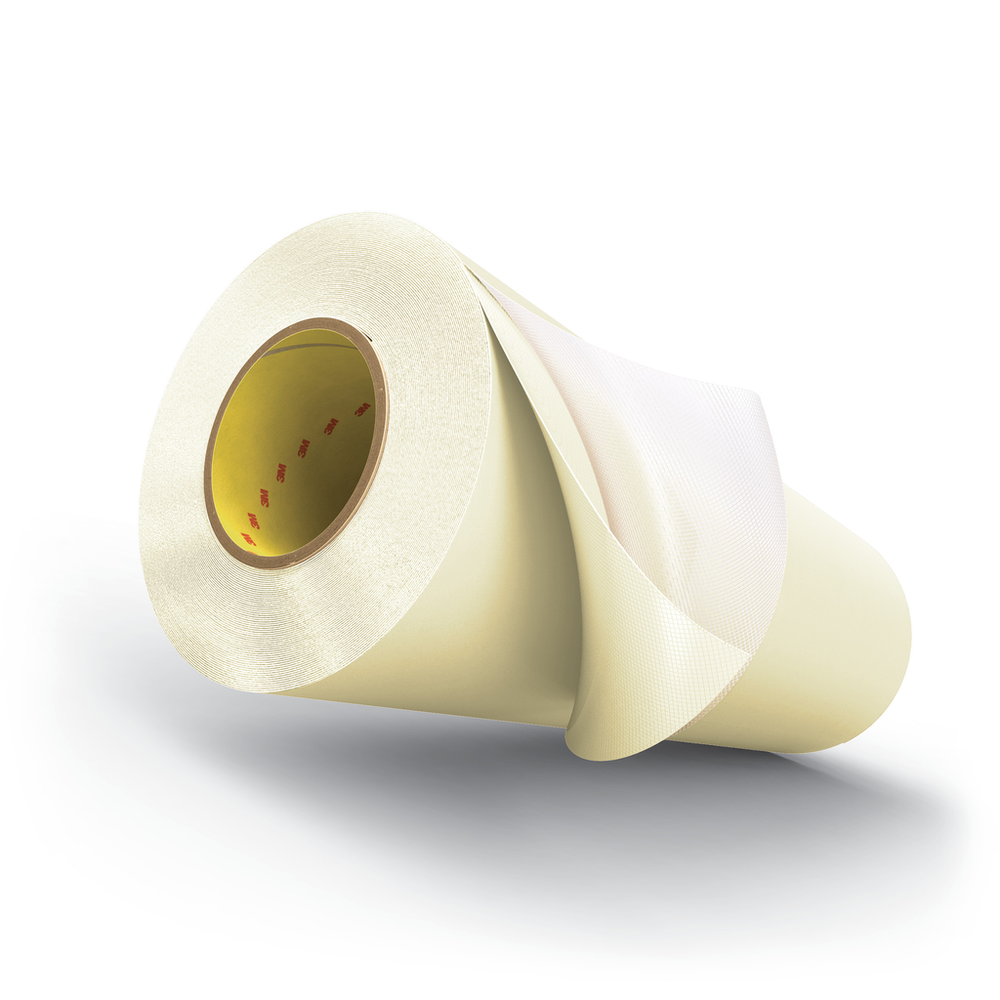

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020, White, 42 in x 36 yd, 20 mil, 1 Roll/Case - 7100334128

Sold As: 2-Pack
SKU: 7100334128
MPN: 7100334128
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060010988
3M ID: 70001000952
$4,696.37 ($2348.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Print plates mounted on E1020 will have no air bubbles under the plate due to the air release feature designed into the tape
  • White foam color indicates the standard, medium density foam
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Overall Length (Imperial)36.0
Backing MaterialPolyethylene Foam
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
IndustriesPrint
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial) UOMmil
Print Quality (Series)10 Series
Warranty Period2 Years from Date of Manufacture
Country of OriginUnited States
Urethane SleevesYes
Application Thickness (Metric)0.508
Overall Width (Imperial)42.0
Product ColorWhite
Print QualityCombination Printing - Standard
Primary Liner Thickness (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Shelf Life730
Primary LinerPolycoated Polyester
Overall Length (Imperial) UOMyd
Adhesive TypeDifferential Acrylate
Overall Width (Metric)1066.8
Application Thickness (Imperial)20
Overall Width (Metric) UOMmm
Overall Length (Metric)32.918
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.5
