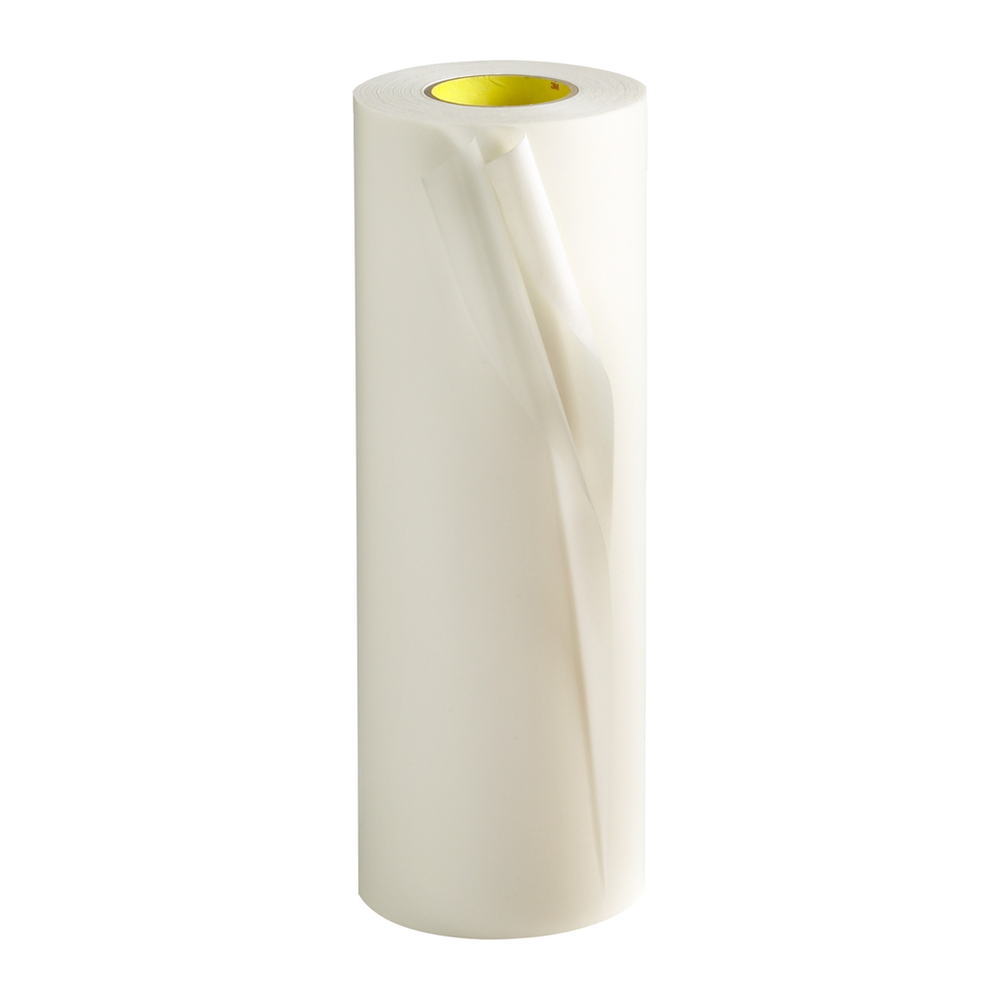

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1040, White, 18 in x 50 ft, 40 mil, 1 Roll/Case - 7000049173

SKU: 7000049173
MPN: 7000049173
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50048011568039
3M ID: 70006404522
5 Digit UPC: 56803
$546.04 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1040 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • Print plates mounted on E1040 will have no air bubbles under the plate due to the air release feature designed into the tape
  • The white foam color indicates the standard, medium density foam
  • 0.040 inch (1.02 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Imperial) UOMmil
Application Thickness (Metric)1.016
Overall Thickness (Imperial) UOMmil
Overall Width (Metric)457.2
Overall Width (Metric) UOMmm
Composite SleevesYes
Overall Length (Metric) UOMm
Overall Thickness (Imperial)42.0
Urethane SleevesYes
Print Quality (Series)10 Series
Overall Width (Imperial)18.0
Application Thickness (Imperial)40
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Metric) UOMmm
Air ReleaseYes
Overall Length (Imperial)50.0
Primary Liner Thickness (Metric)0.11
Warranty Period1 Year from Date of Manufacture
IndustriesPrint
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorWhite
Print QualityCombination Printing - Standard
Units per Case1.0
Backing MaterialPolyethylene Foam
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationFlexographic Plate Mounting
Adhesive TypeDifferential Acrylate
Application Thickness (Metric) UOMmm
Overall Length (Metric)15.24
Application Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Imperial)42.0
Primary LinerPolycoated Polyester
Total Tape Thickness without Liner (Metric)1.07
Product FormRoll
