3M Products & Supplies

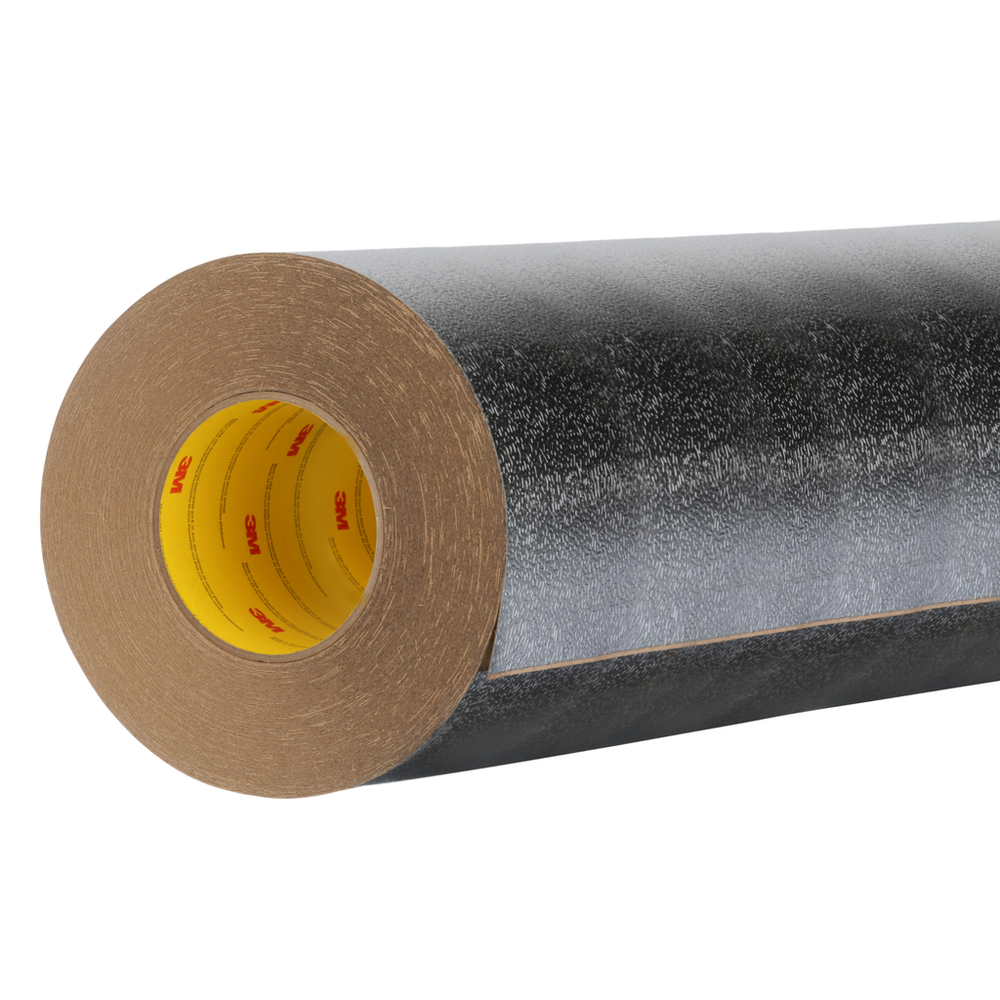

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1520, Purple, 54 in x 36 yd, 20 mil, 1 Roll/Case - 7100312117

SKU: 7100312117
MPN: 7100312117
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005366
3M ID: 70007558656
$2,634.84 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1520 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This purple foam mounting tape provides high quality medium combination print.

Features

  • E1520 securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1520 will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Purple foam color indicates the medium density foam
  • Has a medium density foam that is ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary LinerPolycoated Polyester
Adhesive TypeDifferential Acrylate
Overall Width (Imperial)54.0
IndustriesPrint
Overall Width (Metric) UOMmm
Overall Width (Metric)1371.6
Product ColorPurple
Backing MaterialPolyethylene Foam
Overall Length (Imperial)36.0
Overall Length (Metric)32.918
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Warranty Period2 Years from Date of Manufacture
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial) UOMmil
Application Thickness (Metric)0.5
Application Thickness (Imperial)20
Application Thickness (Metric) UOMmm
Clean RemovalYes
Urethane SleevesYes
Primary Liner Thickness (Metric) UOMmm
Print Quality (Series)15 Series
Print QualityCombination Printing - Medium
