3M Products & Supplies

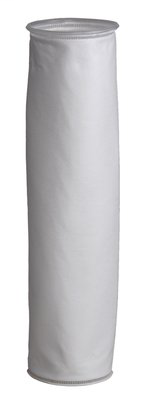

3M DF Series Filter Cartridge, Model DFG050EE1R, 50 Micron, 18 per case

Sold As: 18-Pack
SKU: 7000050490
MPN: DFG050EE1R
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00016145082955
3M ID: 70020038959
5 Digit UPC: 8295
$537.89 ($29.88 / Count)
Hurry up! Current stock:

Product Description

Overview

  • We use advanced thermal sealing processes to weld the side seams to form the bag and secure the sealing ring. Thermal-singe treatment of the exterior surface prevents material fibers from migrating into the clean filtered process media. Each grade of the 3M™ DF series filter element is manufactured from high performance fibers that are selected, based on extensive media performance testing. No adhesives, binders or silicone are used in the manufacturing processes.
  • The 3M™ DF series filter media consists of 2 layers with the first layer being "open" to remove the larger contaminants while the second layer is "tighter" to remove the smaller contaminants. Our graded porosity structure provides greater contaminant holding capacity and longer life than conventional single layer media. Compared to conventional felt filter bags, 3M DF series filter element provide up to 4 times the service life, superior contaminant reduction efficiency, enhanced flow per filter and reduced losses associated with frequent filter change-outs.
  • Cartridge design reduces filter medium rupture, contaminant by-pass and unloading
  • Simplifies filter installation, removal and disposal
  • Graded-porosity filter medium provides up to 4 times more life than most conventional bag filters for fewer change-outs
  • The 3M™ DF series filter element is a proven alternative to most conventional bag filters. Our filter is a true graded porosity media structure that provides a 62% increase in surface area compared to a standard #2 bag and up to 4 times more service life.
  • Reduced filter changes help minimize product loss, labor, disposal costs, and operator exposure.
  • The 3M DF series filter element consists of two cylinders bonded to a top plate and a lower seal plate. As fluid enters the top of the filter through flow channels in the top plate, it flows between the inner and outer media cylinders. Then it passes through the media and support basket and into the clean chamber of the filter housing. Our design incorporates an innovative geometry of both bag filter and restrainer basket, giving complete 3-dimensional support of the media. This eliminates the potential for bag filter rupture and the resulting gross contamination of the downstream effluent. The 3M DF series filter element design reduces hold-up fluid volume by 67% compared to conventional filter bags, which helps minimize worker exposure to process fluids due to less frequent bag change-outs.
  • Easily retrofits standard bag filter housings

Specifications

Effective Filtration Area3.4 ft²
Length (Metric)36.3 cm
Brand3M
End ModificationClosed (for standard bag housing)
Pressure RangeRecommended Change-out at 20 psid
Diameter7 Inch
IndustriesIndustrial
Filter MaterialPolyester
Pressure Range (metric)Recommended Change-out at 1.4 bar
Grade50 micron
Maximum Operating Temperature (Fahrenheit)300°F
Flow RateMax Recommended Flow Rate 75 gpm
Diameter (Metric)17.8 cm
Length14.3 Inch
Filter TypeFilter Cartridge
FormulationGraded porosity
Maximum Operating Temperature (Celsius)149°C
Gasket/O-ring MaterialPolyester
Micron Rating50
Series3M™ DF Series
