3M Products & Supplies

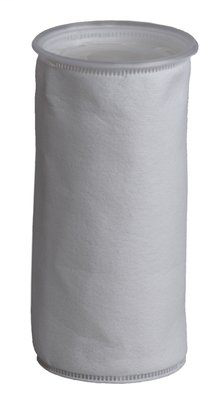

3M DF Series Filter Cartridge, 16 per case, DFG100PP2C

Sold As: 16-Pack
SKU: 7100011097
MPN: DFG100PP2C
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00016145069352
3M ID: 70020003532
5 Digit UPC: 6935
$435.36 ($27.21 / Count)
Hurry up! Current stock:

Product Description

Overview

  • The 3M™ DF series filter media consists of 2 layers with the first layer being "open" to remove the larger contaminants while the second layer is "tighter" to remove the smaller contaminants. Our graded porosity structure provides greater contaminant holding capacity and longer life than conventional single layer media. Compared to conventional felt filter bags, 3M DF series filter element provide up to 4 times the service life, superior contaminant reduction efficiency, enhanced flow per filter and reduced losses associated with frequent filter change-outs.
  • Easily retrofits standard bag filter housings
  • Cartridge design reduces filter medium rupture, contaminant by-pass and unloading
  • Reduced filter changes help minimize product loss, labor, disposal costs, and operator exposure.
  • The 3M™ DF series filter element is a proven alternative to most conventional bag filters. Our filter is a true graded porosity media structure that provides a 62% increase in surface area compared to a standard #2 bag and up to 4 times more service life.
  • We use advanced thermal sealing processes to weld the side seams to form the bag and secure the sealing ring. Thermal-singe treatment of the exterior surface prevents material fibers from migrating into the clean filtered process media. Each grade of the 3M™ DF series filter element is manufactured from high performance fibers that are selected, based on extensive media performance testing. No adhesives, binders or silicone are used in the manufacturing processes.
  • The 3M DF series filter element consists of two cylinders bonded to a top plate and a lower seal plate. As fluid enters the top of the filter through flow channels in the top plate, it flows between the inner and outer media cylinders. Then it passes through the media and support basket and into the clean chamber of the filter housing. Our design incorporates an innovative geometry of both bag filter and restrainer basket, giving complete 3-dimensional support of the media. This eliminates the potential for bag filter rupture and the resulting gross contamination of the downstream effluent. The 3M DF series filter element design reduces hold-up fluid volume by 67% compared to conventional filter bags, which helps minimize worker exposure to process fluids due to less frequent bag change-outs.
  • Simplifies filter installation, removal and disposal
  • Graded-porosity filter medium provides up to 4 times more life than most conventional bag filters for fewer change-outs

Specifications

Grade100 Micron
Series3M™ DF Series
Diameter (Metric)17.8 cm
Length27.8 Inch
Pressure Range (metric)Recommended Change-out at 1.4 bar
Gasket/O-ring MaterialPolypropylene
Length (Metric)70.6 cm
Diameter7 Inch
Effective Filtration Area6.7 ft²
Brand3M
End ModificationOpen (for 3M DF Series housing)
FormulationGraded porosity
Filter TypeFilter Cartridge
Maximum Operating Temperature (Celsius)82°C
IndustriesIndustrial
Filter MaterialPolypropylene
Pressure RangeRecommended Change-out at 20 psid
Maximum Operating Temperature (Fahrenheit)180°F
Micron Rating100
Flow RateMax Recommended Flow Rate 150 gpm
