3M Products & Supplies

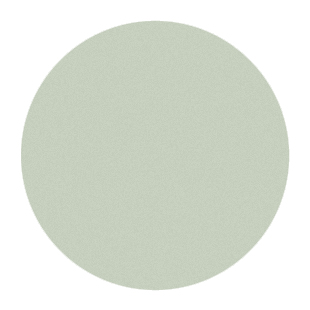

3M™ Diamond Lapping Film 661X, 0.10 Micron Disc, 12 in x NH, 10/Inner, 100/Case - 7010360191

Sold As: 100-Pack
SKU: 7010360191
MPN: 7010360191
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111561669
3M ID: 60020005546
5 Digit UPC: 56166
$3,731.67 ($37.32 / Count)
Hurry up! Current stock:

Product Description

Precisely graded diamond particles coated on a polyester film. Provides a consistent, repeatable finish on extremely hard materials. Available in several grades between 0.10 and 30.0 micron.

Features

  • Fast cut, increased throughput
  • Flatter surface and sharp edges
  • Most widely used diamond lapping film
  • Uniform finish
  • Available in discs, sheets and rolls
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)0.0
Product FormDisc
Overall Width (Metric)0.0
Center Hole Diameter (Imperial)0.0
Micron Grade0.1 μm
Center Hole Diameter (Metric)0.0
Overall Diameter (Imperial)12.0
Attachment TypePlain Back
Backing Thickness (Metric)0.076
Backing Thickness (Imperial)3.0
Backing Thickness (Metric) UOMmm
Overall Diameter (Metric)304.8
Product ColorGreen
Product Series661X
Abrasive MaterialDiamond
ApplicationFlat Lapping; Polishing; Superfinishing
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Quartz; Sapphire; Stone
Product UsageFiber Optic Connectors
Overall Width (Imperial)0.0
Backing MaterialPolyester Film
Backing Thickness (Imperial) UOMmil
Overall Diameter (Imperial) UOMin
Overall Diameter (Metric) UOMmm
Overall Length (Imperial)0.0
