3M Products & Supplies

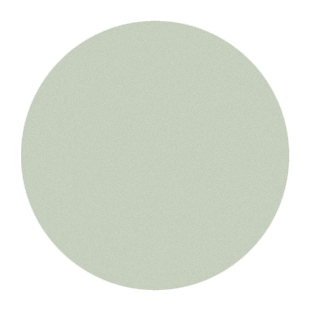

3M™ Diamond Lapping Film 661X, 0.10 Micron Disc, 5 in x NH, 25/Inner, 250/Case - 7000044861

Sold As: 250-Pack
SKU: 7000044861
MPN: 7000044861
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111500729
3M ID: 60070009513
5 Digit UPC: 50072
$1,217.41 ($4.87 / Count)
Hurry up! Current stock:

Product Description

Precisely graded diamond particles coated on a polyester film. Provides a consistent, repeatable finish on extremely hard materials. Available in several grades between 0.10 and 30.0 micron.

Features

  • Flatter surface and sharp edges
  • Most widely used diamond lapping film
  • Uniform finish
  • Fast cut, increased throughput
  • Available in discs, sheets and rolls
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing Thickness (Imperial)3.0
Overall Length (Metric)0.0
Micron Grade0.1 μm
Overall Width (Metric)0.0
Overall Diameter (Metric)127.0
Product UsageFiber Optic Connectors
Center Hole Diameter (Imperial)0.0
Backing MaterialPolyester Film
Product FormDisc
Center Hole Diameter (Metric)0.0
ApplicationFlat Lapping; Polishing; Superfinishing
Product ColorGreen
Overall Diameter (Imperial)5.0
Overall Length (Imperial)0.0
Overall Width (Imperial)0.0
Product Series661X
Overall Diameter (Metric) UOMmm
Backing Thickness (Metric) UOMmm
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Quartz; Sapphire; Stone
Attachment TypePlain Back
Abrasive MaterialDiamond
Backing Thickness (Metric)0.076
Overall Diameter (Imperial) UOMin
Backing Thickness (Imperial) UOMmil
