3M Products & Supplies

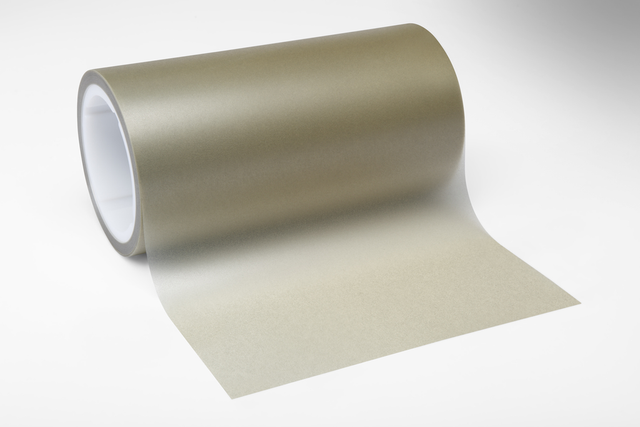

3M™ Diamond Lapping Film 663X, 30.0 Micron Roll, 4 in x 50 ft x 3 in ASO, 1/Case - 7000044834

Sold As: 4-Pack
SKU: 7000044834
MPN: 7000044834
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111499733
3M ID: 60070008515
5 Digit UPC: 49973
$6,417.22 ($1604.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film 663X has a stronger resin system that gives this product added toughness and longer life. Used primarily in superfinishing, roll polishing, and flat lapping applications. Available in 30.0, 45.0, and 60.0 micron grades.

Features

  • Uniform finish
  • Fast cut
  • Flat surface, low rounding
  • Long abrasive life minimizes abrasive changes
  • Increased durability
  • Available in rolls, discs and sheets
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Attachment TypePlain Back
Product Series663X
Backing Thickness (Imperial)3.0
Overall Diameter (Metric)0.0
Overall Length (Metric) UOMm
Backing MaterialPolyester Film
Micron Grade30 μm
Overall Diameter (Imperial)0.0
Center Hole Diameter (Imperial)0.0
Overall Width (Imperial)4.0
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Stone
Overall Width (Metric) UOMmm
Product ColorGreen
Product FormRoll
ApplicationFlat Lapping; Polishing; Superfinishing
Backing Thickness (Metric) UOMmm
Overall Width (Metric)101.6
Backing Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMft
Product UsageFiber Optic Connectors
Center Hole Diameter (Metric)0.0
Overall Length (Metric)15.24
Overall Width (Imperial) UOMin
Overall Length (Imperial)50.0
Abrasive MaterialDiamond
Backing Thickness (Metric)0.076
