3M Products & Supplies

3M™ Diamond Lapping Film 668X, 15.0 Micron PSA Disc, 5 in x NH - 7100285709

SKU: 7100285709
MPN: 7100285709
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: UU012097422
$7.87 each
Hurry up! Current stock:

Product Description

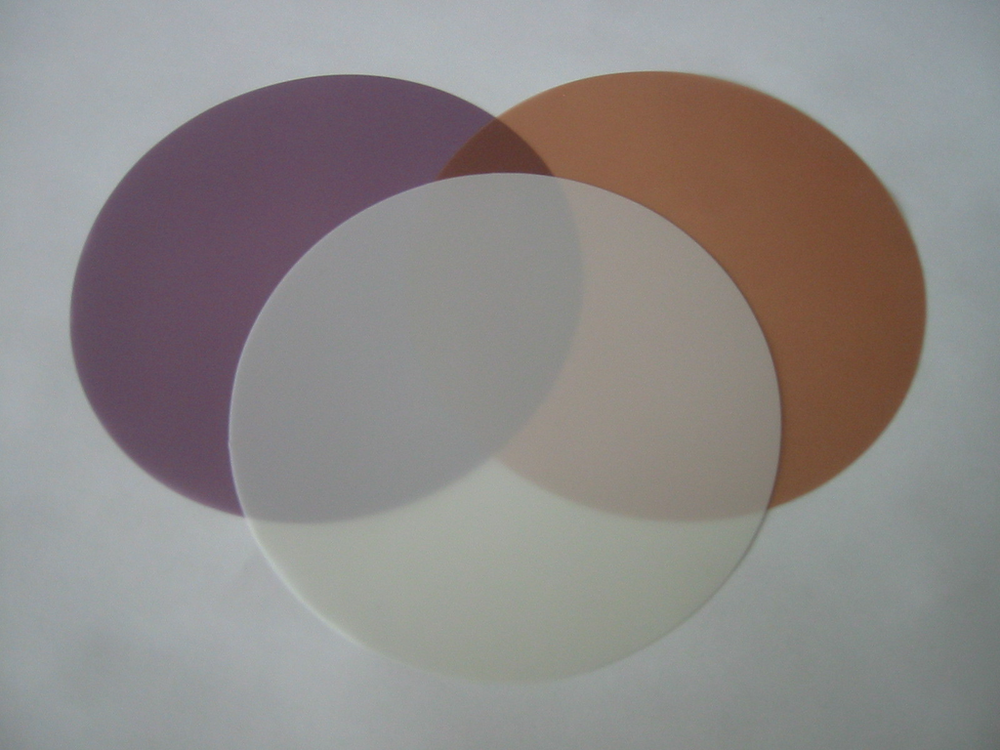

3M™ Diamond Lapping Film 668X is a PSA version of 661X product. Precisely graded diamond particles coated on a polyester film. Provides a consistent, repeatable finish on extremely hard materials. Available in many grades between 0.10 and 30.0 micron.

Features

  • Uniform finish
  • Flat surfaces and low edge rounding
  • Long abrasive life minimizes abrasive changes
  • Fast cut, increased throughput
  • Most widely used diamond lapping film
  • PSA-backed
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.0
Backing MaterialPolyester Film
Overall Diameter (Imperial)5.0
Backing Thickness (Imperial)3.0
Overall Width (Metric)0.0
Overall Diameter (Imperial) UOMin
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Stone
Center Hole Diameter (Imperial)0.0
Overall Diameter (Metric) UOMmm
Overall Length (Metric)0.0
Center Hole Diameter (Metric)0.0
ApplicationFlat Lapping; Polishing; Superfinishing
Backing Thickness (Imperial) UOMmil
Product FormDisc
Product ColorOrange
Abrasive MaterialDiamond
Overall Length (Imperial)0.0
Attachment TypePSA Back
Micron Grade15 μm
Overall Diameter (Metric)127.0
Product Series668X
Product UsageFiber Optic Connectors
Backing Thickness (Metric) UOMmm
Backing Thickness (Metric)0.076
