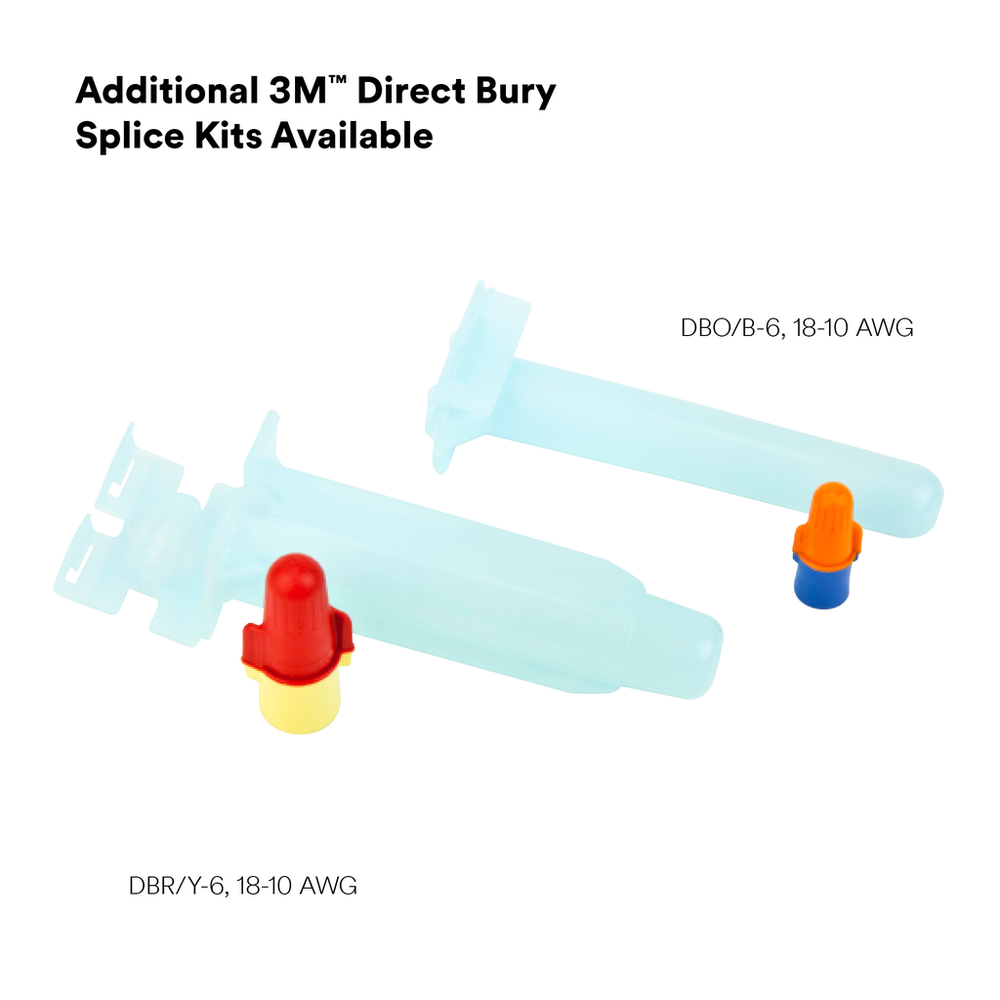

3M™ Direct Bury Splice Kit DBO/B-6 (Bulk), 18-10 AWG, 100/Case - 7000006238

Name: 3M™ Direct Bury Splice Kit DBO/B-6 (Bulk), 18-10 AWG, 100/Case - 7000006238
Brand: 3M Products & Supplies
SKU: 7000006238
Price: 287.69 USD
Availability: InStock

Sold As: 100-Pack

SKU: 7000006238

MPN: 7000006238

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051128590768

3M ID: 80611467293

5 Digit UPC: 59076

$287.69 ($2.88 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Direct Bury Splice Kits combine the quick, reliable connection of a 3M™ Performance Plus™ Wire Connector with the moisture resistance of a high impact, UV resistant tube prefilled with moisture resistant grease.

Features

Twist-on type for quick connection

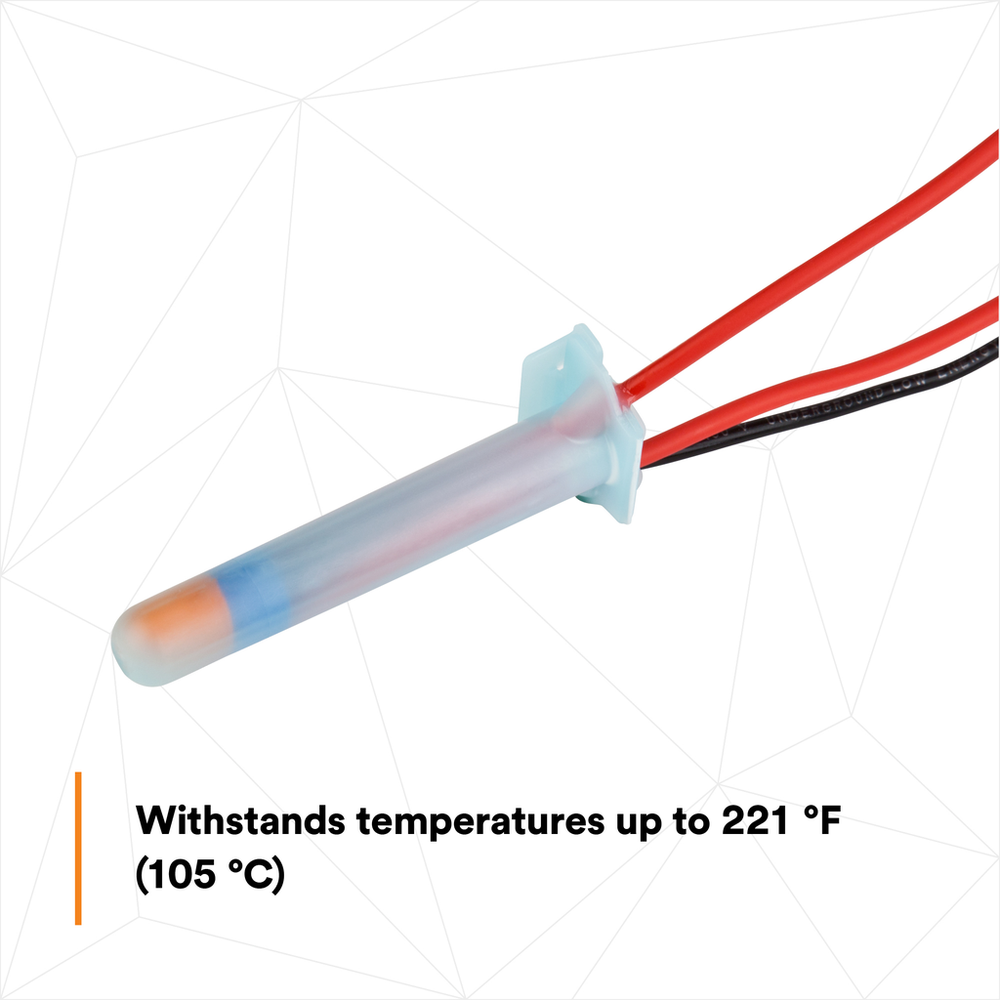

Withstands temperatures up to 221 °F (105 °C)

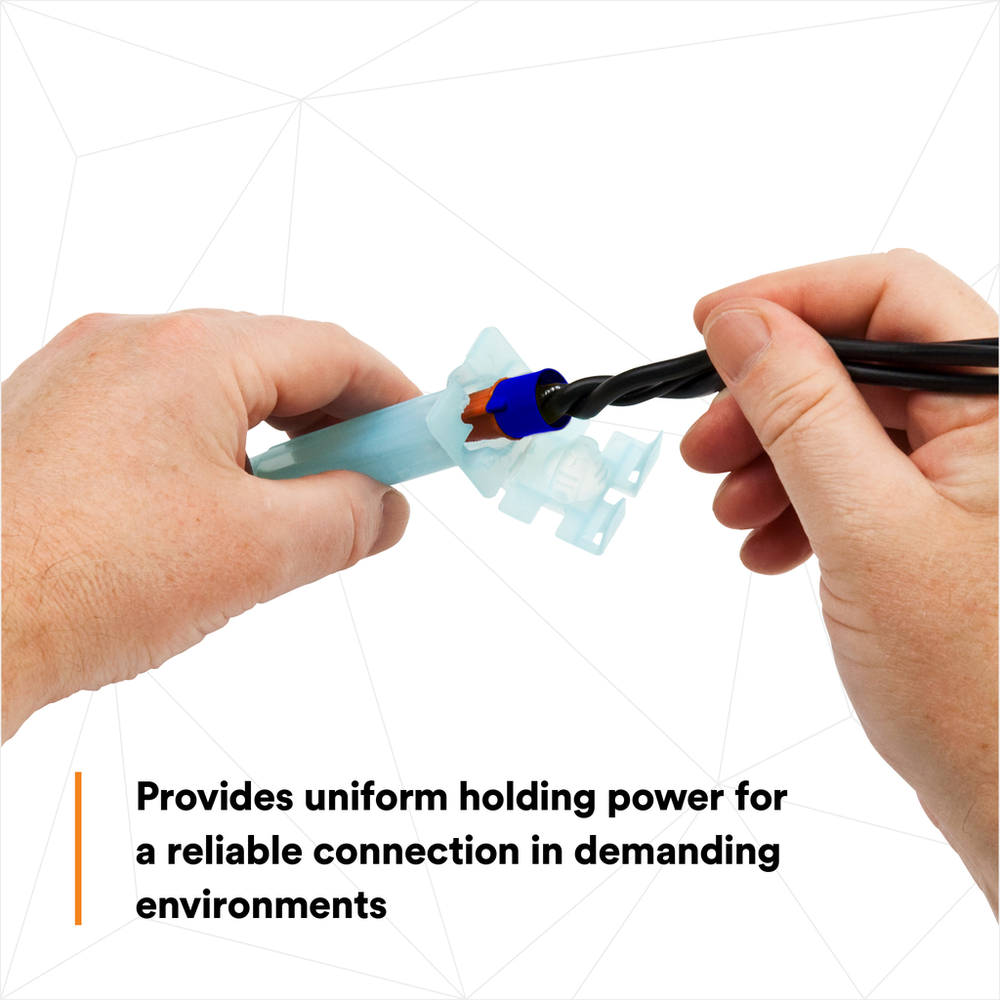

Delivers uniform holding power
Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction

Downloads

Document Catalog 2

Safety Data Sheet

Document Catalog 1

Document Instructions

Specifications

Country of Origin	United States
Flame Retardant	Yes
Wire Connector Type	Direct Bury Splice Kit
Maximum Operating Temperature (Celsius)	105.0
Minimum Operating Temperature (Fahrenheit)	-40.0
Maximum Insulation Outer Diameter (Metric) UOM	mm
Maximum Insulation Outside Diameter	0.145 in
Product Type	Connector
Maximum Operating Temperature (Fahrenheit)	221.0
Maximum Insulation Outer Diameter (Metric)	3.7
Voltage Rating	600 Volt
Conductor Sizes (Imperial)	18 - 10 AWG
Maximum Voltage Rating	600 V
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Fahrenheit) UOM	Degree
Minimum Conductor Size (Metric)	0.75 mm²
Product Color	Blue
Minimum Operating Temperature (Celsius) UOM	Degree
Connection Type	Wire
Maximum Operating Temperature (Celsius) UOM	Degree
Maximum Recommended Voltage Rating	600.0
Wire Connector	O/B+
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Insulation Color	Orange/Blue
Maximum Recommended Voltage Rating UOM	V
Minimum Operating Temperature (Celsius)	-40.0
