3M Products & Supplies

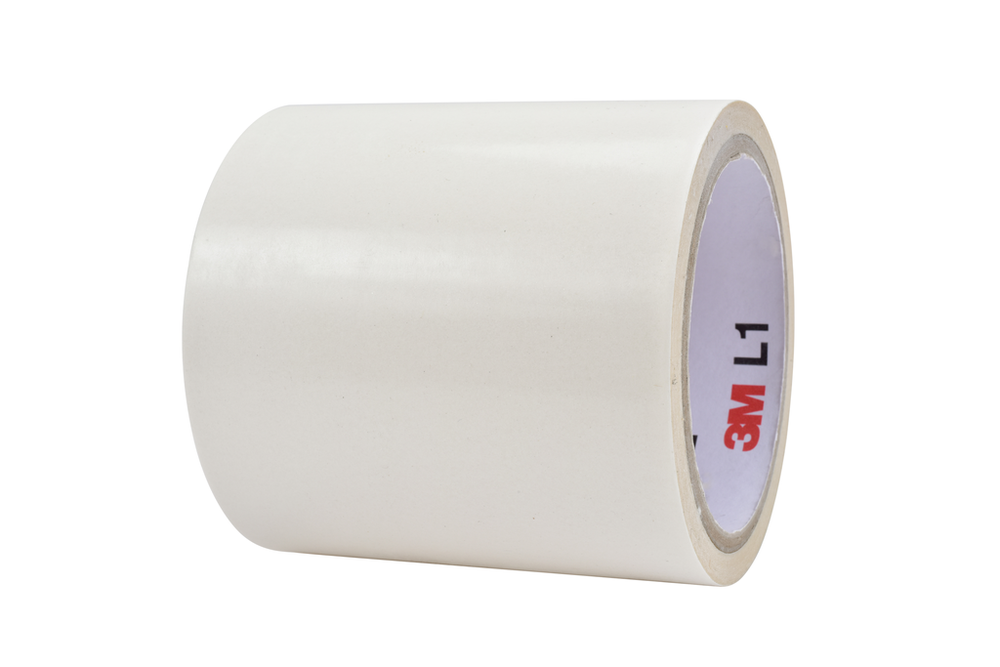

3M™ Double Coated Adhesive Tape L1+DCP, Clear, 1372 mm x 230 m, 3.5 mil, 6 Roll/Pallet - 7100089832

Sold As: 6-Pack
SKU: 7100089832
MPN: 7100089832
For an accurate lead time please contact us
UPC: 04054596155374
3M ID: UU-0049-0254-8
5 Digit UPC: 15537
$8,956.45 ($1492.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Adhesive Tape L1+DCP is a 3.5 mil double-coated polyester (PET) tape that provides added dimensional stability and improved handing during laminating or die cutting processes, particularly on thin or flexible substrates. Adhesive coat weight of 1.5 mils on each side of a 0.50 mil PET carrier provides good adhesion to many foam substrates.

Features

  • 1.5 mil on each side of 0.50 mil polyester (PET) carrier provides good adhesion to many open cell foam substrates
  • Double-coated PET carrier provides added dimensional stability during lamination
  • Withstands temperatures up to 200°F / 93°C
  • Modified acrylic adhesive offers good initial tack and peel
  • White 74 lb. densified kraft (DK) liner for excellent processingq
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginGermany
Backing (Carrier) MaterialPET
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)230.0
Overall Width (Imperial)54.02
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
IndustriesAppliance, Electronics, General Industrial, Medical, Transportation
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)200.0
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric)1372.0
Overall Width (Metric) UOMmm
Product ColorTransparent
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric)0.013
Maximum Operating Temperature (Celsius)93.0
Overall Length (Imperial)251.53
Backing (Carrier) Thickness (Metric) UOMmm
