3M Products & Supplies

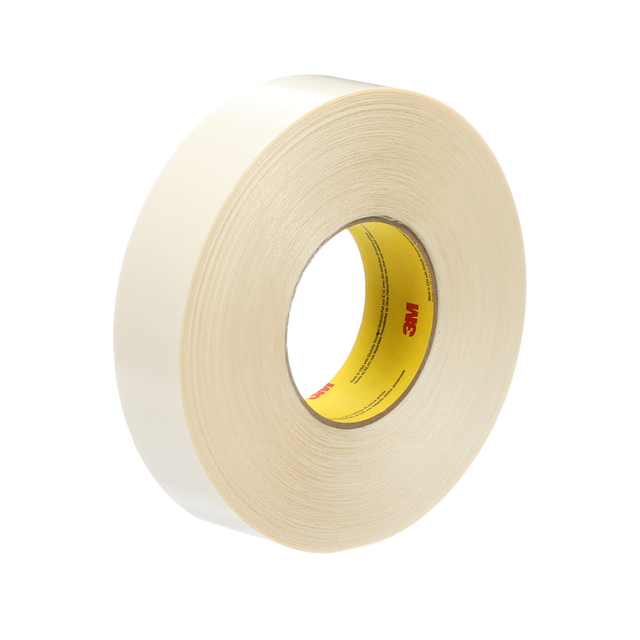

3M™ Double Coated Tape 3028EK, 11 5/8 in x 600 yd, 1 Roll/Case - 7010334732

SKU: 7010334732
MPN: 7010334732
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111076835
3M ID: 70006657541
5 Digit UPC: 7683
$6,055.14 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 3028EK is a 5.6 mil double coated tape with adhesive 350 on a 5.5 mil white, extensible kraft liner, no print

Features

  • High adhesion to a wide variety of materials such as HSE high surface energy, LSE low surface energy and metals. Excellent shear holding power, high temperature resistance and excellent UV resistance.
  • High performance joining and bonding in electronics, medical, and transportation markets. Withstands tough application environments.
  • 5.6 mil double coated tape with a polyester PET carrier on an extensible kraft paper liner which facilitates narrow slitting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Face Side Adhesive Thickness (Metric)0.058
Master Size Length (Metric)98.8
Back Side Adhesive Thickness (Metric) UOMmm
Carrier Thickness0.09513889
Core Size (Metric) UOMmm
Master Size Length (Metric) UOMm
Master Size Length (Imperial)108.0
Product FormRoll
Master Size Length (Imperial) UOMLinear
Primary Liner Thickness (Metric)0.14
Total Tape Thickness without Liner (Imperial) UOMmil
Master Size Width (Imperial)48.0
Back Side Adhesive Thickness (Imperial)2.3
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial)5.6
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Overall Length (Metric)548.64
Backing (Carrier) Thickness (Imperial) UOMmil
Core Size (Metric)76.2
Carrier Thickness (Metric)0.03
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)2.3
Core Size (Imperial) UOMin
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Overall Thickness (Imperial)5.6
Minimum Operating Temperature (Fahrenheit) UOMDegree
Carrier MaterialPolyester
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial)600.0
Primary LinerExtensible Kraft Paper
Primary Liner Thickness (Imperial)5.5
Units per Case1.0
Total Tape Thickness without Liner (Metric)0.14
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)450.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Product ColorTransparent
Carrier Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Core Size (Imperial)3.0
IndustriesAutomotive, Electronics, General Industrial, Medical, Metalworking, Military and Government, Paper, Specialty Vehicles, Transportation
Adhesive TypeHigh Performance Acrylic Adhesive 350
Master Size Width (Metric) UOMcm
Master Size Width (Imperial) UOMin
Master Size Width (Metric)122.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Overall Width (Metric)295.275
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.025
Overall Width (Imperial)11.625
Carrier Thickness UOMmil
Primary Liner Thickness (Metric) UOMmm
