3M Products & Supplies

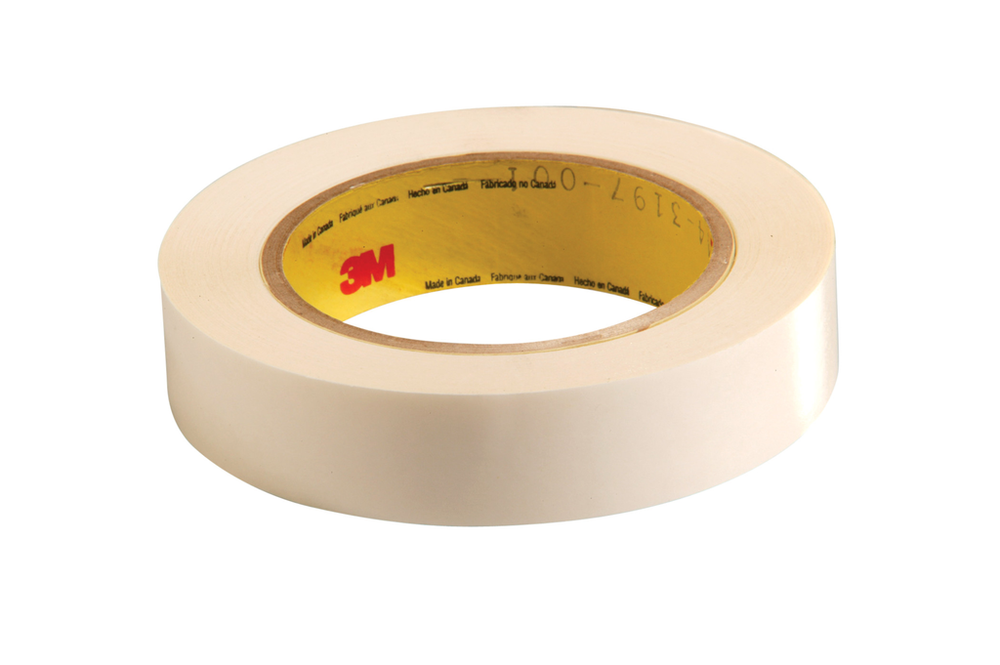

3M™ Double Coated Tape 444PC, Clear, 1 in x 36 yd, 3.9 mil, 36 Roll/Case - 7010334232

Sold As: 36-Pack
SKU: 7010334232
MPN: 7010334232
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200244001
3M ID: 70006178456
5 Digit UPC: 24400
$1,479.60 ($41.10 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 444PC features a medium-firm acrylic adhesive with good solvent resistance, ideal for joining materials that are relatively smooth, thin and have low residual stress. It provides excellent adhesion for plastics and polyethylene in demanding production environments. A thin, tough, polyester film carrier between the adhesive layers improves tape handling and strength.

Features

  • Excellent for foam and gasket attachment, HSE and LSE plastics such as polyethylene
  • 3M™ Adhesive 300 aggressively bonds to many surfaces, including plastics like polyethylene
  • 58# 4.2 mil Heavy polycoated kraft (PCK) liner provides moisture stability for large part converting
  • 0.5 mil PET film carrier adds dimensional stability and easier handling during slitting and die-cutting
  • Quick flowing adhesive delivers high initial adhesion for faster lamination
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)250.0
Backing (Carrier) Thickness (Metric)0.013
Master Size Width (Metric) UOMcm
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial)1.0
Tape TypeDouble Coated
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.099
Back Side Adhesive Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Master Size Length (Metric)98.8
Master Size Width (Metric)122.0
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)1.4
Overall Width (Imperial) UOMin
Primary Liner Thickness (Imperial) UOMmil
Master Size Length (Metric) UOMm
Overall Width (Metric)25.4
Face Side Adhesive Thickness (Metric)0.051
Maximum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial)3.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Imperial)2.0
Adhesive TypeHigh Performance Adhesive 300
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)3.9
Face Side Adhesive TypeHigh Strength Acrylic Adhesive 300
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.5
Carrier MaterialPolyester Film
Overall Thickness (Imperial)3.9
IndustriesAerospace, Appliance, Automotive, Construction, Converter Solutions, Craft, Electronics, Food and Beverage, General Industrial, Military and Government, Packaging, Paper, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation
Primary Liner Thickness (Metric)0.11
Carrier Thickness0.5
Carrier Thickness (Metric)0.013
Overall Length (Imperial) UOMyd
Carrier Thickness UOMmil
Core Size (Metric) UOMmm
Product ColorTransparent
Overall Length (Imperial)36.0
Product FormRoll
Primary Liner58# Polycoated Kraft Paper (PCK)
Units per Case36.0
Backing (Carrier) MaterialPolyester Film
Overall Length (Metric)32.91
Core Size (Metric)76.2
Overall Width (Metric) UOMmm
Carrier Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner ColorTan
Primary Liner Thickness (Imperial)4.2
