3M Products & Supplies

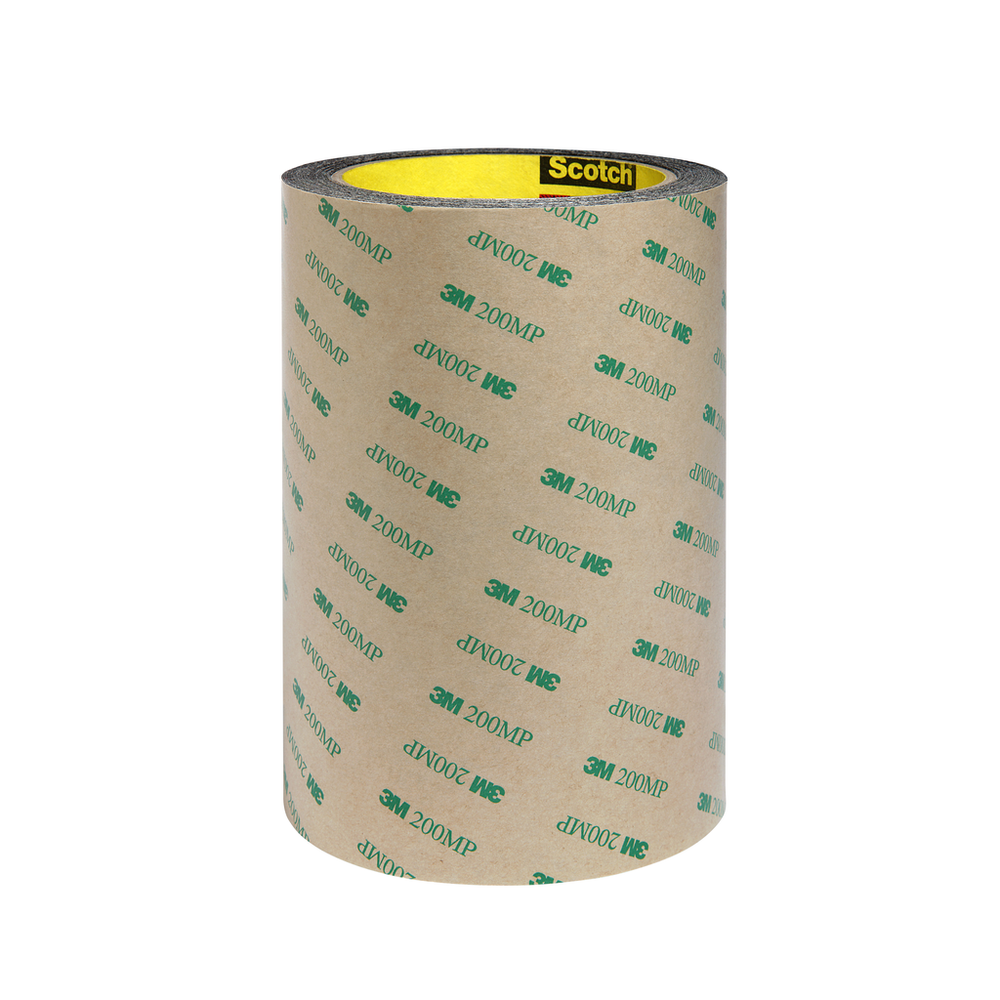

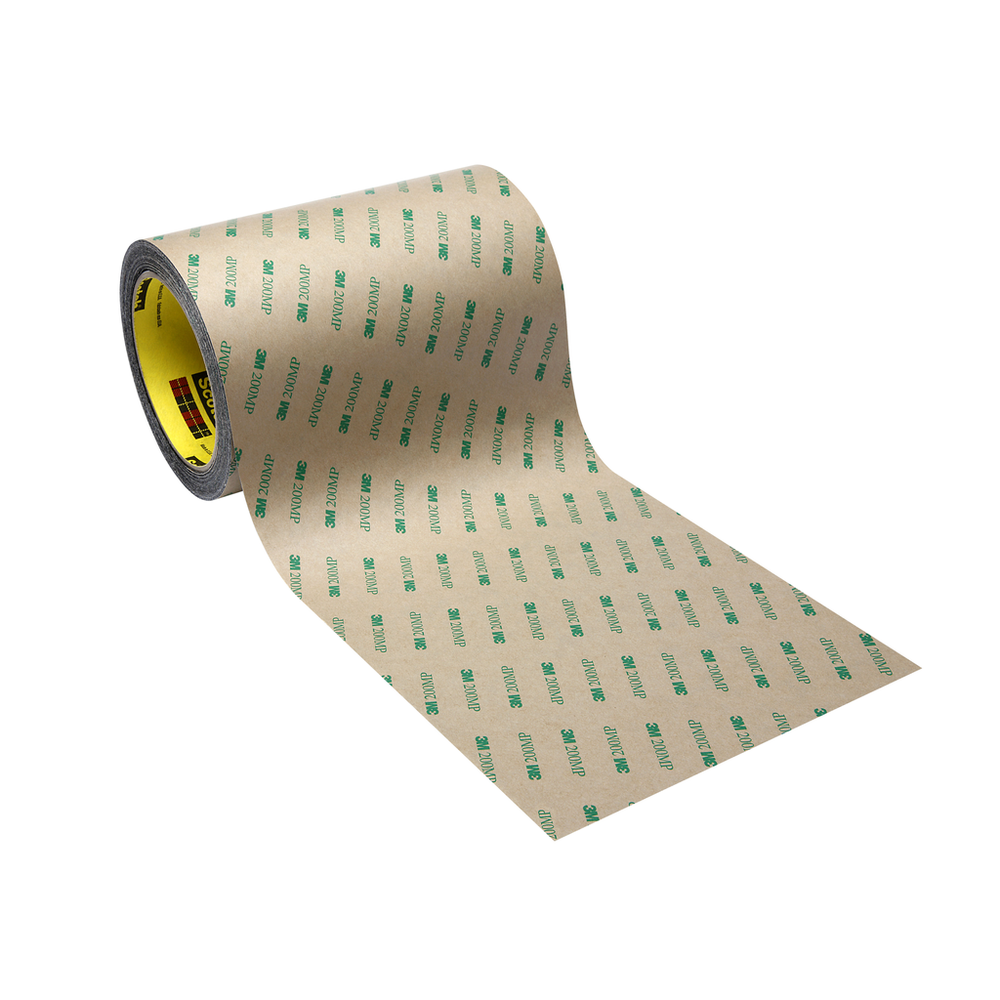

3M™ Double Coated Tape 9495MP Clear, 54 in x 180 yd, 5.7 mil, 1 Roll/Case - 7000048744

SKU: 7000048744
MPN: 7000048744
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200427503
3M ID: 70006219979
5 Digit UPC: 42750
$4,126.22 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9495MP provides high initial adhesion and good holding power on a variety of substrates. The thin, polyester film carrier offers dimensional stability and improved handling during slitting and die cutting.

Features

  • Withstands high humidity conditions with minimal cockling or wrinkling
  • Performs well in temperatures up to 300ºF/149ºC short term and 250ºF/121ºC long term
  • Adhesive 200MP provides exceptional temperature and chemical resistance for use in tough application environments
  • Thin 0.5 mils (.013 mm) clear polyester (PET) film carrier adds dimensional stability for improved handling
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)164.59
Backing (Carrier) MaterialPolyester
IndustriesElectronics
Overall Width (Metric) UOMmm
Product ColorTransparent
Total Tape Thickness without Liner (Metric)0.145
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Overall Length (Imperial)180.0
Overall Width (Imperial)54.0
Overall Width (Metric)1371.6
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.7
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
