3M Products & Supplies

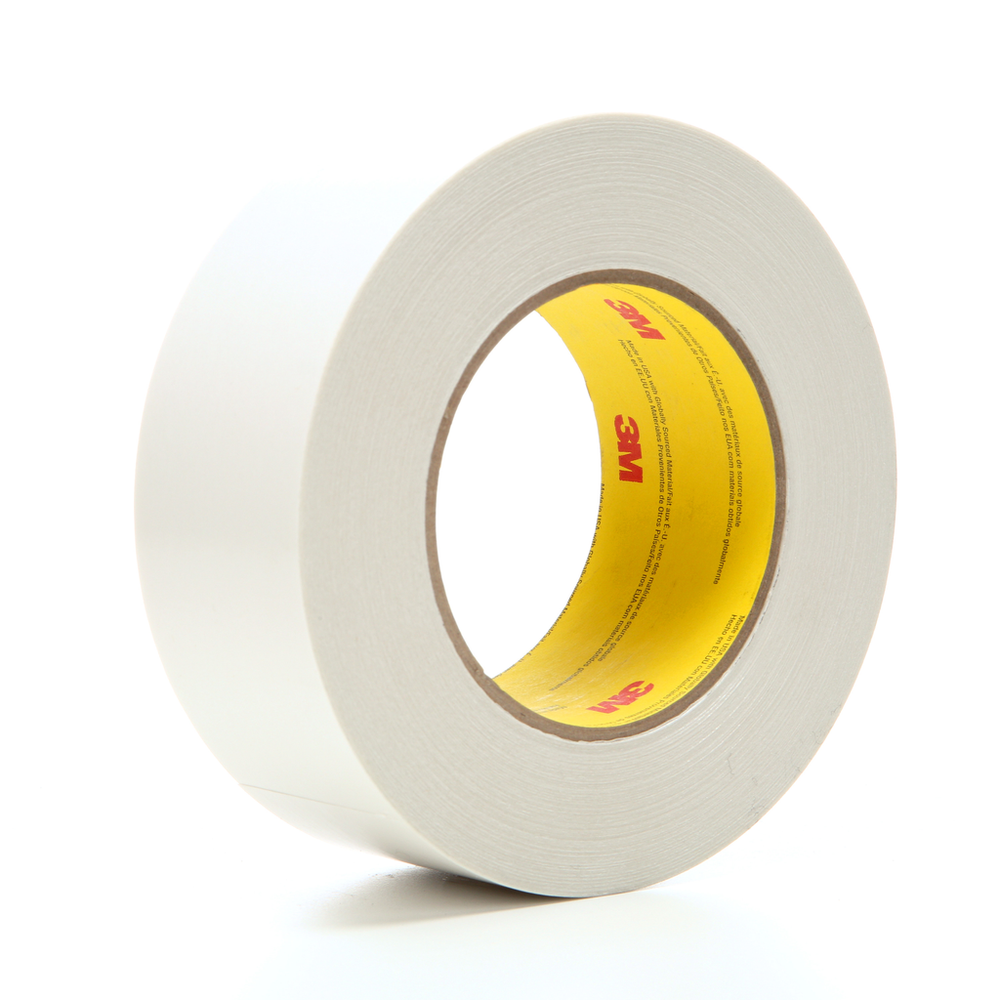

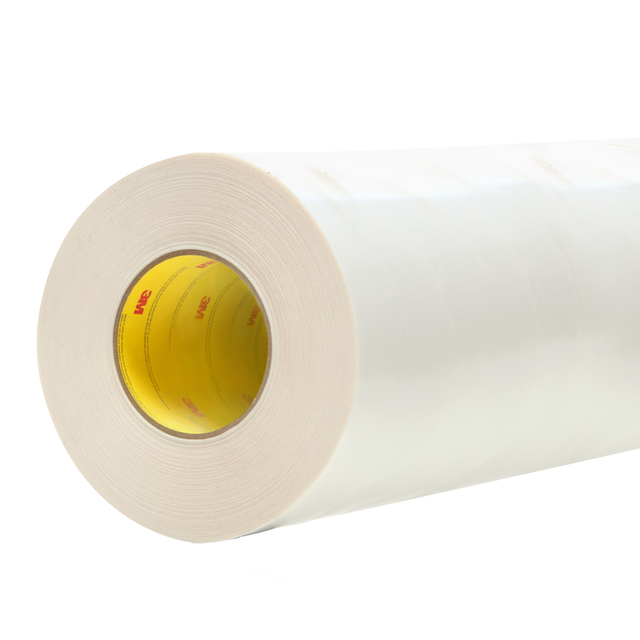

3M™ Double Coated Tape 9738, Clear, 54 in x 60 yd, 4.3 mil, 1 Roll/Case, Plastic Core - 7010374883

Sold As: 32-Pack
SKU: 7010374883
MPN: 7010374883
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115635861
3M ID: 70006735339
5 Digit UPC: 63586
$20,009.14 ($625.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9738 Red is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Available in red
  • Good moisture resistance to ensure performance in a variety of situations
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • High tack acrylic adhesive performs well across broad temperature range
  • Ideal performance in high speed splicing applications
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Product FormRoll
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMcm
Units per Case1.0
Total Tape Thickness without Liner (Metric)0.11
Maximum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness0.5
Carrier Thickness (Metric)0.013
Carrier Thickness (Metric) UOMmm
Overall Length (Imperial)60.0
Overall Width (Imperial)54.0
Backing (Carrier) Thickness (Imperial)1.3
Overall Length (Metric)54.86
ApplicationZero-Speed and General Splicing
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Carrier Thickness UOMmil
Overall Width (Metric)137.0
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.033
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner55# Densified Kraft Paper (DK)
Total Tape Thickness without Liner (Metric) UOMmm
Tape TypeDouble Coated
Carrier MaterialTissue
Overall Length (Metric) UOMm
Number of Adhesive SidesDouble-sided
Face Side Adhesive TypeAcrylic
Product ColorTransparent
Primary Liner ColorWhite
Backing (Carrier) MaterialTissue
Total Tape Thickness without Liner (Imperial)4.3
