3M Products & Supplies

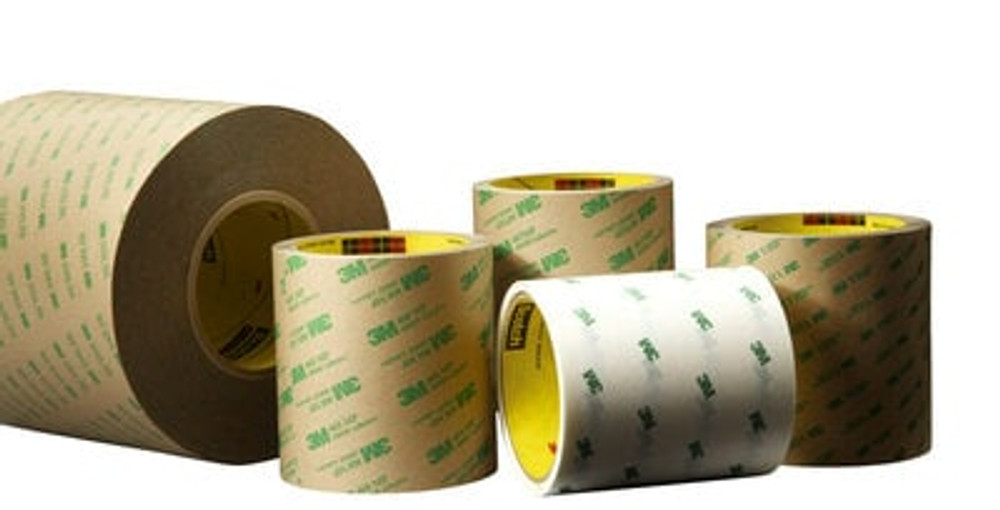

3M™ Double Coated Tape 9828PC, Clear, 54 in x 250 yd, 4 mil, 1 Roll/Case - 7010374030

SKU: 7010374030
MPN: 7010374030
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200462887
3M ID: 70-0062-9095-4
5 Digit UPC: 46288
$4,532.06 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9828PC features a thin film carrier and a medium-firm acrylic adhesive that works well on many plastics and foams. 3M™ Adhesive 340 provides good initial adhesion and holding power to a wide variety of materials including HSE plastics. The .5 mil polyester carrier adds dimensional stability and improved handling during slitting and die cutting operations.

Features

  • Adhesive on both sides supplies high initial adhesion and high tack to high surface energy (HSE) substrates
  • 74# polycoated kraft liner helps protect against moisture during storage
  • .5 mil clear polyester (PET) film carrier adds dimensional stability and improved handling
  • Medium-firm acrylic adhesive delivers good adhesion to many plastics and foams
  • Very thin alternative to glues for foam lamination and gasket attachment
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner74# Polycoated Kraft Paper (PCK)
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.5
Total Tape Thickness without Liner (Imperial)3.3
Face Side Adhesive Thickness (Metric)0.051
Carrier Thickness0.5
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Units per Case1.0
Master Size Width (Metric) UOMcm
Carrier Thickness UOMmil
Overall Length (Metric)228.6
Master Size Length (Metric) UOMm
Carrier Thickness (Metric) UOMmm
Overall Width (Imperial)54.0
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Imperial)1.5
Overall Width (Metric) UOMcm
Master Size Width (Metric)137.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.14
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) MaterialPolyester Film
Adhesive TypeAdhesive 340
Overall Length (Imperial)250.0
Master Size Length (Metric)164.6
Overall Length (Metric) UOMm
Product ColorTransparent
Overall Width (Metric)137.0
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial)3.0
Total Tape Thickness without Liner (Metric)0.084
Face Side Adhesive Thickness (Imperial)2.0
Overall Thickness (Imperial)3.3
Core Size (Metric)76.2
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial)5.6
Back Side Adhesive Thickness (Imperial) UOMmil
Core Size (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorWhite
Face Side Adhesive TypeHigh Tack Acrylic Adhesive 340
Core Size (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.013
Primary Liner Thickness (Imperial) UOMmil
Carrier Thickness (Metric)0.013
Maximum Operating Temperature (Fahrenheit)120.0
IndustriesAutomotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Retail
Product FormRoll
Carrier MaterialPolyester Film
