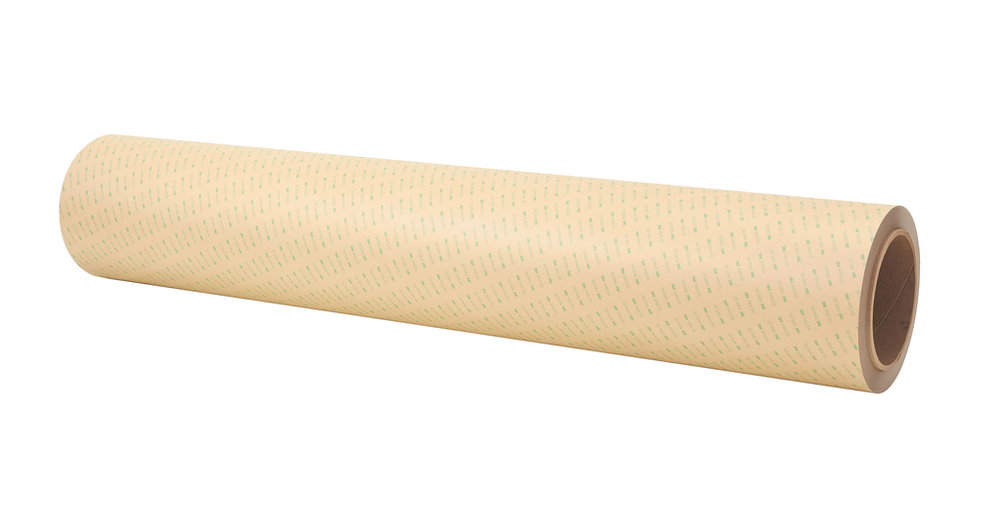

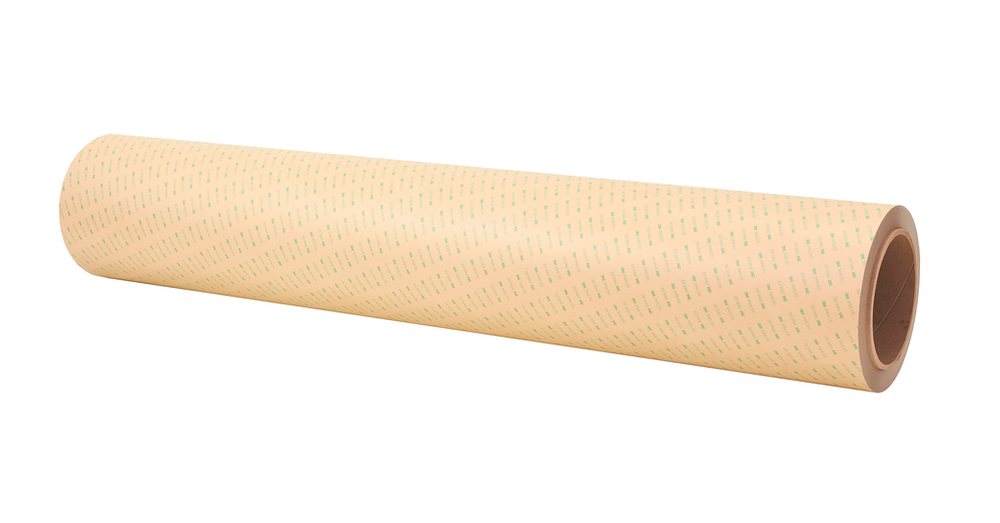

3M™ Double Coated Tape Double Linered 93005LE, Clear, 48 in x 60 yd, 2 mil, 1 roll per case - 7100048397

SKU: 7100048397
MPN: 7100048397
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 051115817410
3M ID: 70006765096
5 Digit UPC: 81741
$1,439.52 each
Hurry up! Current stock:

Product Description

Comprised of a polyester film backing with a layer of adhesive on each side, 3M™ Double Coated Tape 93005LE is a market proven, double coated transfer tape with good anti-lifting properties. This tape bonds well to similar and dissimilar materials including, metals, most plastics, glass, papers and painted surfaces.

Features

  • Meets a wide variety of automotive and OEM specifications
  • Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)
  • Ideal solution for general purpose attachment and assemblies of a wide variety of materials
  • High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates
  • Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
  • Adhesive provides excellent holding power and anti-lifting properties
  • Polyester film carrier provides dimensional stability to foams and other substrates to make tape easier to handle during slitting and die-cutting

Specifications

Total Tape Thickness without Liner (Metric)0.05 mm
Product FormRoll
Primary Liner Thickness (Metric)0.107 mm
Face Side Adhesive Type300LSE Acrylic
Overall Width (Metric)122 cm
Back Side Adhesive Thickness (Imperial)en-US: 0.75 mil
Primary Liner58# Polycoated Kraft Paper (PCK)
Product Number93005LE
Secondary Liner Thickness (Metric)0.157 mm
Backing (Carrier) Thickness (Imperial)0.5 mil
Color FamilyTransparent
Backing (Carrier) Thickness (Metric)0.012 mm
Face Side Adhesive Thickness (Metric)0.019 mm
Back Side Adhesive Thickness (Metric)en-US: 0.019 mm
Total Tape Thickness without Liner (Imperial)2 mil
Secondary LinerPolycoated Kraft
Face Side Adhesive Thickness (Imperial)0.75 mil
Overall Length (Imperial)60 yd
Product ColorTransparent
Back Side Adhesive Type300LSE Acrylic
Secondary Liner Thickness (Imperial)6.2 none
Backing (Carrier) MaterialPolyester
Overall Length (Metric)54.86 m
Backing MaterialPolyester
Primary Liner Thickness (Imperial)4.2 mil
Overall Width (Imperial)48 in
