3M Products & Supplies

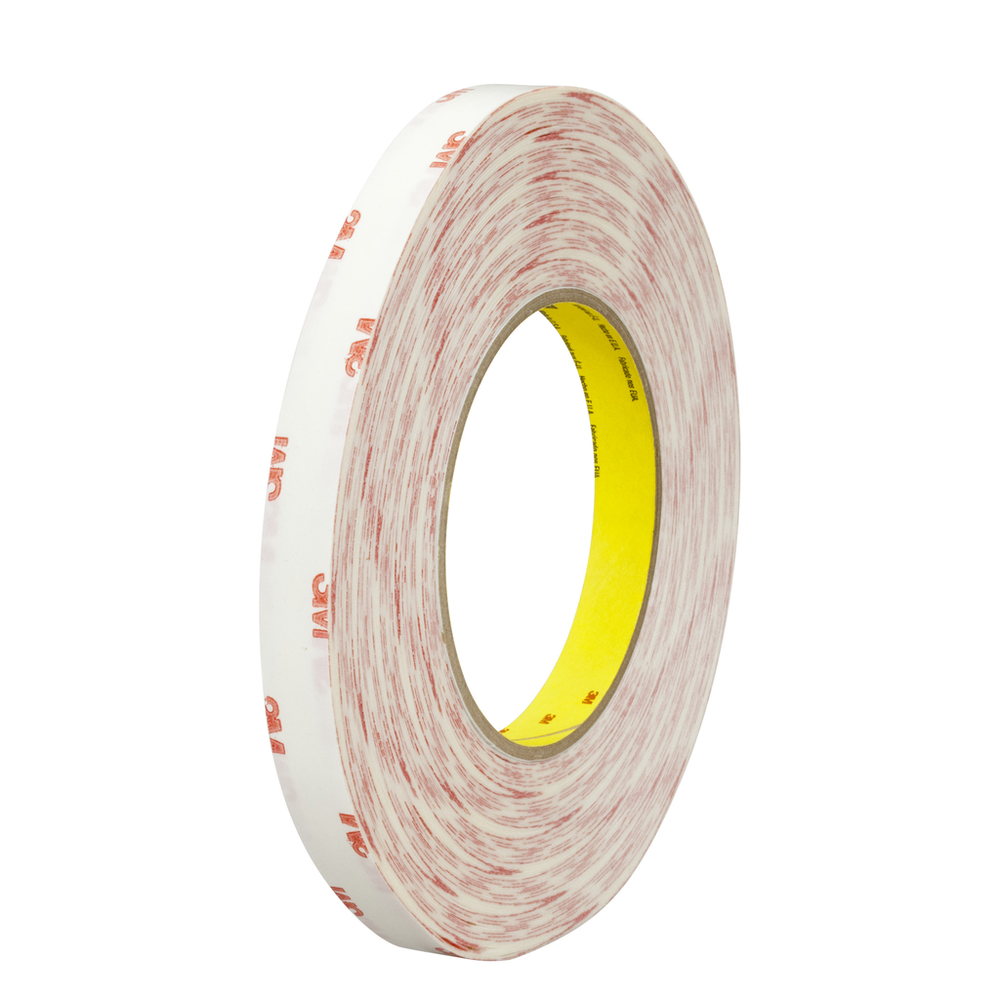

3M™ Double Coated Tissue Tape 9456, Clear, 1/2 in x 72 yd, 4 mil, 72 Roll/Case - 7010312376

Sold As: 72-Pack
SKU: 7010312376
MPN: 7010312376
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200406102
3M ID: 70006246733
5 Digit UPC: 40610
$1,675.84 ($23.28 / Count)
Hurry up! Current stock:

Product Description

3M Double Coated Tissue Tape 9456 is a high tack acrylic adhesive with good adhesion to many plastics and other high surface energy (HSE) materials. It can be used for end-tabbing, bonding fabric to rigid cardboard, attaching foam to plastics and closing chipboard mailers.

Features

  • Good temperature, chemical and humidity resistance
  • 55# densified kraft (DK) paper liner is compatible with rotary die cutting
  • Good adhesion to high surface energy (HSE) materials
  • Range of uses – joining and bonding in general industrial applications
  • 5 mil double coated tape with tissue carrier adds dimensional stability for handling
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner55# Densified Kraft Paper (DK)
Face Side Adhesive Thickness (Metric) UOMmm
IndustriesAutomotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Retail
Total Tape Thickness without Liner (Imperial)4.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)72.0
Face Side Adhesive Thickness (Metric)0.05
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.09
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Overall Length (Metric)65.83
Adhesive TypeAdhesive 340
Product ColorTransparent
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialTissue
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.0
Maximum Operating Temperature (Celsius)82.0
Back Side Adhesive Thickness (Metric)0.051
Units per Case72.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.1
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric)12.7
Maximum Operating Temperature (Fahrenheit)180.0
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial)0.5
Primary Liner ColorWhite
Face Side Adhesive Thickness (Imperial)2.0
Primary Liner Thickness (Imperial)3.5
