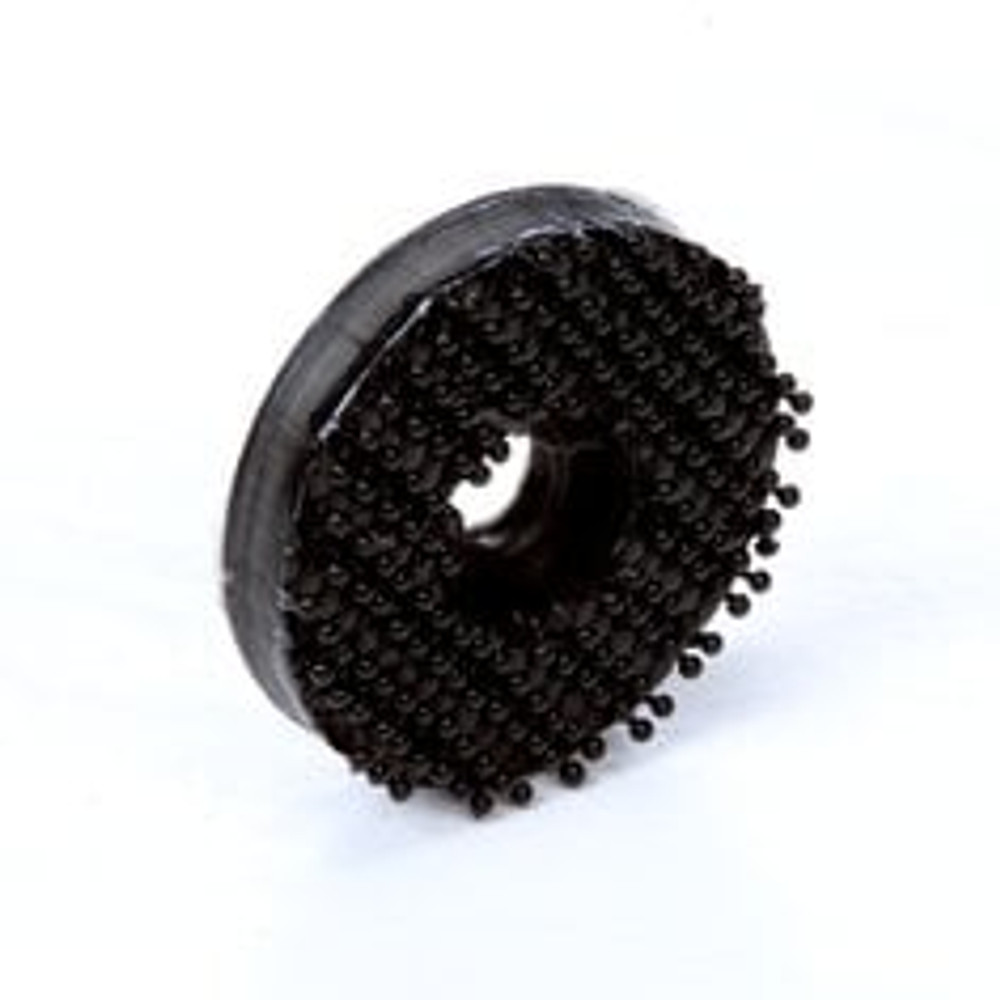

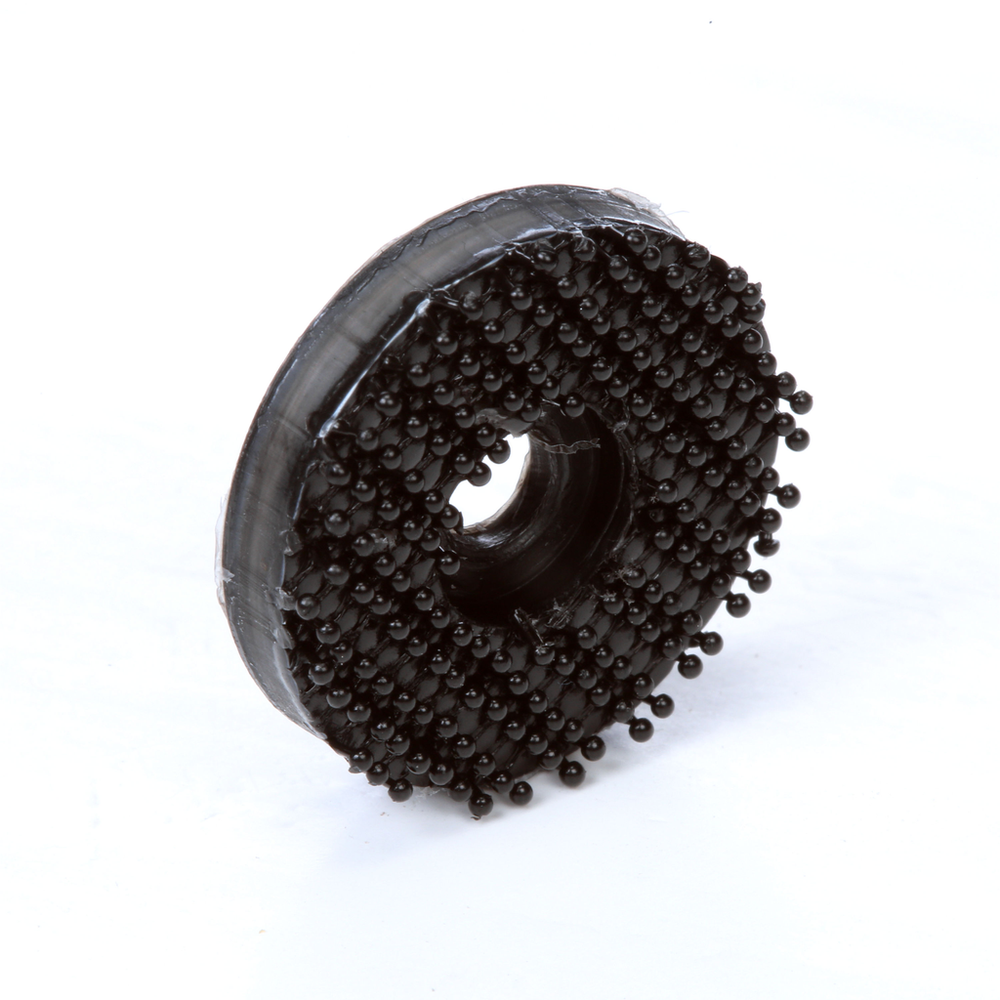

3M™ Dual Lock™ Reclosable Fastener SJ3463, Black, 13/16 in diameter with 0.16 in hole, Type 400, Case - 7100270266

SKU: 7100270266
MPN: 7100270266
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50068060001905
3M ID: 70007549374
$389.59 each
Hurry up! Current stock:

Product Description

3M™ Dual Lock™ Reclosable Fastener SJ3463 is designed to deliver a durable, reclosable fastening solution, which can be opened and closed multiple times. This circular piece part fastener is most commonly attached by counter-sunk head screws or with rivets, facilitating a flush fit for your mating parts.

Features

  • This hidden fastener provides a snug fit and smooth aesthetic appearance
  • Round 13/16 inch diameter piece part with a 0.16 inch counter sunk hole features a rigid polyolefin backing that allows for attachment with screws or rivets
  • Strong fastener secures with an audible snap, verifying closure
  • Black, interlocking mushroom-shaped heads (400 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
  • Mates with Type 170 or Type 250 stem densities to provide different strength combinations
  • Features good temperature resistance of 220°F (104°C)
Spec Sheet



Downloads

Specifications

IndustriesAutomotive, Construction, Electronics, Furniture, General Industrial, MRO, Medical, Military and Government, Packaging, Retail, Signage, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Product FormPiece Part
Overall Length (Metric) UOMmm
Country of OriginUnited States
Closure Life1000.0
Flame RetardantNo
Overall Width (Metric)20.57
Overall Width (Imperial)0.81
Maximum Operating Temperature (Fahrenheit) UOMDegree
Piece Parts TypeDie-Cut
Fastening Area UOMin²
Units per Case1000.0
Hole TypeRound
Maximum Operating Temperature (Celsius)104.0
Roll Goods TypeRigid Back
Stem Density400.0
Product ColorBlack
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)220.0
Overall Length (Imperial)0.81
Engaged Thickness (Imperial) UOMin
Good For OutdoorsYes
Backing (Carrier) MaterialPolyolefin
Overall Width (Metric) UOMmm
Overall Length (Metric)20.6
Adhesive TypeNon-adhesive
Indoor/OutdoorIndoor/Outdoor
Engaged Thickness (Metric) UOMmm
