3M Products & Supplies

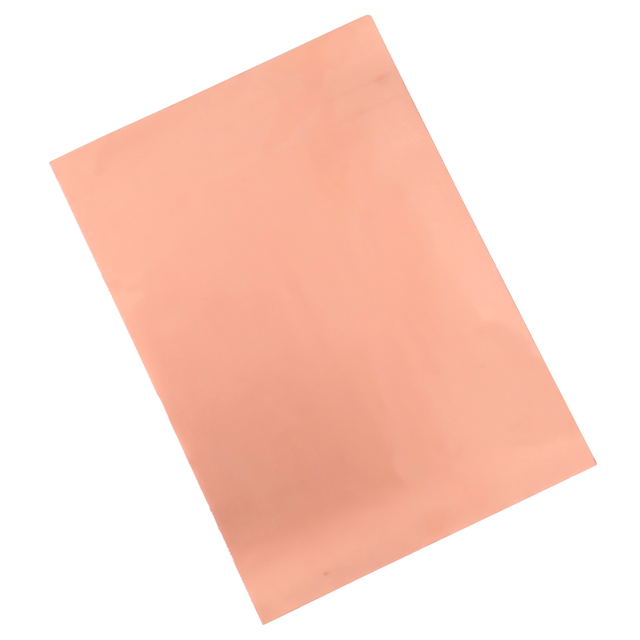

3M™ Electrically Conductive Single-sided Tape 3304BC-S, 100 mm x 10 m, 8 Rolls/Case - 7100313412

SKU: 7100313412
MPN: 7100313412
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060428417
3M ID: 80001605064
$84.77 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 3304BC-S is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This copper shielding tape has an acrylic nickel/copper-coated conductive nonwoven carrier. It has high electrical conductivity, which provides low resistance for reliable contact to small grounding areas. The electrical contact points throughout the adhesive surface enhance the physical properties of this copper tape for improved workability. It has excellent edge conformability and a scratch-resistant black copper foil. Enjoy robust protection against EMI in a range of market segments, including general electronics, consumer electronics, automotive, communications infrastructure, medical equipment, and aerospace and defense electronics.

Features

  • Excellent EMI/ESD performance and electrical performance over time
  • Scratch-resistant black copper foil
  • Excellent conformability and edge conformance
  • High shielding effectiveness
  • Isotropic XYZ-axis conductivity through the adhesive
  • Electrical contact on small areas
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Total Tape Thickness without Liner (Imperial)1.8
Liner MaterialPET
Total Tape Thickness without Liner (Metric)0.045
Adhesive TypeAcrylic
Overall Width (Metric)100.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)10.0
Backing (Carrier) MaterialCopper Foil
Adhesion Strength (Imperial)1300.0
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationEMI Shielding; Electrostatic Discharge (ESD); Passive Intermodulation (PIM) Management
Overall Length (Imperial)10.936
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Product ColorBlack
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Imperial)3.937
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Printed Circuit Boards; Sensors
Electrical ResistanceXY-axis 0.05 Ω
