3M Products & Supplies

3M™ Electronic Marking System (EMS) Warning Tape 7904-XT, Green, 6 in, WWater, 500 ft, 1 Roll/Case - 7100254505

SKU: 7100254505
MPN: 7100254505
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50051144063739
3M ID: 80000232183
5 Digit UPC: 6373
$2,515.45 each
Hurry up! Current stock:

Product Description

3M™ Electronic Marking System (EMS) Warning Tape 7900-XT Series is an intuitive and virtually maintenance-free solution for marking and locating the path of buried assets that helps eliminate the problems and costs associated with tracer wire and test stations — especially excelling in environments with the challenges of complex terrain and congested underground systems, with the added benefit of a high-strength core material for early warning during excavation. Thanks to the embedded 3M™ EMS Point Marker's frequency dedicated for each type of utility, this tape helps to quickly and easily locate underground utility networks — with no need for access points. Its design also helps ensure accurate location when damaged and does not require metallic continuity for locating, as a locatable signal is provided by 3M™ EMS Point Markers embedded in the tape every eight feet that are activated using a 3M™ Dynatel™ Locators 7000X Series. Choose 3M™ Electronic Marking System (EMS) Warning Tape 7900-XT Series for a fast, easy, and reliable solution that provides accurate and consistent results — even in the most demanding conditions.

Features

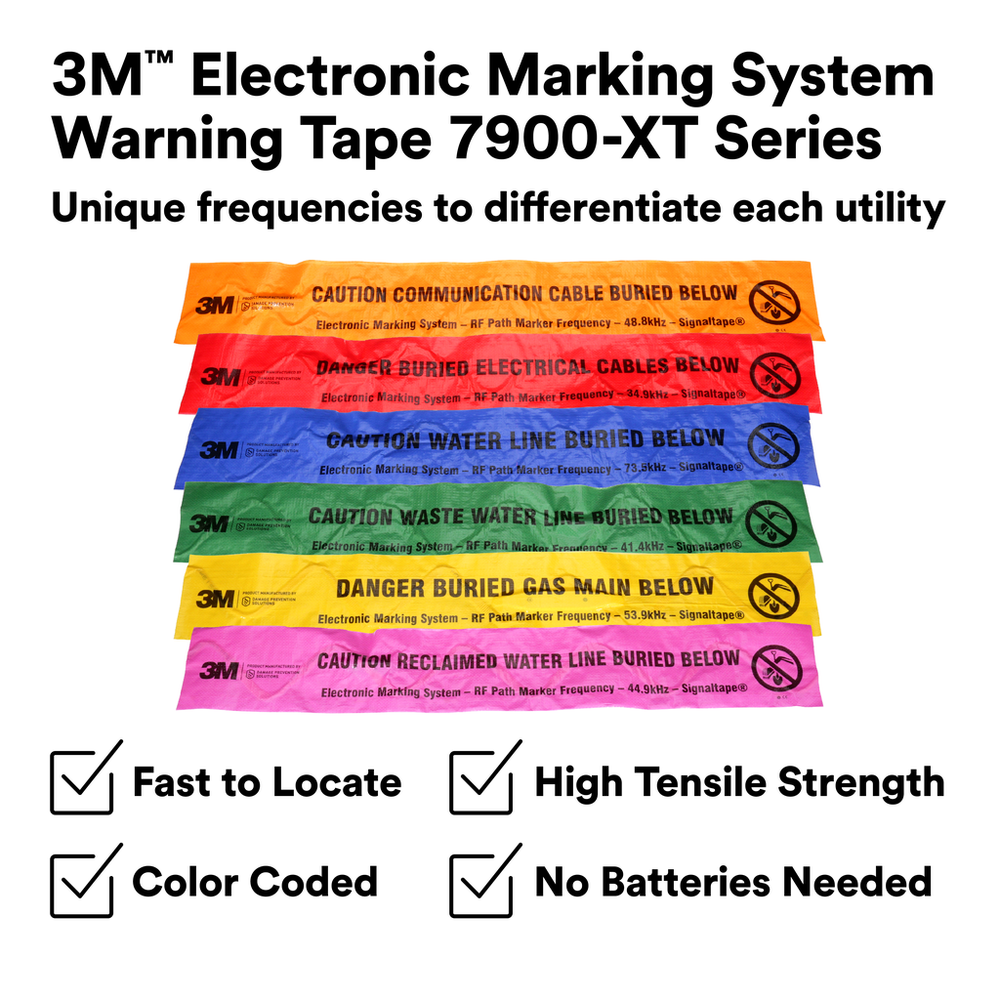

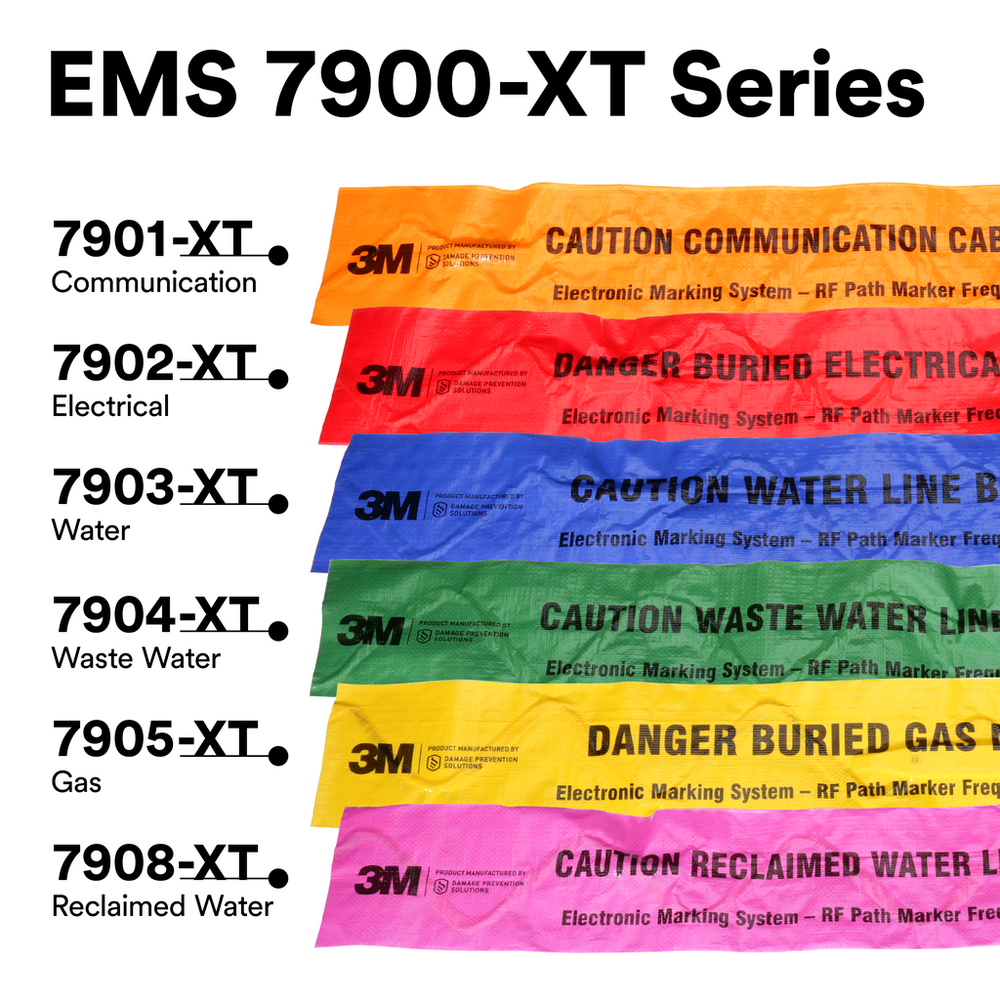

  • Color-coded for each utility buried asset type
  • Can be installed near or above buried assets, creating a detectable, easy-to-follow path above ground

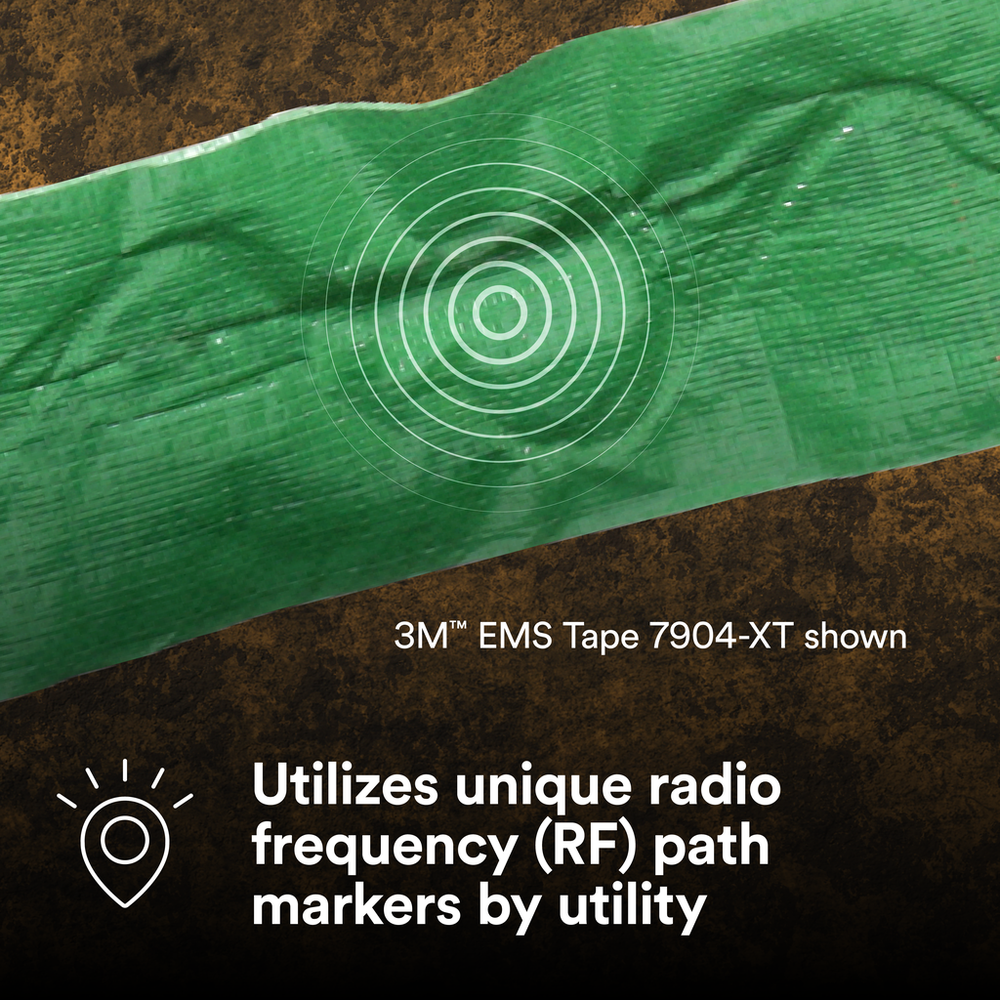

  • Utilizes distinct radio frequency (RF) path markers with unique frequencies for each utility type

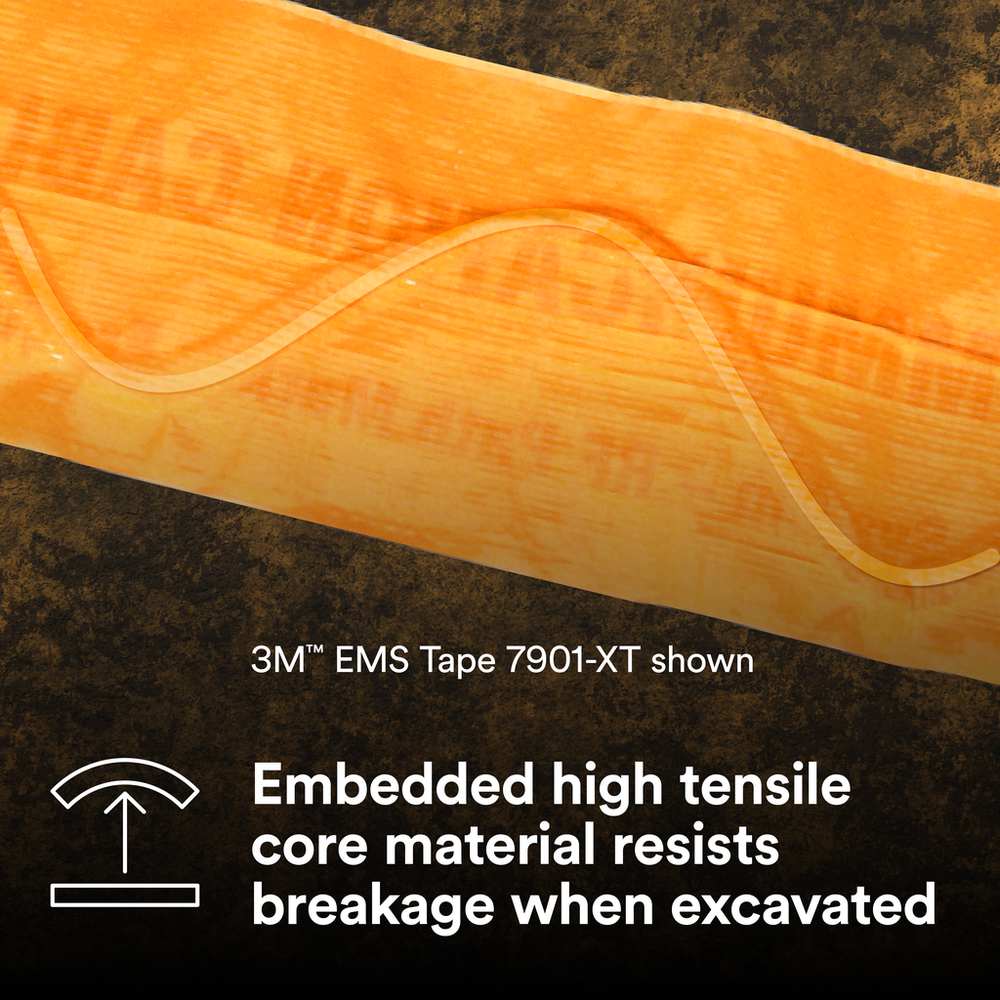

  • Uses a high-strength core material for an early warning during excavation

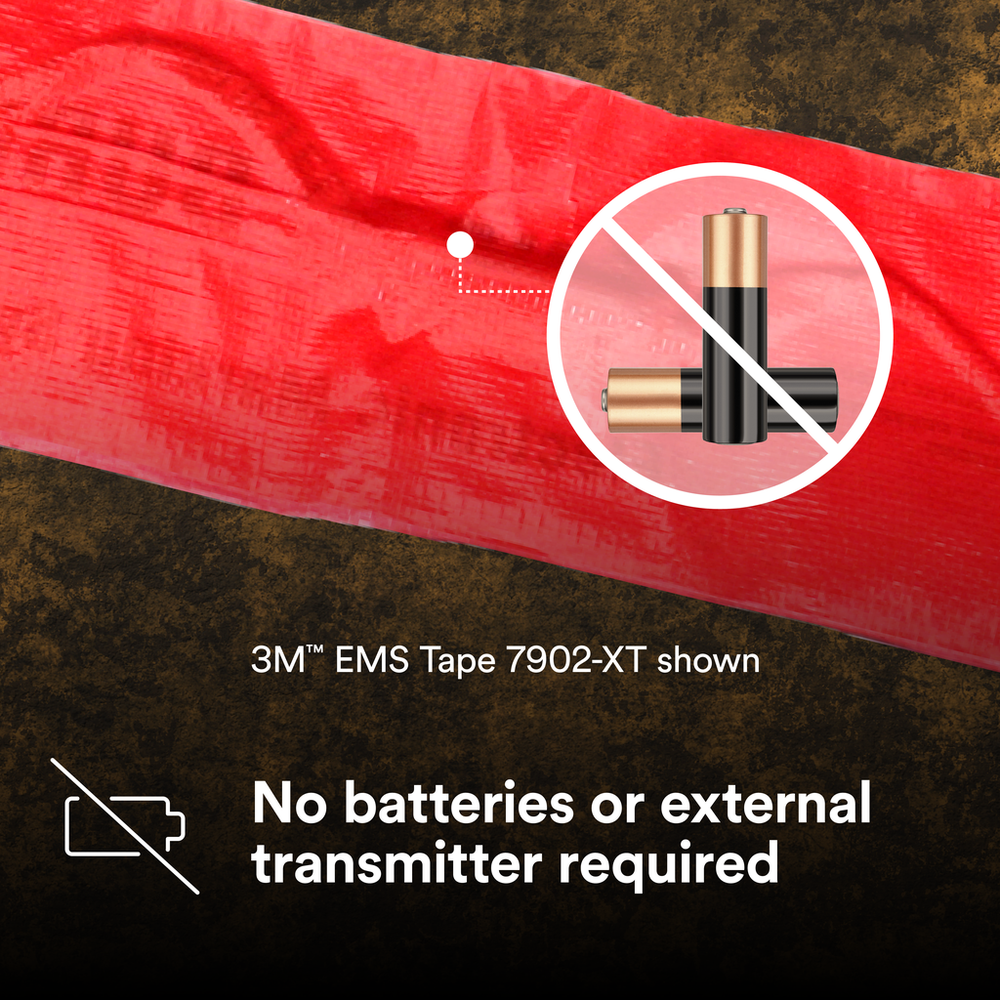

  • Does not require batteries and eliminates the need to hook up an external transmitter

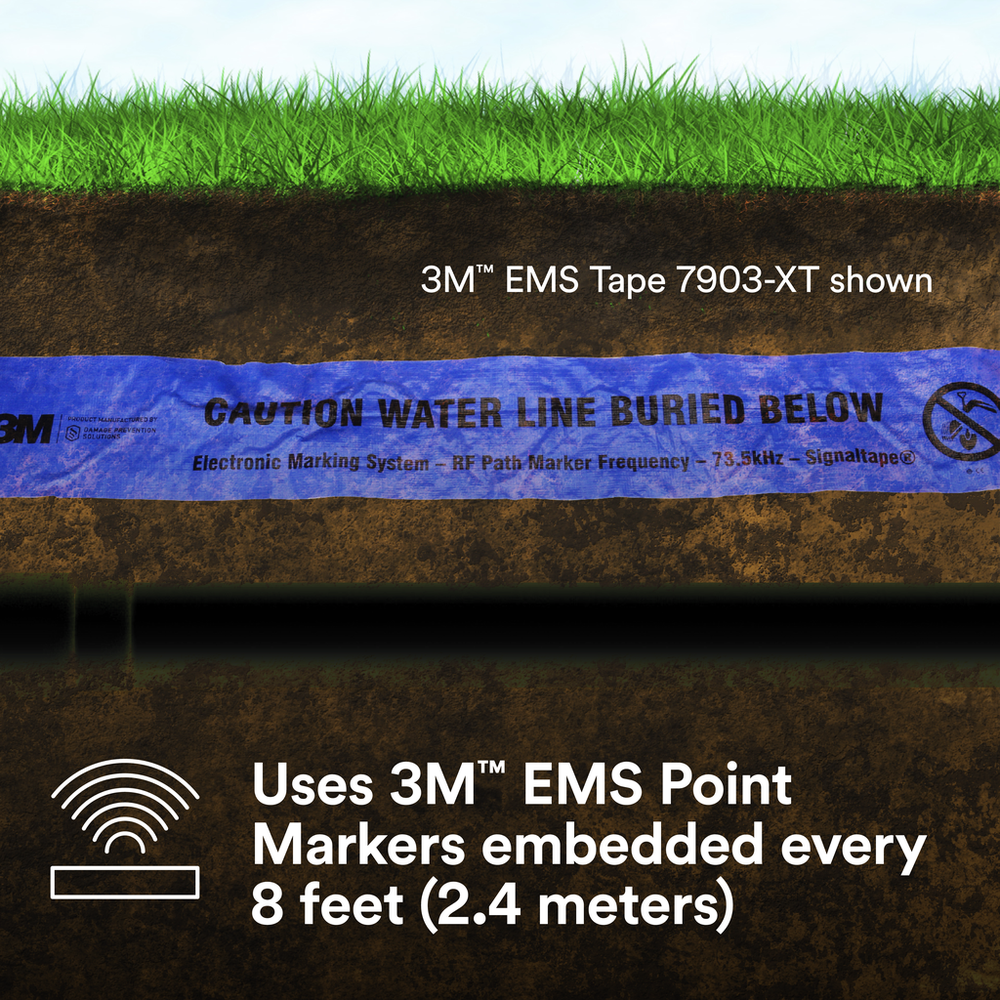

  • Fast to locate thanks to 3M™ EMS Point Markers embedded in the tape every eight feet providing a locatable signal — no need for access points or metallic continuity
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Overall Length (Imperial) UOMft
Marker TypePath Marking Tape
Overall Width (Imperial) UOMin
Application/IndustryWastewater
Overall Width (Metric)152.4
Overall Width (Metric) UOMmm
Product ColorGreen
Overall Length (Metric)150.0
Overall Width (Imperial)6.0
Utility TypeWastewater
Overall Length (Imperial)500.0
Overall Length (Metric) UOMm
Marker FunctionPassive
Maximum Burial Depth4 feet (1.2 m)
