3M Products & Supplies

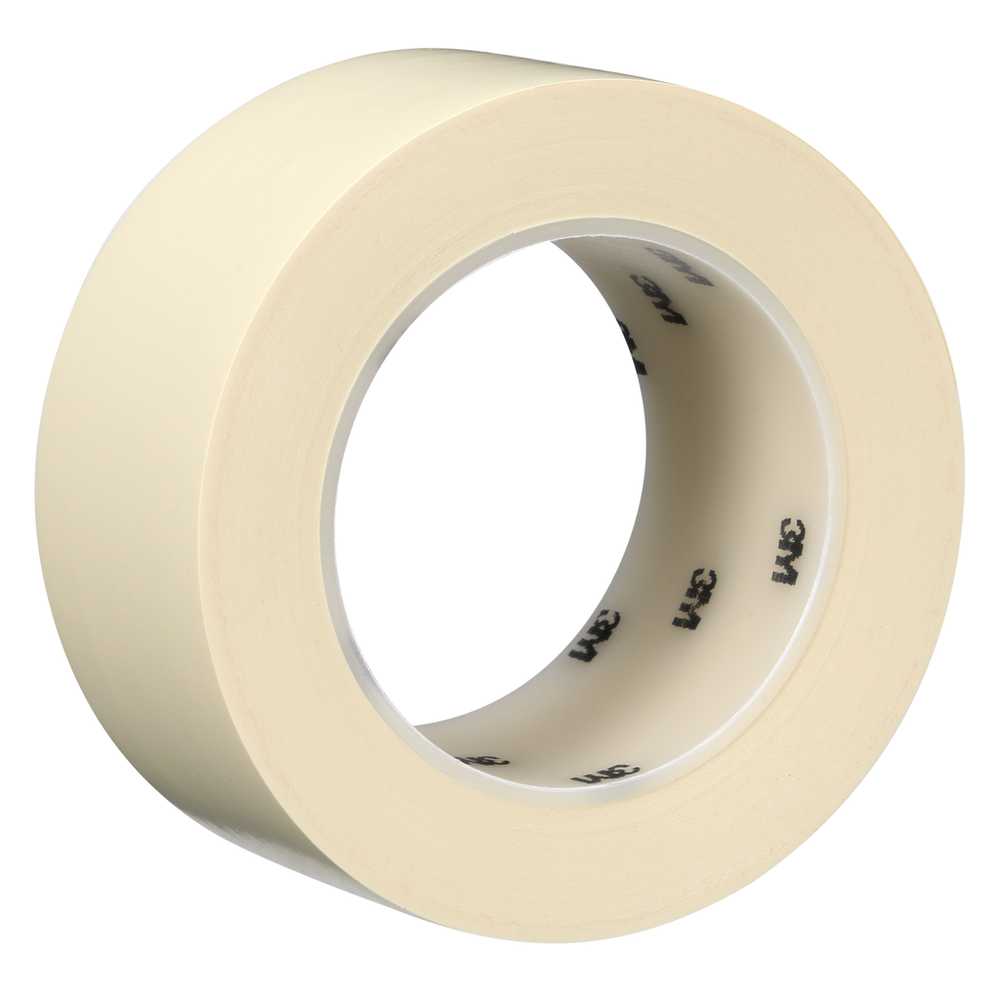

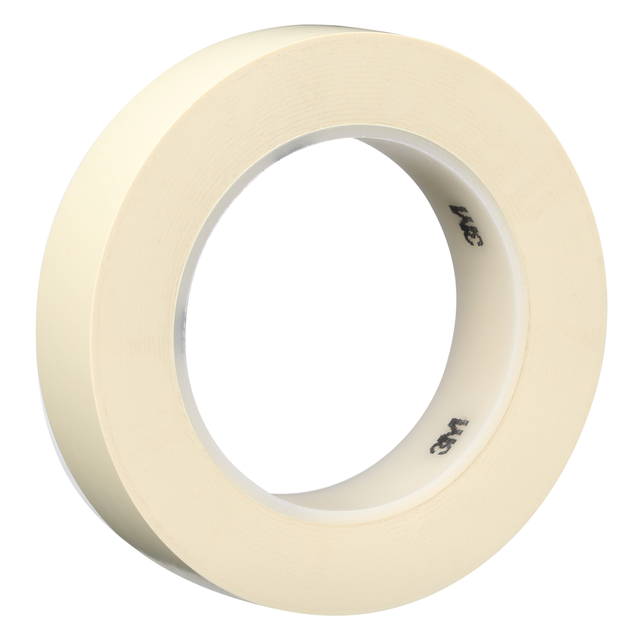

3M™ Electroplating Tape 470, Tan, 3 in x 36 yd, 7.1 mil, 12 Roll/Case - 7000123471

Sold As: 12-Pack
SKU: 7000123471
MPN: 7000123471
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200876769
3M ID: 70006140308
5 Digit UPC: 87676
$1,140.76 ($95.06 / Count)
Hurry up! Current stock:

Product Description

For tape applications requiring resistance to most chemicals used in electroplating and anodizing processes, use our 3M™ Electroplating Tape 470. This tan, conformable tape features an abrasion resistant backing ideal for use with plating chemicals, anodizing chemicals, milling, etching and peening operations.

Features

  • Resists most common solvents and works at temperatures up to 121°C/250°F
  • Conformable backing is ideal for use on curved and irregular surfaces
  • Excellent resistance to most chemicals used in typical electroplating and anodizing operations
  • This version of 470 has no liner
  • Abrasion, moisture and wear resistant to withstand rugged working conditions
  • Rubber adhesive provides excellent holding strength on many surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.18
IndustriesAerospace, Automotive, General Industrial, MRO, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Overall Thickness (Metric)0.18
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing MaterialVinyl
Adhesion Strength (Metric) UOMN/cm
Maximum Operating Temperature (Celsius)121.0
Adhesion Strength37.0
Backing (Carrier) MaterialVinyl
Overall Thickness (Imperial)7.1
Product FormRoll
Overall Width (Metric)76.2
Backing Thickness (Metric)0.16
Overall Width (Metric) UOMmm
Adhesive TypeRubber
Tensile Strength (Imperial)20.0
Tensile Strength (Metric) UOMN/cm
Backing Thickness (Imperial)6.3
Backing Thickness (Imperial) UOMmil
Tensile Strength (Metric)35.0
Backing Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)7.1
Overall Width (Imperial)3.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
ApplicationAerospace; Electroplating and Anodizing Processes; General Industrial; Metalworking; Military & Government; Sealing
Total Tape Thickness without Liner (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Overall Thickness (Metric) UOMmm
Elongation at Break180%
Maximum Operating Temperature (Fahrenheit)250.0
Adhesion Strength (Metric)4.0
Minimum Operating Temperature (Fahrenheit)40.0
Product ColorTan
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)4.0
