3M Products & Supplies

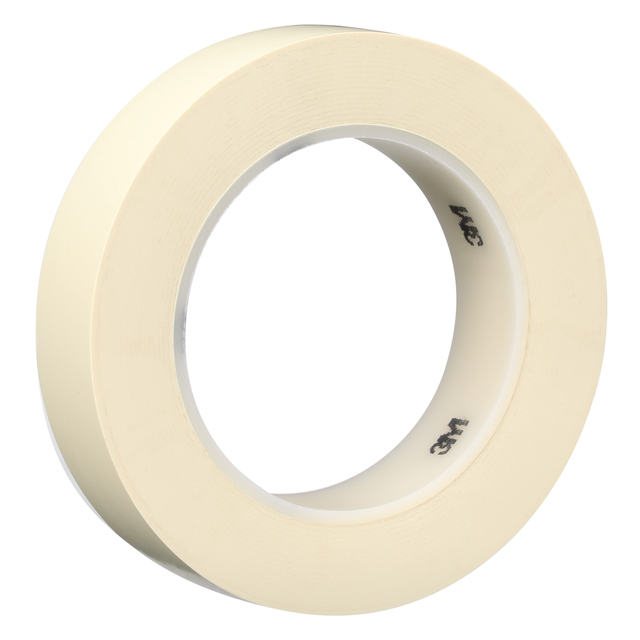

3M™ Electroplating Tape 470, Tan, 48 in x 36 yd, 7.1 mil, Paper Core, 1 Roll/Case - 7100301296

SKU: 7100301296
MPN: 7100301296
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060004666
3M ID: 70007550638
$1,448.81 each
Hurry up! Current stock:

Product Description

For tape applications requiring resistance to most chemicals used in electroplating and anodizing processes, use our 3M™ Electroplating Tape 470. This tan, conformable tape features an abrasion resistant backing ideal for use with plating chemicals, anodizing chemicals, milling, etching and peening operations.

Features

  • Abrasion, moisture and wear resistant to withstand rugged working conditions
  • This version of 470 has no liner
  • Excellent resistance to most chemicals used in typical electroplating and anodizing operations
  • Rubber adhesive provides excellent holding strength on many surfaces
  • Conformable backing is ideal for use on curved and irregular surfaces
  • Resists most common solvents and works at temperatures up to 121°C/250°F
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.18
Maximum Operating Temperature (Celsius)121.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/cm
Product FormRoll
Tensile Strength (Imperial)20.0
Elongation at Break180%
Overall Width (Imperial) UOMin
Overall Width (Metric)1219.2
Total Tape Thickness without Liner (Imperial)7.1
Adhesive TypeRubber
ApplicationAerospace; Electroplating and Anodizing Processes; General Industrial; Metalworking; Military & Government; Sealing
Backing Thickness (Imperial)6.3
Tensile Strength (Metric)35.0
Adhesion Strength (Metric) UOMN/cm
Backing Thickness (Metric)0.16
IndustriesAerospace, Automotive, General Industrial, MRO, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) MaterialVinyl
Backing MaterialVinyl
Backing Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Product ColorTan
Overall Thickness (Imperial) UOMmil
Overall Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)4.0
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength37.0
Overall Thickness (Imperial)7.1
Overall Width (Imperial)48.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)40.0
Adhesion Strength (Metric)4.0
Overall Thickness (Metric)0.18
