3M Products & Supplies

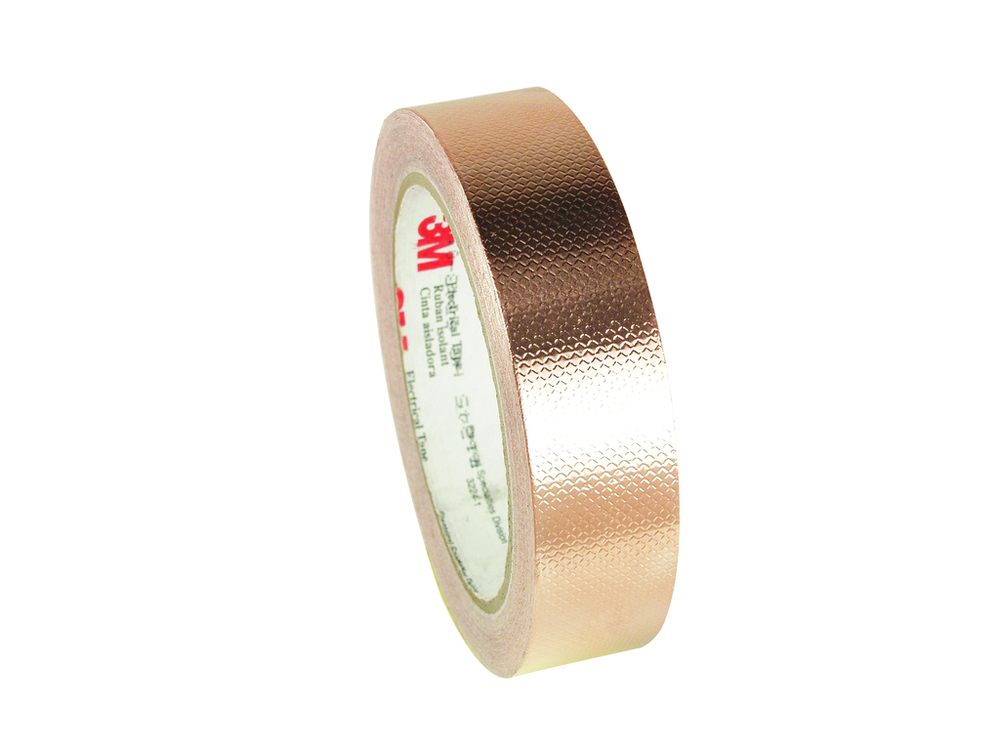

3M™ Embossed Copper Foil EMI Shielding Tape 1245, 23 in x 18 yd, 3 in Paper Core, 1 Roll/Case - 7010292289

SKU: 7010292289
MPN: 7010292289
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128609361
3M ID: 80-6116-1261-7
5 Digit UPC: 60936
$1,363.60 each
Hurry up! Current stock:

Product Description

3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • UL Listed and RoHS 2011/65/EU Compliant
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Comes on a removable liner for easy die-cutting and handling
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Offers stable contact resistance and good shielding effectiveness
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorCopper
Tensile Strength (Metric) UOMN/cm
Tape GradeProfessional
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric)0.101
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.1016
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Backing (Carrier) Thickness (Imperial)4.0
Backing (Carrier) MaterialCopper Foil, Embossed
Overall Width (Imperial)23.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)584.2
Overall Width (Imperial) UOMin
MaterialEmbossed Copper Foil
Backing (Carrier) Thickness (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric)44.0
