3M Products & Supplies

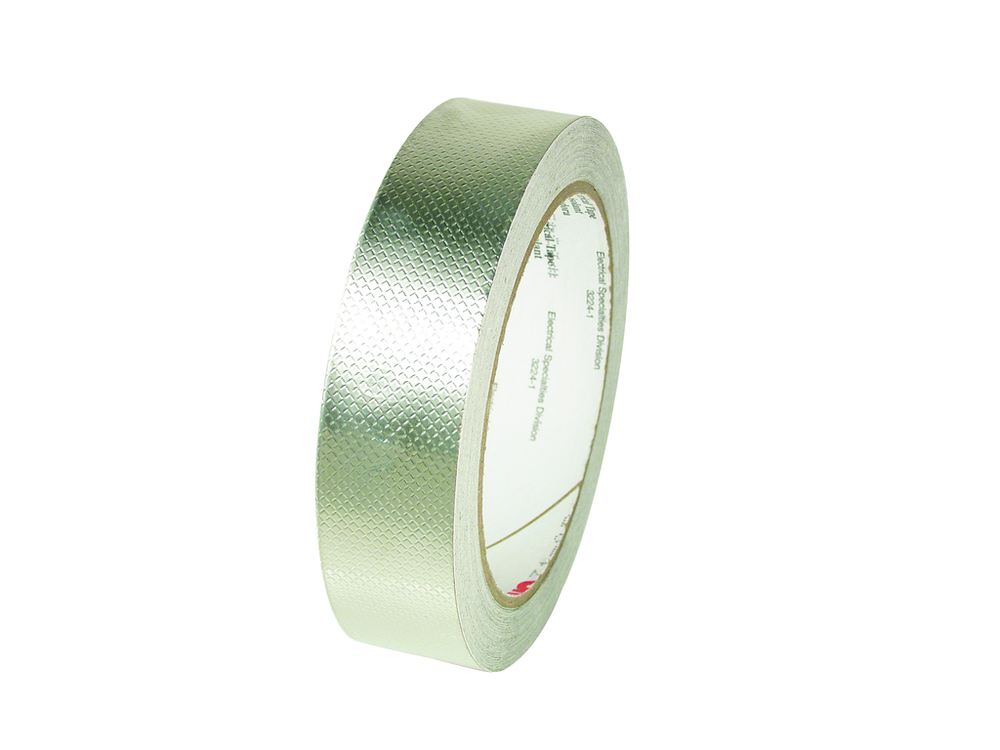

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 1/4 in x 18 yd, 3 in Paper Core, 36 Rolls/Case - 7010350297

Sold As: 36-Pack
SKU: 7010350297
MPN: 7010350297
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138498450
3M ID: 80610884225
5 Digit UPC: 49845
$859.55 ($23.88 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Offers stable contact resistance and good shielding effectiveness
  • Offers outstanding solderability with tin-plated coating
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Embossed, copper foil backing resists discoloration and oxidation
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
ApplicationShielding
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Overall Width (Imperial)0.25
Overall Width (Metric) UOMmm
Product ColorTin
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric) UOMmm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Tape GradeProfessional
Maximum Operating Temperature (Celsius)130.0
Overall Length (Imperial)18.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.04
Elongation at Break100
Product MarketsElectrical Equipment Manufacturing
Overall Length (Metric)16.5
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
MaterialEmbossed Tin Plated Copper Foil
Tensile Strength (Metric)44.0
Total Tape Thickness without Liner (Metric)0.1016
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) Thickness (Imperial)1.6
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)6.35
Total Tape Thickness without Liner (Metric) UOMmm
