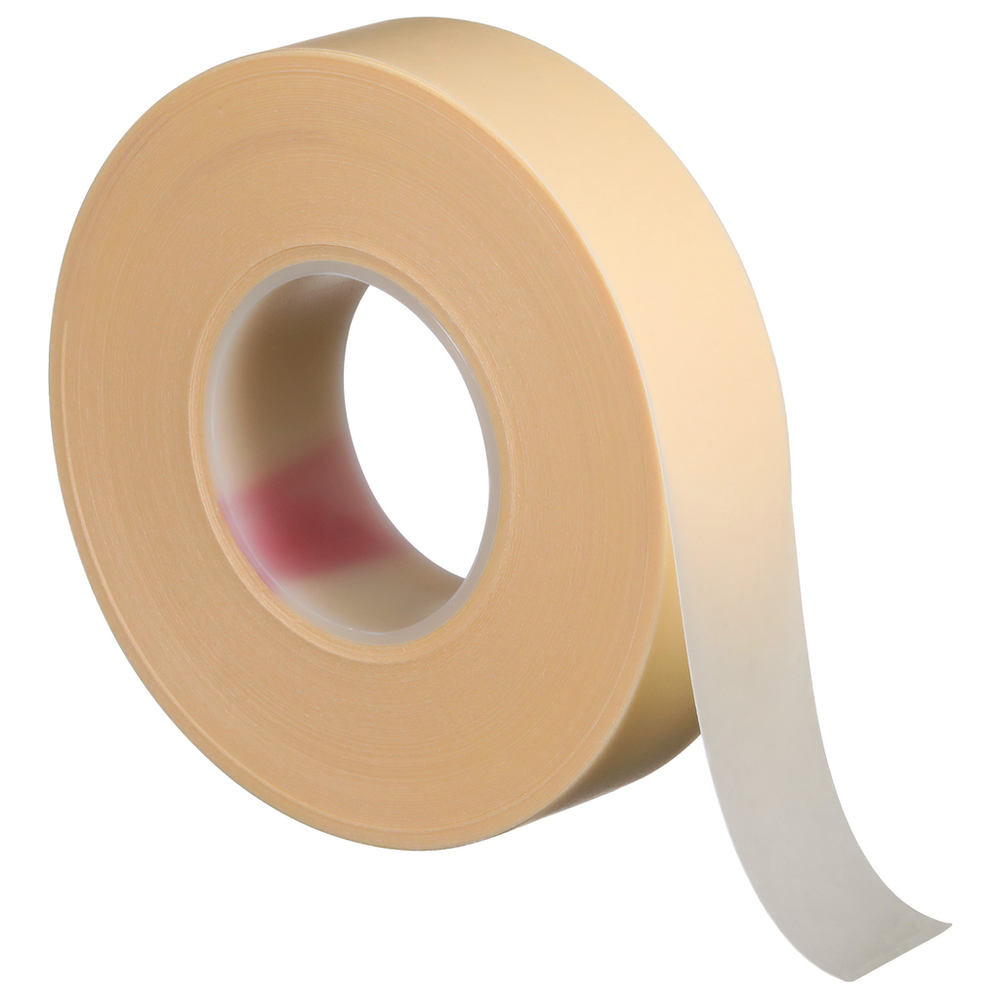

3M™ Expandable Slot Liner ESL-TC190FS-015-US, 41mm x 400m, 1 Roll / Case - 7100326377

SKU: 7100326377
MPN: 7100326377
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060577023
3M ID: 80000237877
$1,653.66 each
Hurry up! Current stock:

Product Description

3M™ Expandable Slot Liner ESL-TC190 is an electric motor slot insulation made from a core polyester film layer with a built-in, expandable, thermosetting adhesive and porous cover layers applied to both sides. It eliminates the need for subsequent, time-intensive impregnating resin application.

Features

  • Higher thermal conductivity version for wherever greater heat transfer is required, e.g. high-performance or indirect-cooled motors
  • Helps improve electric motor manufacturing efficiency and throughput (Test report available upon request)
  • For motors that use shaped or formed windings
  • Utilizes current automatic slot insulation insertion process and equipment
  • Electrically isolates, mechanically protects, and securely holds the coils
  • Helps OEMs eliminate costly and time-intensive impregnating resin application process (Test report available upon request)

Downloads

Specifications

Overall Width (Metric) UOMmm
Overall Length (Imperial)437.445
Overall Width (Imperial)1.614
Overall Width (Metric)41.0
ApplicationMotor/Generator
Overall Length (Imperial) UOMyd
Country of OriginUnited States
Overall Width (Imperial) UOMin
