3M Products & Supplies

3M™ Female Disconnect, Vinyl Insulated Butted Seam 22-18 AWG, 94804, 71F-250-32-P - 7010397402

Sold As: 10-Pack
SKU: 7010397402
MPN: 7010397402
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007948049
3M ID: 80611253040
MPN: 94804
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

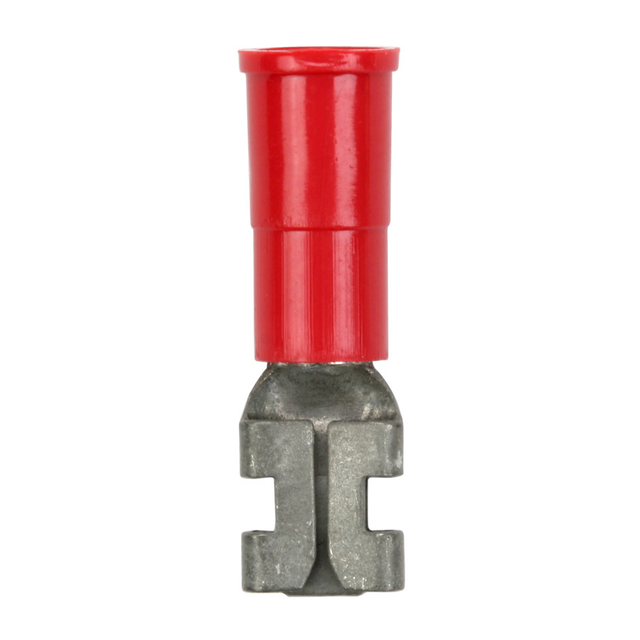

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Terminal TypeDisconnect
Connection Width (Imperial) UOMin
Disconnect TypeFemale
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric) UOMmm
Connection Width (Metric)6.35
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
Country of OriginUnited States
Connection Width (Imperial)0.25
Minimum Conductor Size (Metric).34 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
