3M™ Fire Barrier Duct Wrap 615+, 48 in x 25 ft, 1 Roll/Case - 7100004463

Name: 3M™ Fire Barrier Duct Wrap 615+, 48 in x 25 ft, 1 Roll/Case - 7100004463
Brand: 3M Products & Supplies
SKU: 7100004463
Price: 618.18 USD
Availability: InStock

SKU: 7100004463

MPN: 7100004463

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051115549069

3M ID: 98040056131

5 Digit UPC: 54906

$618.18 each

Hurry up! Current stock:

Quantity:

Product Description

At a Glance

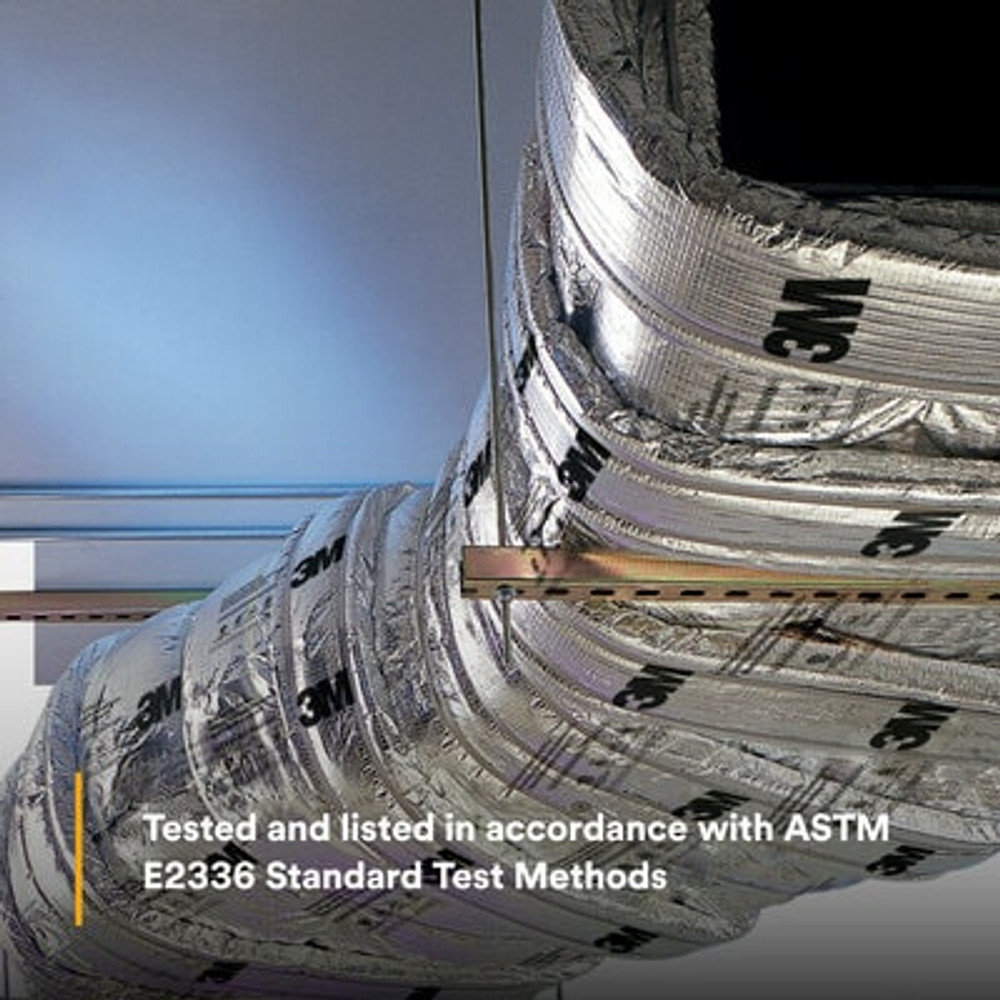

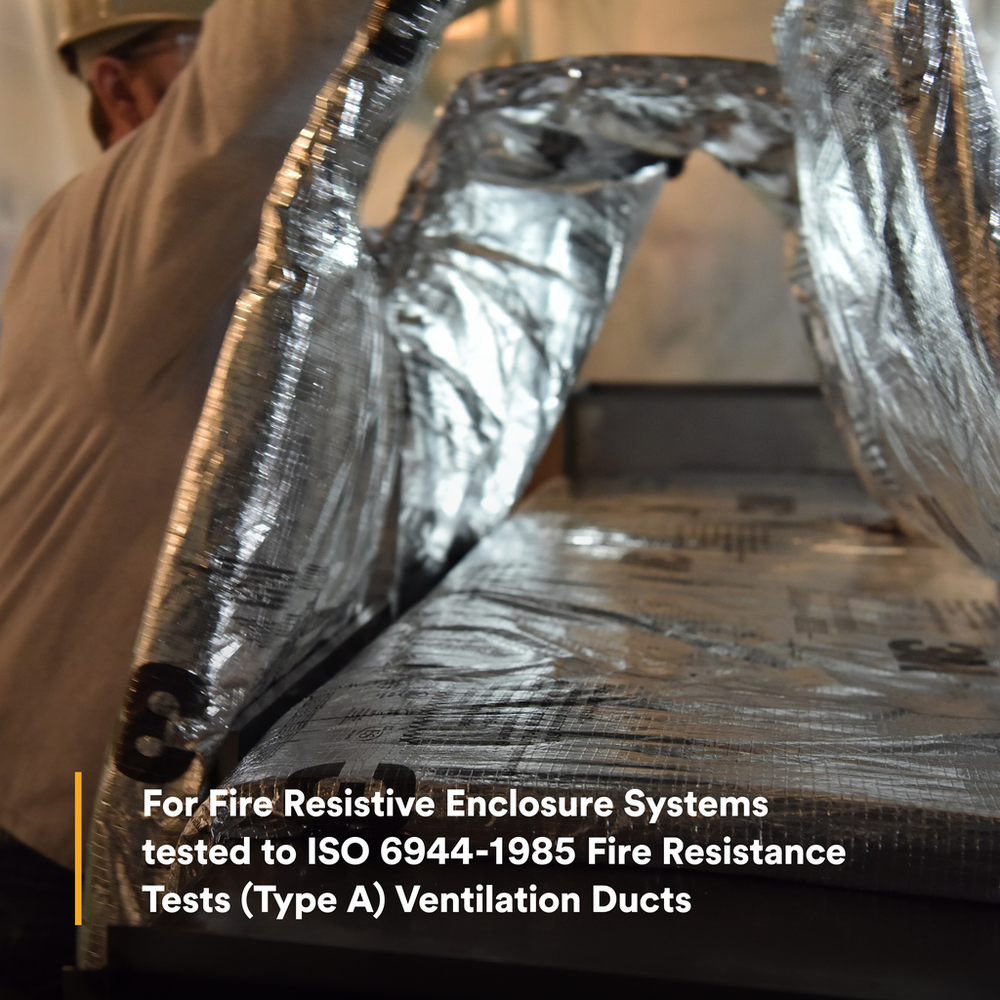

3M Fire Barrier Duct Wrap 615+ is a thin, flexible fire-resistive wrap for commercial kitchen grease ducts and ventilation ducts. It's a space-saving alternative to building a 1- or 2-hour rated gypsum shaft enclosure around the duct.

Best for

Commercial kitchen grease duct enclosures
Ventilation and air ducts that need a fire rating
Tight spaces where a gypsum shaft won't fit

Specifications

Fire rating	Up to 2 hours
Clearance to combustibles	Zero, throughout the enclosure system
Grease duct install	2 layers, inner layer butted
Roll size	48 in x 25 ft
Color	Silver
Pack	1 roll per case

FAQ

How many layers do I need? It depends on the duct type and the rating you need. Grease duct systems typically use 2 layers. Always follow the listed system design and 3M's installation instructions, and confirm with the local inspector.

Why use a wrap instead of a shaft enclosure? A wrap is lighter, thinner and faster to install, and it frees up space around the duct.

Shop more fire protection wraps and mats.

Thin, lightweight and flexible, 3M™ Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts.

Features

Proven alternative to 1- and 2-hour fire resistant rated shaft enclosures for grease ducts
Butted inner layer in 2-layer grease duct applications
Lightweight and thin, for ease of installation and space saving, while allowing custom installation applications with multiple layers where needed
Zero clearance to combustible throughout the entire enclosure system

Downloads

Specifications

Country of Origin	Mexico
Overall Length (Imperial) UOM	ft
Overall Width (Imperial)	48.0
Fire Rating	Up to 2 Hour
Application	Commercial Construction
Overall Width (Imperial) UOM	in
Product Color	Silver
Product Type	Duct Wrap
Overall Length (Imperial)	25.0
Overall Length (Metric) UOM	m
Overall Width (Metric)	121.92
Water-tight	No
Overall Width (Metric) UOM	cm
Overall Length (Metric)	7.62
