3M Products & Supplies

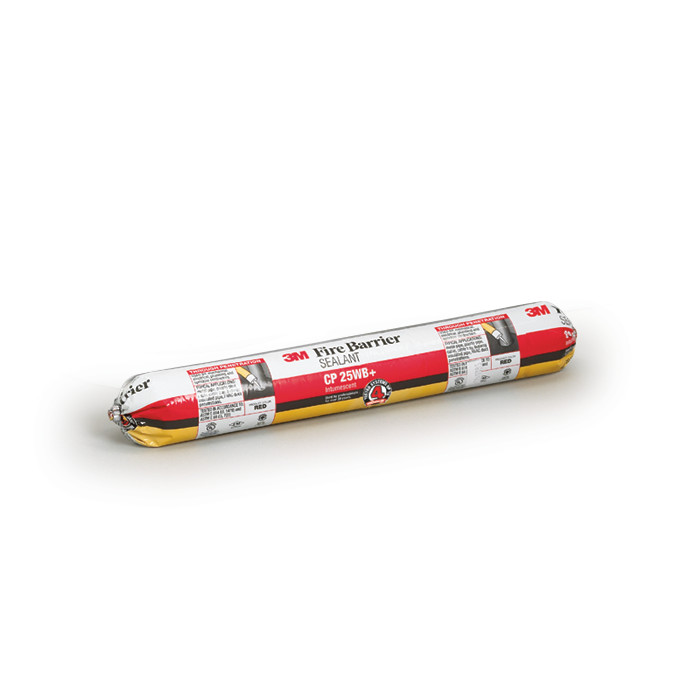

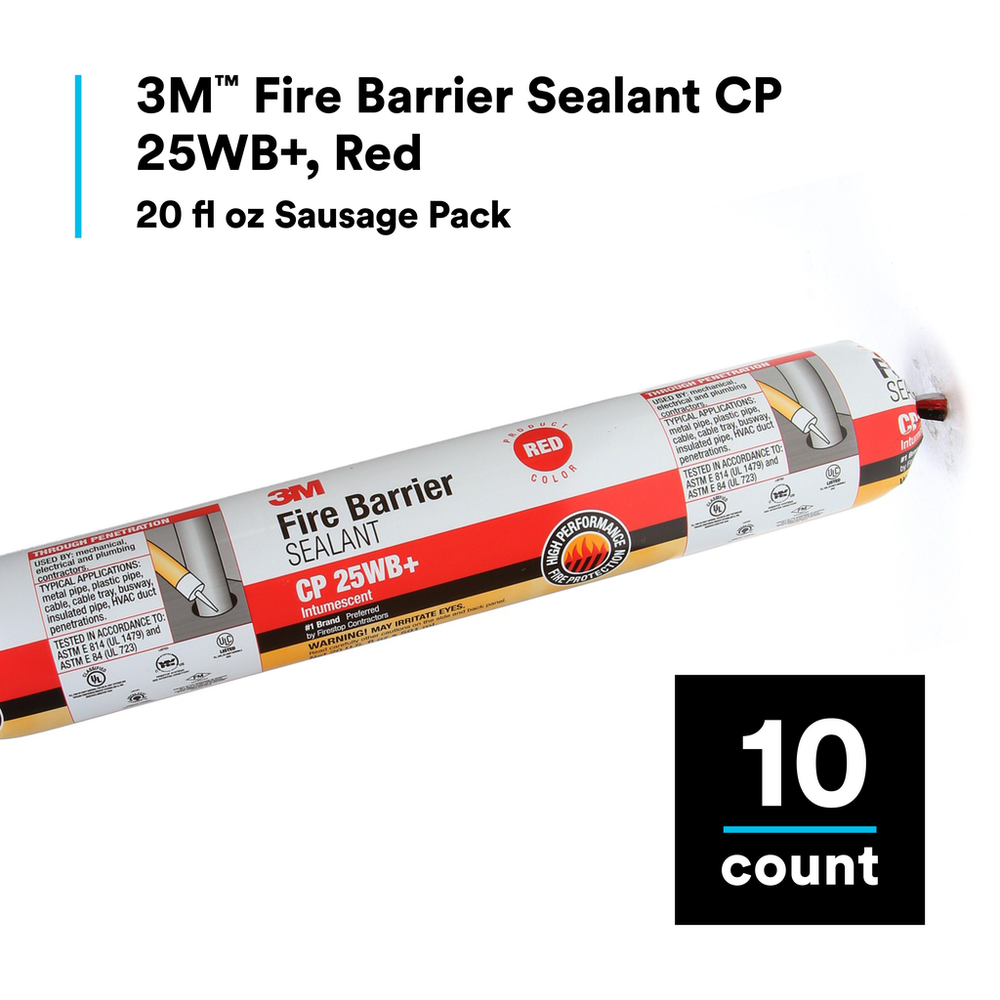

3M™ Fire Barrier Sealant CP 25WB+, Red, 20 fl oz Sausage Pack, 10/case - 7000145569

Sold As: 10-Pack
SKU: 7000145569
MPN: 7000145569
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115116421
3M ID: 98040053831
5 Digit UPC: 11642
$188.62 ($18.86 / Count)
Hurry up! Current stock:

Product Description

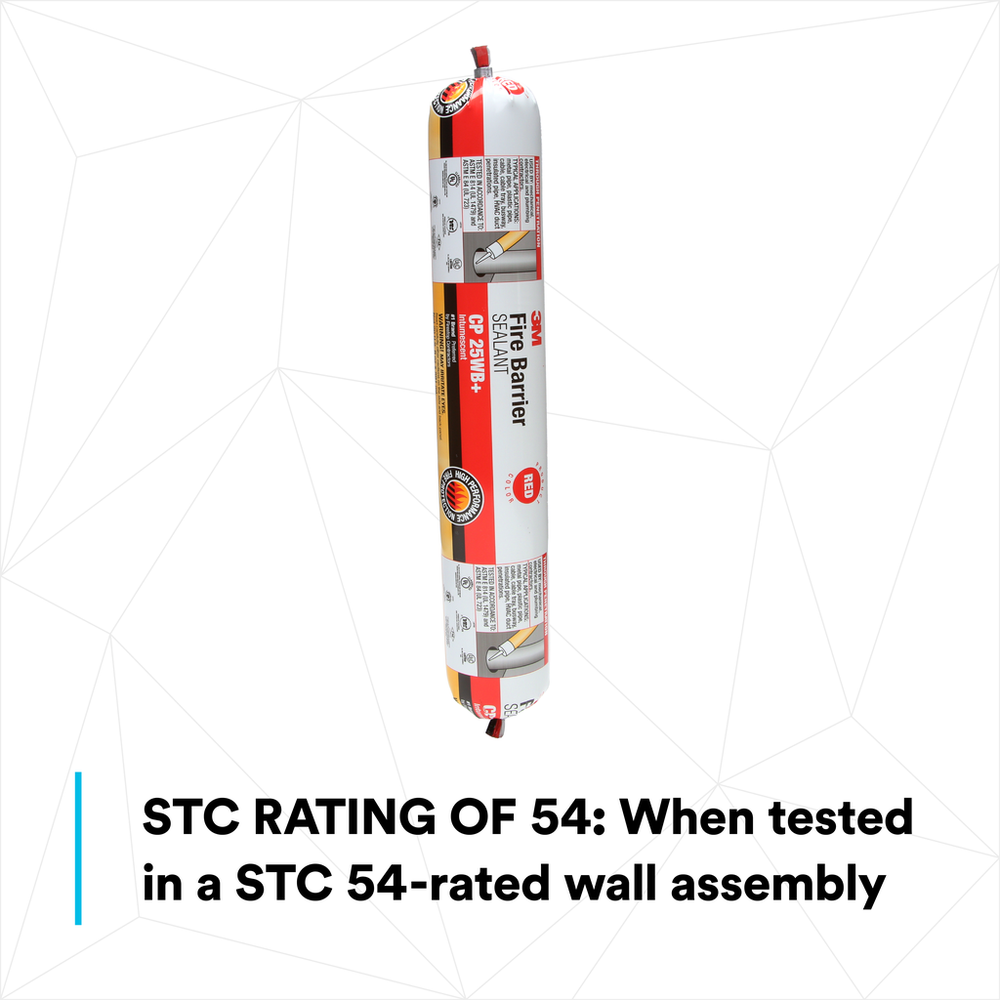

3M™ Fire Barrier Sealant CP 25WB+ is a one-component, latex-based, intumescent sealant that dries to form a monolithic firestop seal. This sealant also acts as a barrier to airborne sound transmission. As penetrants are exposed to fire, the intumescent property of this material allows the sealant to expand and help maintain a firestop penetration seal for up to 4 hours. This sealant is designed to help control the spread of fire, smoke and noxious gases before, during and after exposure to a fire when installed in accordance with a listed through-penetration or fire-resistive joint assembly system (STC-Rating of 54 when tested in a STC 54-rated wall assembly). 3M™ Fire Barrier Sealant CP 25WB+ firestops blank openings and penetrations passing through fire-rated floor, floor/ceiling or wall assemblies and other fire-rated interior building construction. This halogen-free sealant is capable of expanding a minimum of 3 times its dried volume when exposed to temperatures above 1000°F (538°C). We engineered this sag-resistant sealant to exhibit strong adhesion to a full range of construction substrates and penetrants. Applied with conventional caulking equipment, this gun-grade sealant offers an excellent caulk rate - no mixing is required. In addition, this water-based sealant is paintable as well as re-enterable and repairable, offering easy application and clean-up.

Features

  • Applied with conventional caulking equipment with excellent caulk rate
  • Firestop tested for through penetration applications up to 4 hours in accordance with ASTM E814 (UL 1479) and CAN/ULC-S115
  • Water-based and paintable sealant provides easy application and clean-up
  • Sag-resistant properties offer clean application as well as strong adhesion in both wall and floor applications
  • Fire resistance tested for static construction joint systems in accordance with ASTM E 1966 (UL 2079)
  • Sealant is re-enterable and repairable
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Water-tightNo
Container Size (Metric)591.0 ml
Smoke SealYes
Container Size (Imperial)20.0 fl oz (US)
Fire RatingUp to 4 Hour
Overall Length (Imperial)0.0
Overall Diameter (Metric)0.0
Overall Length (Metric)0.0
ApplicationCommercial Construction
Hardness45 Shore A
Product TypeSealant
Overall Diameter (Imperial)0.0
Overall Width (Metric)0.0
Overall Width (Imperial)0.0
