3M Products & Supplies

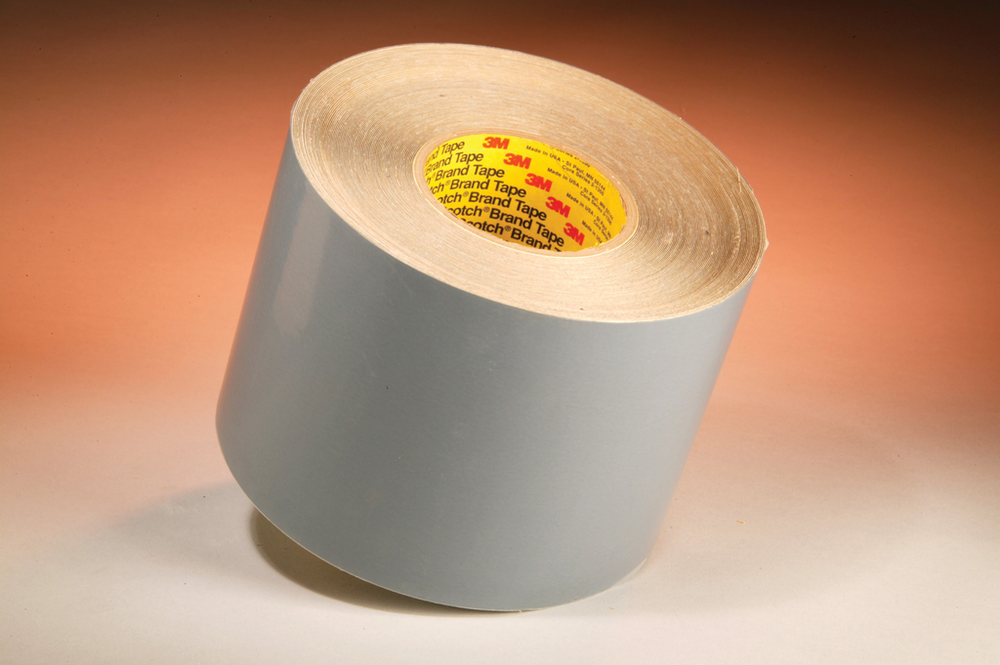

"3M™ Flexomount™ Plate Mounting Tape 411DL, Gray, 13 in x 36 yd, 15 mil, 1 Roll/Case" - 7010311772

SKU: 7010311772
MPN: 7010311772
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200863530
3M ID: 70006131125
5 Digit UPC: 86353
$708.52 each
Hurry up! Current stock:

Product Description

3M™ Flexomount™ Plate Mounting Tape 411DL is a double linered, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.

Features

  • High adhesion helps reduce plate edge lifting
  • Provides uniform coverage of solids when halftone dot reproduction is not critical
  • Specially formulated for clean removal from plate and print cylinder or sleeve
  • Double linered version of 411
  • Offers excellent adhesion to both rubber and photopolymer plates
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Primary LinerPolycoated Kraft Paper
Backing Thickness (Metric) UOMmm
IndustriesPrint
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric)0.38
Application Thickness (Metric) UOMmm
Urethane SleevesYes
Overall Length (Metric) UOMm
Backing Thickness (Imperial)15.0
Application Thickness (Metric)0.4
Primary Liner Thickness (Metric)0.1
Overall Thickness (Imperial)15.0
Overall Width (Metric) UOMmm
Product ColorGray
Print Quality (Series)400 Series
Overall Width (Imperial) UOMin
Print QualitySolid Printing
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)330.0
Overall Length (Metric)32.91
Application Thickness (Imperial)15
Overall Length (Imperial) UOMyd
Backing Thickness (Imperial) UOMmil
Overall Width (Imperial)13.0
Product FormRoll
Backing MaterialSolid Vinyl
Secondary Liner Thickness (Metric) UOMmm
Air ReleaseNo
Total Tape Thickness without Liner (Imperial)15.0
Secondary Liner Thickness (Metric)0.1
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Secondary LinerPolyethylene
Composite SleevesYes
Units per Case1.0
ApplicationFlexographic Plate Mounting
Application Thickness (Imperial) UOMmil
Warranty Period1 Year from Date of Manufacture
Overall Length (Imperial)36.0
Backing Thickness (Metric)0.381
