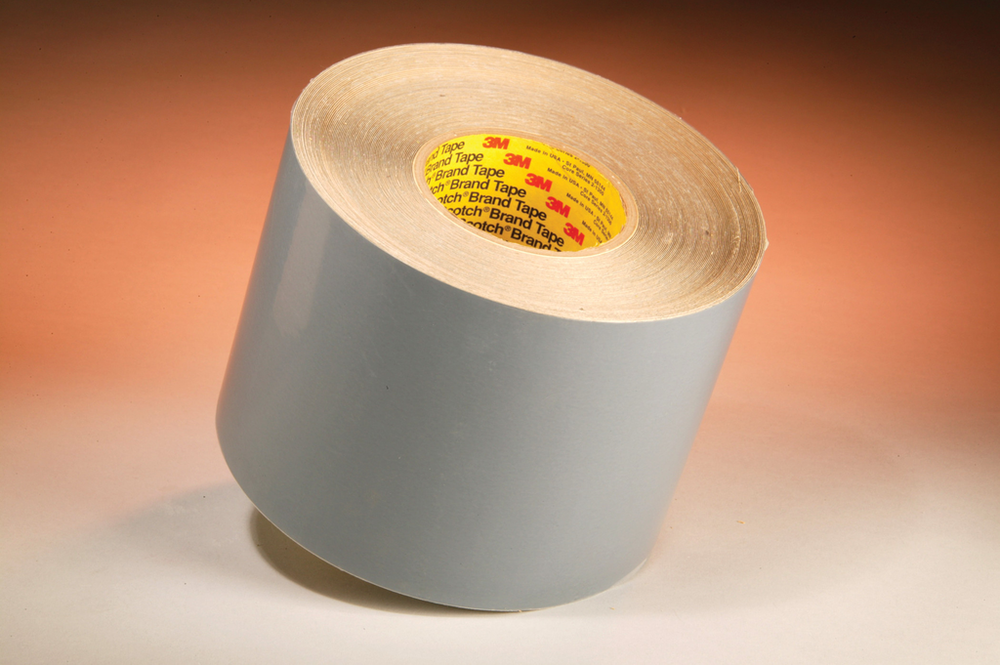

3M™ Flexomount™ Plate Mounting Tape 411DL is a double linered, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.
Features
Downloads
| Shelf Life | 365 |
|---|---|
| Country of Origin | United States |
| Overall Length (Imperial) UOM | yd |
| Secondary Liner | Polyethylene |
| Overall Thickness (Imperial) UOM | mil |
| Overall Length (Imperial) | 36.0 |
| Total Tape Thickness without Liner (Metric) UOM | mm |
| Air Release | No |
| Primary Liner Thickness (Metric) UOM | mm |
| Overall Thickness (Imperial) | 15.0 |
| Print Quality | Solid Printing |
| Application | Flexographic Plate Mounting |
| Overall Width (Imperial) | 2.0 |
| Total Tape Thickness without Liner (Imperial) | 15.0 |
| Primary Liner | Polycoated Kraft Paper |
| Total Tape Thickness without Liner (Imperial) UOM | mil |
| Overall Width (Metric) UOM | mm |
| Overall Length (Metric) | 32.91 |
| Primary Liner Thickness (Metric) | 0.1 |
| Secondary Liner Thickness (Metric) UOM | mm |
| Units per Case | 24.0 |
| Product Form | Roll |
| Print Quality (Series) | 400 Series |
| Urethane Sleeves | Yes |
| Product Color | Gray |
| Overall Width (Imperial) UOM | in |
| Secondary Liner Thickness (Metric) | 0.1 |
| Application Thickness (Imperial) | 15 |
| Application Thickness (Metric) UOM | mm |
| Warranty Period | 1 Year from Date of Manufacture |
| Industries | |
| Application Thickness (Metric) | 0.4 |
| Total Tape Thickness without Liner (Metric) | 0.38 |
| Application Thickness (Imperial) UOM | mil |
| Overall Length (Metric) UOM | m |
| Composite Sleeves | Yes |
| Overall Width (Metric) | 50.8 |
| Backing Material | Solid Vinyl |
| Adhesive Type | Rubber |
