3M Products & Supplies

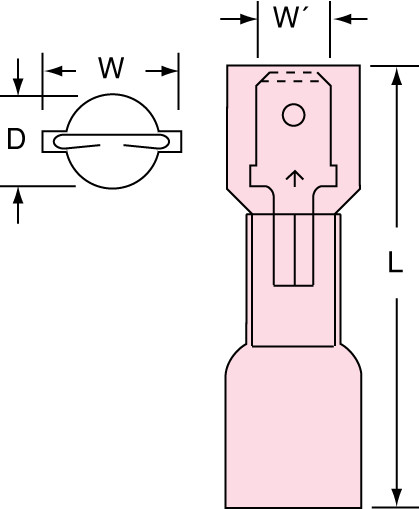

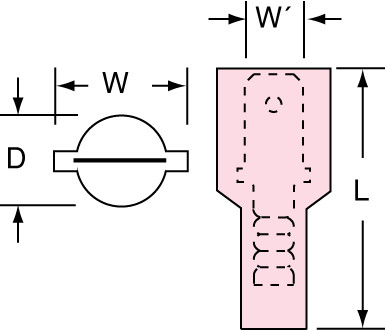

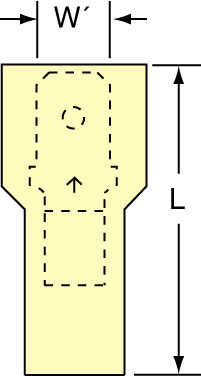

3M™ Fully Nylon Insulated Butted Seam Male Disconnect, 71M-250-32-NL, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100163888

Sold As: 1000-Pack
SKU: 7100163888
MPN: 7100163888
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007301097
3M ID: 80601399399
MPN: 71M-250-32-NL
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.25
Maximum Conductor Size (Imperial)18 AWG
Disconnect TypeMale
Maximum Conductor Size (Metric)1 mm²
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Terminal TypeDisconnect
Minimum Conductor Size (Metric).34 mm²
Connection Width (Imperial) UOMin
