3M Products & Supplies

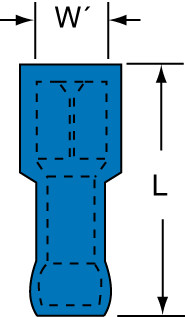

3M™ Fully Nylon Insulated with Insulation Grip Female Disconnect, 72F-187-20-NBL, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7000132210

Sold As: 1000-Pack
SKU: 7000132210
MPN: 7000132210
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007294467
3M ID: 80601391701
MPN: 72F-187-20-NBL
$279.49 ($0.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Maximum Conductor Size (Metric)2.5 mm²
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial)0.187
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric)4.75
Terminal TypeDisconnect
Disconnect TypeFemale
Country of OriginUnited States
Connection Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
