3M Products & Supplies

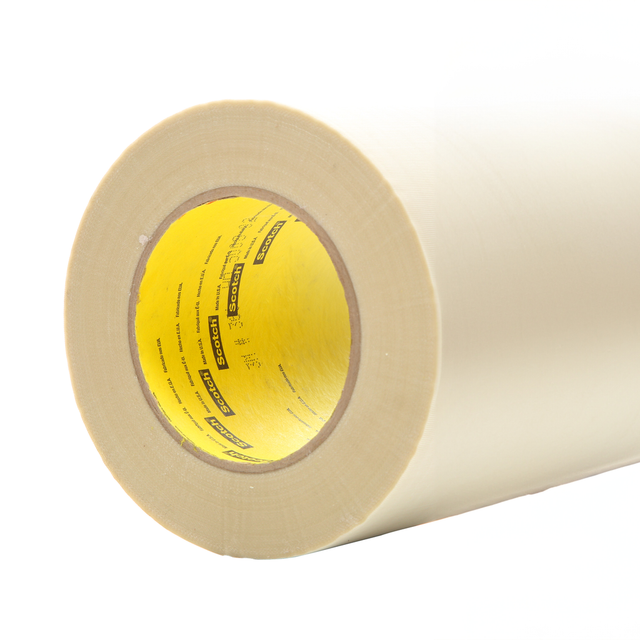

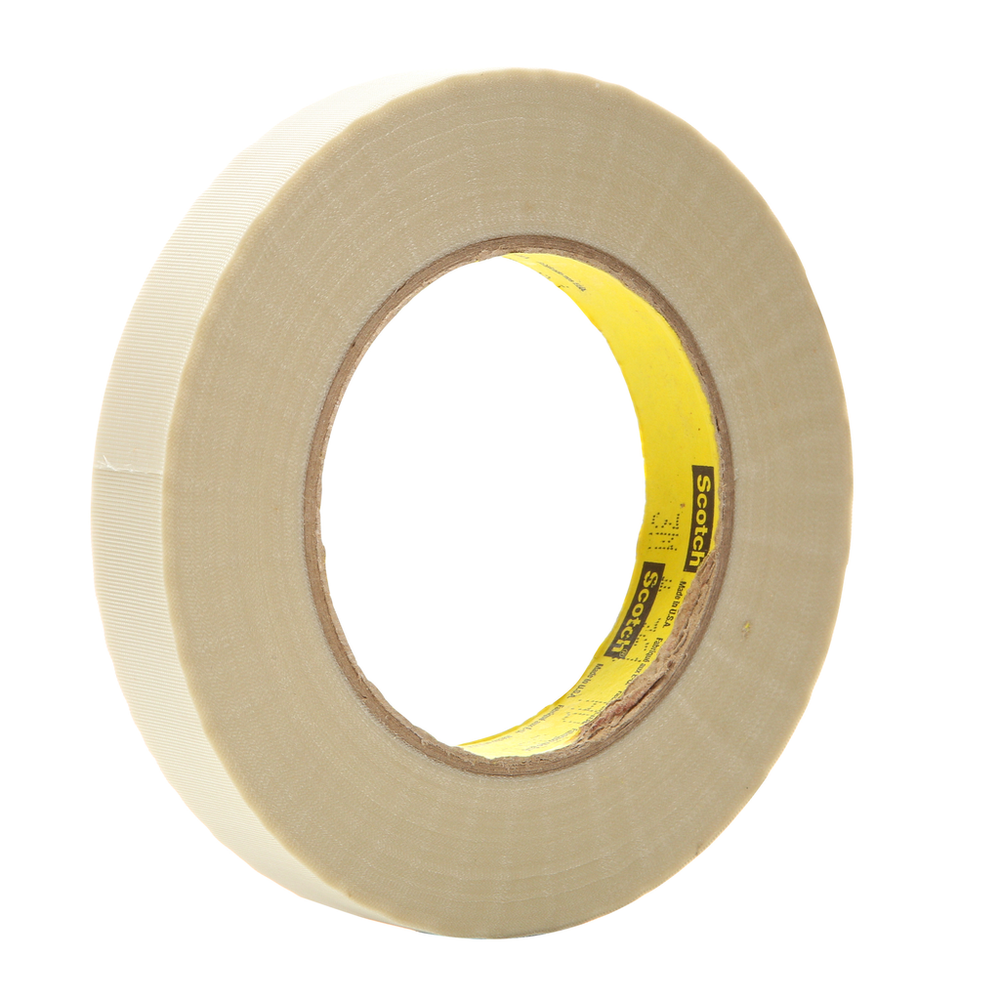

3M™ Glass Cloth Tape 361, White, 3/4 in x 60 yd, 6.4 mil, 8 Rolls/Case - 7100226547

Sold As: 64-Pack
SKU: 7100226547
MPN: 7100226547
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406359
3M ID: 70007543484
5 Digit UPC: 40635
$6,256.16 ($97.75 / Count)
Hurry up! Current stock:

Product Description

Constructed with a woven fiberglass backing, 3M™ Glass Cloth Tape 361 features a pressure sensitive silicone adhesive for applications requiring high-temperature resistance, high adhesion and clean removal. It is often used for high temperature applications such as sealing ducts and as a back-up strip for submerged arc welding.

Features

  • Can be certified to meet F.A.R. 25.853, flame resistant specification
  • Strong abrasion resistant backing provides strength for bundling, harnessing and protection applications requiring high tensile strength
  • Silicone adhesive provides good holding power and clean removal across a wide range of temperatures
  • Used for permanent sealing of high temperature ducts or chambers
  • Withstands temperatures from -65°F/-54°C to 450°F/232°C and intermittent temperatures up to 550°F/288°C or higher, depending on the type and duration of the heat source
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.16
Tensile Strength (Imperial)2336.0
Tensile Strength (Metric)2557.0
Product ColorWhite
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break9
Adhesive TypeSilicone
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.13
Overall Length (Imperial)60.0
Overall Length (Metric)54.864
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)5.0
Overall Width (Metric)19.05
ApplicationSurface Protection
Tensile Strength (Imperial) UOMoz/in
Overall Width (Imperial)0.75
Backing (Carrier) MaterialGlass Cloth
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)6.4
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Core Size (Metric)7.62
Maximum Operating Temperature (Celsius) UOMDegree
Core Size (Imperial)3.0
Maximum Operating Temperature (Celsius)232.0
Product CategorySpecialty Tapes
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)450.0
Back Side Adhesive Thickness (Imperial)1.4
Core Size (Metric) UOMcm
Specifications MetF.A.R. 25.853(a)
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit)-65.0
Minimum Operating Temperature (Celsius)-54.0
IndustriesAerospace, Appliance, Automotive, Construction, General Industrial, MRO, Marine, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.03
