3M Products & Supplies

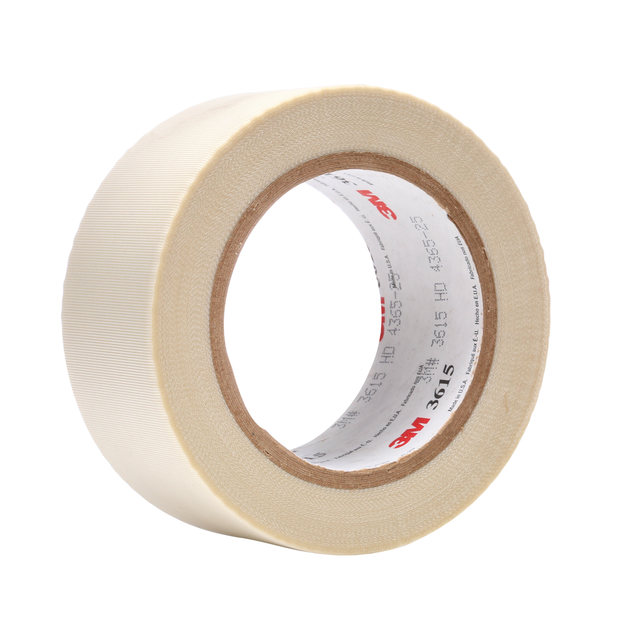

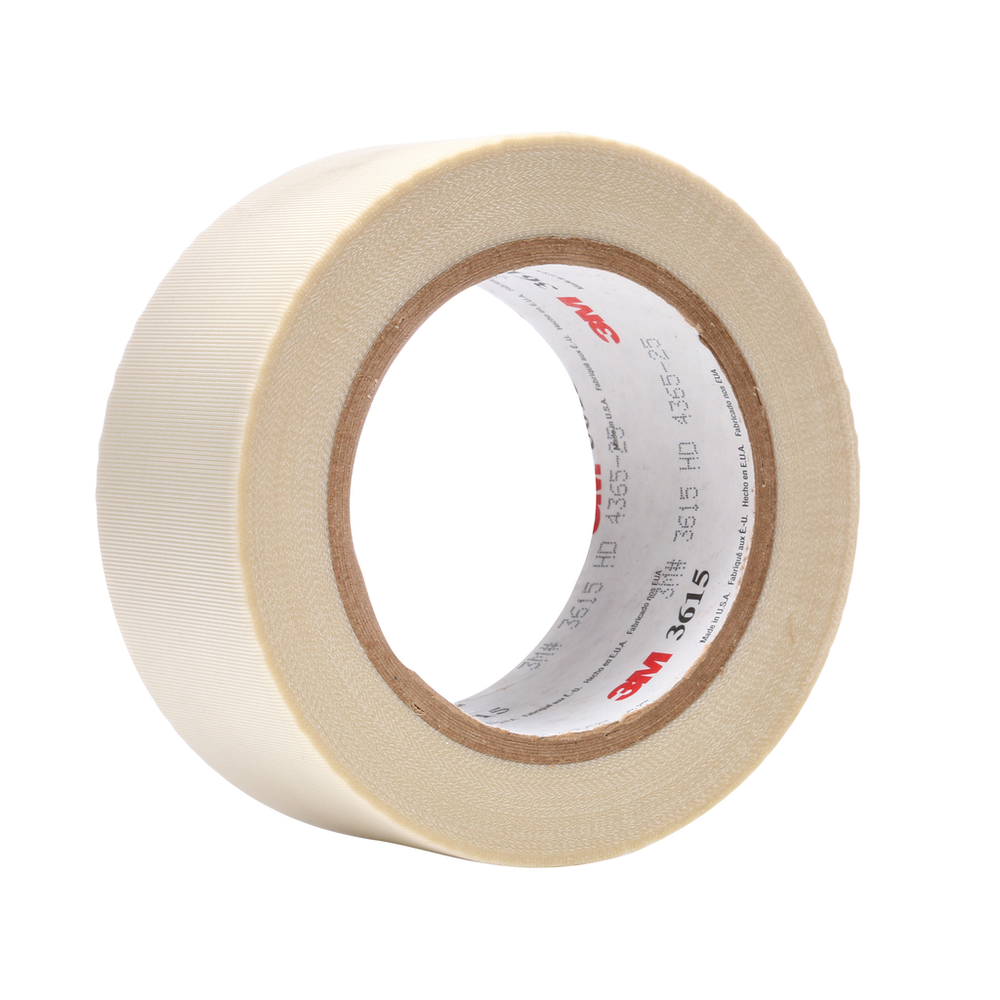

3M™ Glass Cloth Tape 3615, White, 2 in x 36 yd, 7 mil, 24 Rolls/Case, Plastic Core - 7100264117

Sold As: 24-Pack
SKU: 7100264117
MPN: 7100264117
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060001306
3M ID: 70007549051
5 Digit UPC: 130
$2,600.06 ($108.34 / Count)
Hurry up! Current stock:

Product Description

Constructed with a woven fiberglass backing, 3M™ General Purpose Glass Cloth Tape 3615 features a pressure sensitive silicone adhesive for applications requiring high-temperature resistance and high adhesion. It is often used for high temperature applications requiring high tensile strength and good holding power.

Features

  • Withstands temperatures ranging from -65°F/-54°C to 450°F/232°C and intermittent temperatures up to 550°F/288°C or higher, depending on the type and duration of the heat source
  • Thicker version of 3M™ Glass Cloth Tape 361
  • Used for permanent sealing of high temperature ducts or chambers
  • Silicone adhesive provides long aging, good holding power and clean removal across a wide range of temperatures
  • Strong abrasion resistant backing provides strength for bundling, harnessing and protection applications requiring high tensile strength
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Imperial)2880.0
Overall Width (Metric)50.8
Maximum Operating Temperature (Fahrenheit)450.0
Overall Width (Metric) UOMmm
Product ColorWhite
Maximum Operating Temperature (Celsius)232.0
Total Tape Thickness without Liner (Imperial)7.0
Backing (Carrier) MaterialGlass Cloth
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) Thickness (Imperial)5.0
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Imperial) UOMin
Adhesive TypeSilicone
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Tensile Strength (Metric)315.2
Overall Length (Metric)32.918
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Elongation at Break7
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-54.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)1.3
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.18
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)2.0
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Back Side Adhesive Thickness (Imperial) UOMmil
Core Size (Metric) UOMcm
IndustriesAerospace, Automotive, Construction, General Industrial, Military and Government, Specialty Vehicles, Transportation
Back Side Adhesive Thickness (Metric)0.05
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)2.0
Core Size (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Shelf Life UOMMonth
Core Size (Metric)7.62
Core Size (Imperial)3.0
