3M Products & Supplies

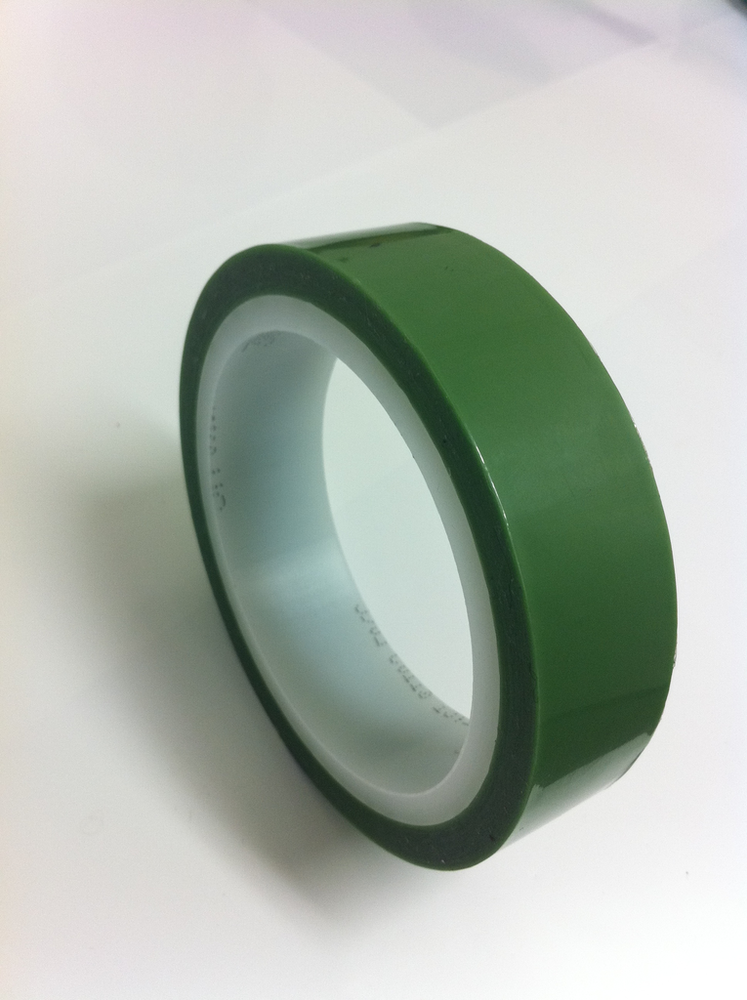

3M™ Greenback Printed Circuit Board Tape 851 Green, 2 IN x 72 YD, 24/Case, Bulk - 7000048418

Sold As: 24-Pack
SKU: 7000048418
MPN: 7000048418
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200045905
3M ID: 70006026135
5 Digit UPC: 4590
$1,509.98 ($62.92 / Count)
Hurry up! Current stock:

Product Description

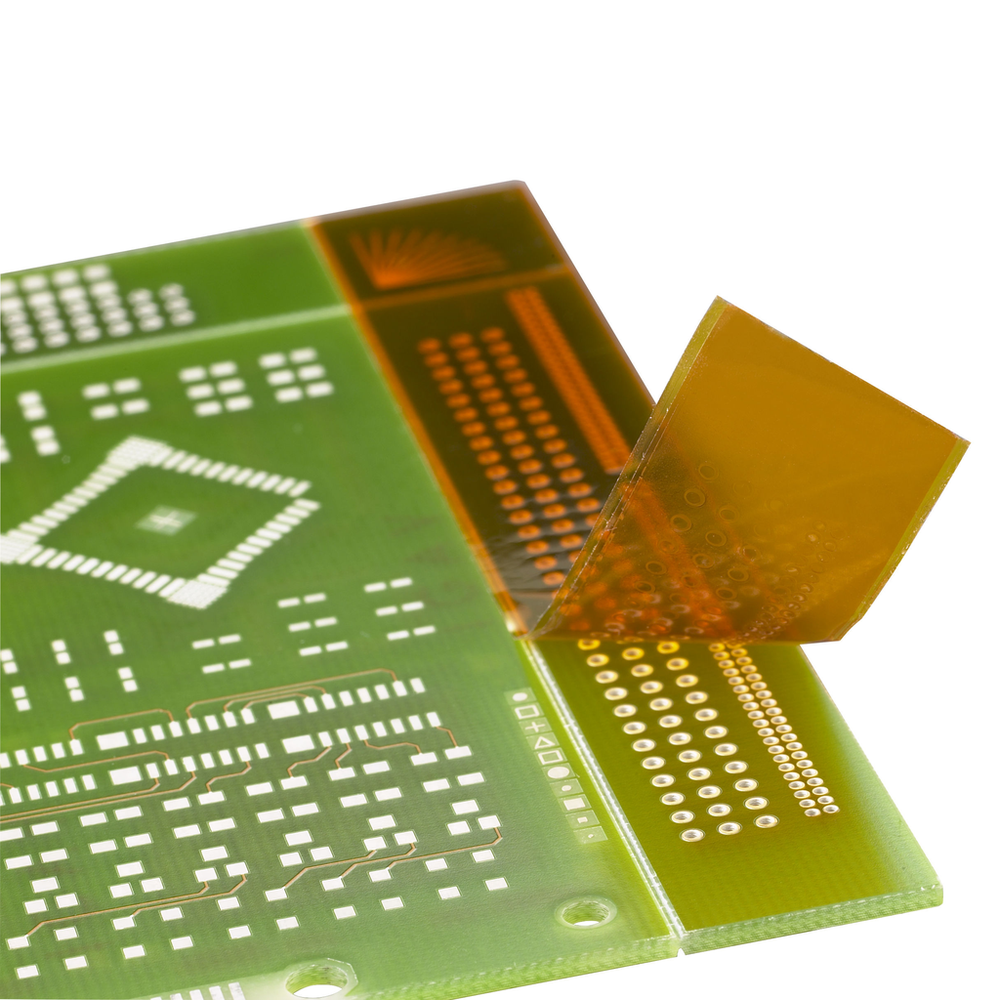

3M™ Circuit Plating Tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Green, 4.0 mil thick.

Features

  • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
  • Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
  • Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
  • Polyethylene tape core instead of cardboard
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeSilicone/Rubber
Overall Length (Metric)66.0
Backing (Carrier) MaterialPolyester
Product ColorGreen
Total Tape Thickness without Liner (Metric)0.091
Total Tape Thickness without Liner (Imperial)3.6
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Width (Imperial)2.0
Overall Width (Metric)50.8
Overall Length (Imperial)72.0
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
