3M Products & Supplies

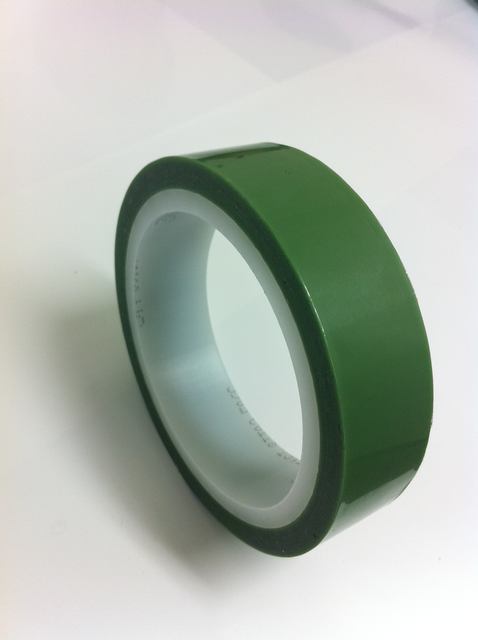

3M™ Greenback Printed Circuit Board Tape 851 Green, 3 in x 72 yds x 4.0 mil, 12/Case, Bulk - 7010045055

Sold As: 12-Pack
SKU: 7010045055
MPN: 7010045055
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200052477
3M ID: 70006035599
5 Digit UPC: 5247
$1,132.48 ($94.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Circuit Plating Tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Green, 4.0 mil thick.

Features

  • Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
  • Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
  • Polyethylene tape core instead of cardboard
  • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Overall Length (Metric) UOMm
Overall Length (Imperial)72.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)76.2
Overall Width (Metric) UOMmm
Overall Length (Metric)65.837
Total Tape Thickness without Liner (Imperial)3.6
Overall Width (Imperial) UOMin
Overall Width (Imperial)3.0
Product ColorGreen
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.091
Adhesive TypeSilicone/Rubber
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric) UOMmm
