3M Products & Supplies

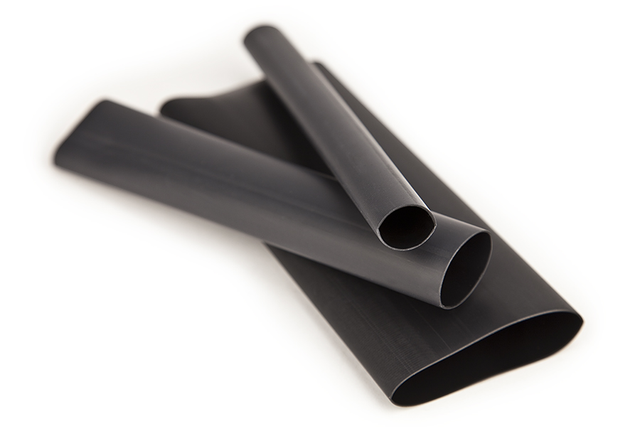

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1/2-6"-Black-10-10 Pc Pks, 6 in length sticks, 10 pieces/pack, 10 Packs/Case - 7010321025

Sold As: 10-Pack
SKU: 7010321025
MPN: 7010321025
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600559
3M ID: 80611603178
5 Digit UPC: 60055
$313.99 ($31.40 / Count)
Hurry up! Current stock:

Product Description

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Flame-retardant tubing is rated for 600V applications
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)0.25
Flame RetardantYes
MaterialFlexible Polyolefin
Inner Diameter After Shrink (Imperial)0.25
Inner Diameter Before Shrink (Metric)12.7
Inner Diameter Before Shrink (Imperial)0.5
Elongation UOMdB
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength UOMV/mil
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case10.0
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Dielectric Strength800.0
Minimum Expanded Tubing I. D.0.5
UL File NumberE-39100
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)6.0
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
