3M Products & Supplies

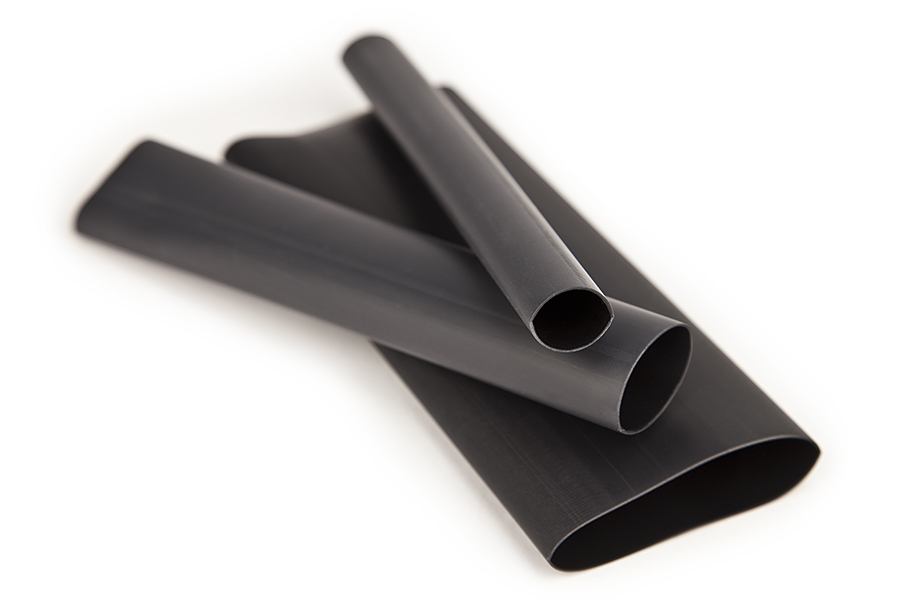

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1/4-48"-Black-200 Pcs, 48 in length sticks, 200 pieces, 200/Case - 7100050425

Sold As: 200-Pack
SKU: 7100050425
MPN: 7100050425
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128598153
3M ID: 80611600760
5 Digit UPC: 59815
$1,389.34 ($6.95 / Count)
Hurry up! Current stock:

Product Description

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.125
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)3.18
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)6.35
MaterialPolyolefin
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D.0.25
Elongation UOMdB
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
