3M Products & Supplies

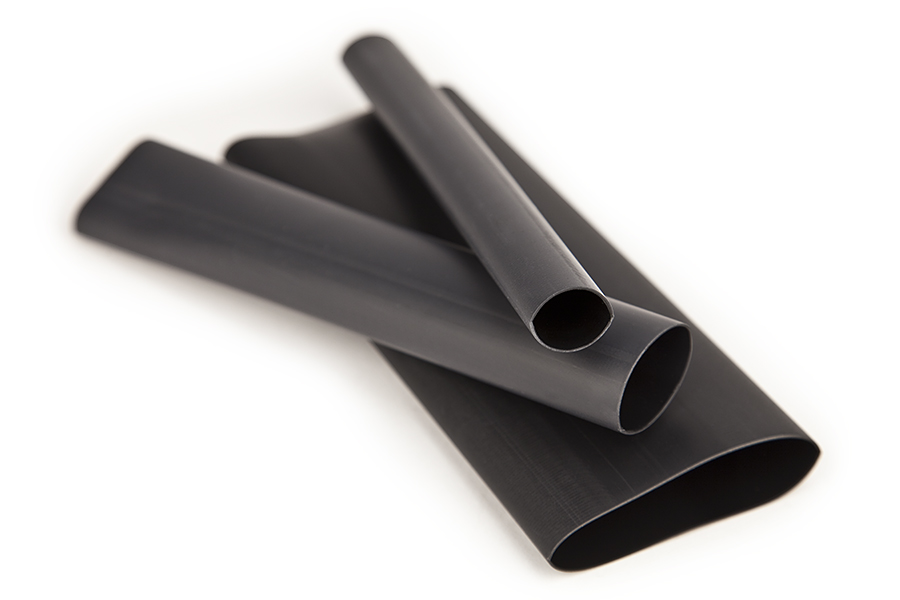

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-2-48"-Black-2 Pcs, 48 in length sticks, 2 pieces, 2/Case - 7000133579

Sold As: 2-Pack
SKU: 7000133579
MPN: 7000133579
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597279
3M ID: 80611473887
5 Digit UPC: 59727
$153.22 ($76.61 / Count)
Hurry up! Current stock:

Product Description

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Offers the advantage of integral, adhesive-lined construction

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius)110.0
Mil SpecAMS-DTL-23053/4, Class 2
Minimum Expanded Tubing I. D.2.0
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)2.0
Inner Diameter After Shrink (Metric)16.5
Elongation UOM%
Units per Case2.0
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.65
MaterialPolyolefin
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)50.8
Overall Length (Imperial)48.0
UL File NumberE-39100
