3M Products & Supplies

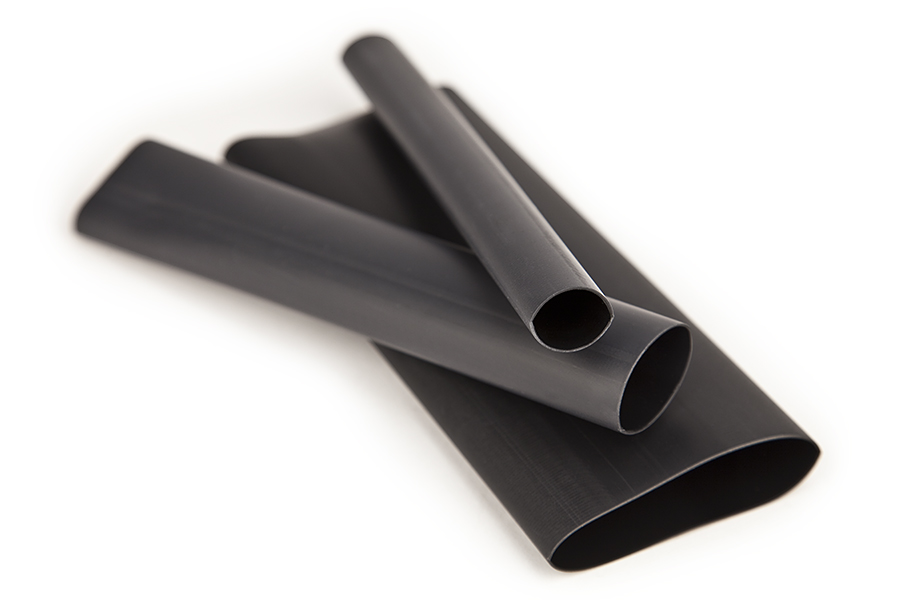

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-3/16-48"-Black-12 Pcs, 48 in length sticks, 12 pieces, 12/Case - 7100049964

Sold As: 12-Pack
SKU: 7100049964
MPN: 7100049964
For an accurate lead time please contact us
UPC: 00051128597200
3M ID: 80611473812
5 Digit UPC: 59720
$93.17 ($7.76 / Count)
Hurry up! Current stock:

Product Description

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.0.187
Units per Case12.0
MaterialPolyolefin
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOMdB
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Flame RetardantYes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)2.36
Inner Diameter After Shrink (Imperial)0.093
