3M Products & Supplies

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-3/8-6"-Black-10-10 Pc Pks, 6 in length sticks, 10 pieces/pack, 10 Packs/Case - 7010398878

Sold As: 10-Pack
SKU: 7010398878
MPN: 7010398878
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600610
3M ID: 80611603236
5 Digit UPC: 60061
$261.52 ($26.15 / Count)
Hurry up! Current stock:

Product Description

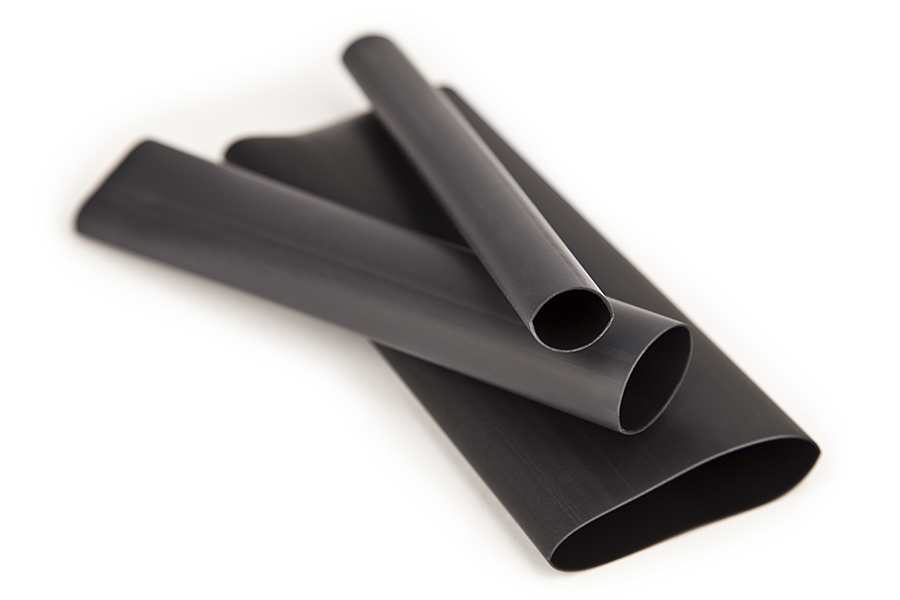

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric)9.53
Flame RetardantYes
Minimum Expanded Tubing I. D.0.375
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)6.0
MaterialPolyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.375
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.187
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case10.0
Inner Diameter After Shrink (Metric)4.75
Elongation UOMdB
