3M Products & Supplies

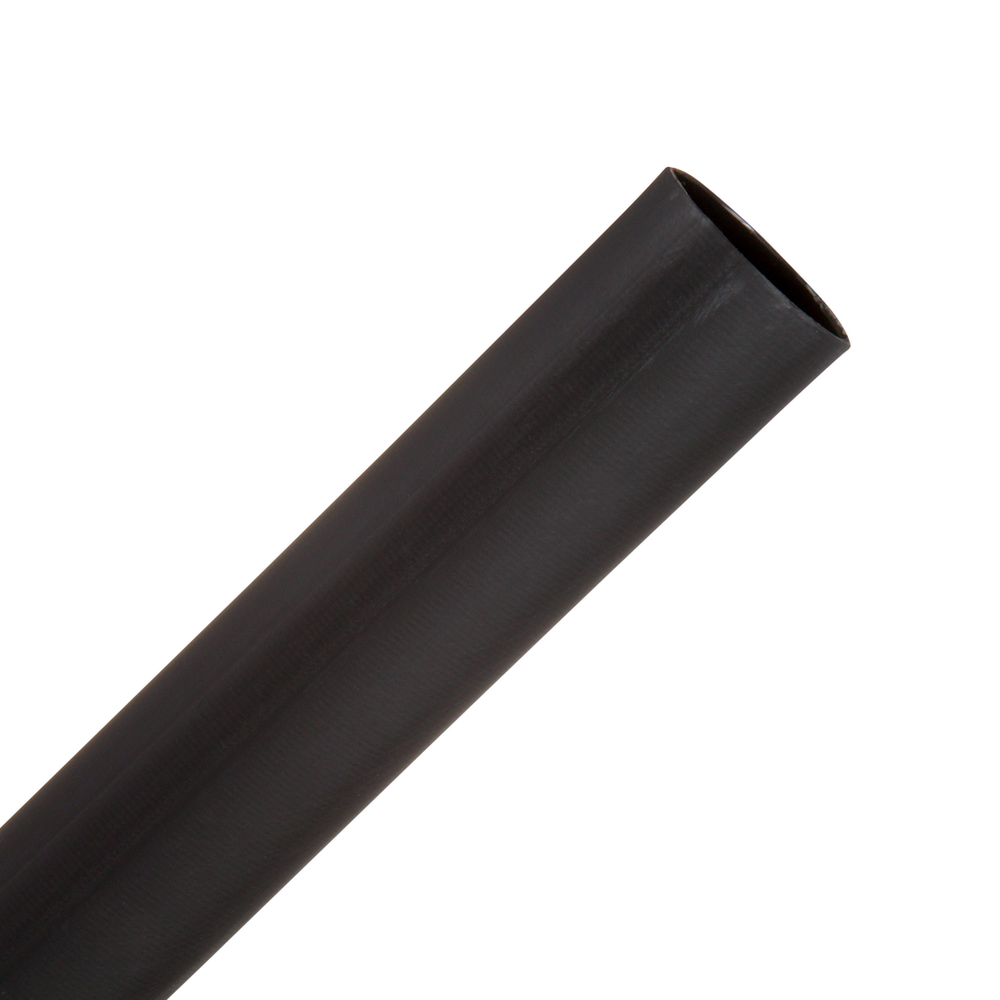

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG, Expanded/Recovered I.D. 0.80/0.20 in, 25 ft Reel length, 1/Case - 7000132369

SKU: 7000132369
MPN: 7000132369
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088882
3M ID: 80610229470
5 Digit UPC: 8888
$194.09 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Inner Diameter After Shrink (Metric)0.508
Units per Case1.0
Mil SpecAMS-DTL-23053/15,Class 1
Maximum Conductor Size (Metric)50 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOMdB
Inner Diameter After Shrink (Imperial) UOMin
Direct BuryNo
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.2
Product FormSleeve-roll
UL File NumberE-102356
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit)230.0
Shrink Ratio4:1
Non-CorrosiveYes
Dielectric Strength (V/mil)500 V/mil
Specifications MetUL 486D*
Inner Diameter Before Shrink (Imperial) UOMin
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)2.032
Minimum Expanded Tubing I. D.0.8
Minimum Conductor Size (Imperial)8 AWG
Overall Length (Imperial) UOMft
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Adhesive LinedNo
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial)25.0
Inner Diameter Before Shrink (Metric) UOMcm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMcm²
Overall Length (Metric)7.62
Maximum Operating Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial)0.8
Splice TypeHeat Shrink
Product TypeSplice
Maximum Conductor Size (Imperial)1/0 AWG
Minimum Conductor Size (Metric)10 mm²
Tubing TypeHeavy Wall
