3M Products & Supplies

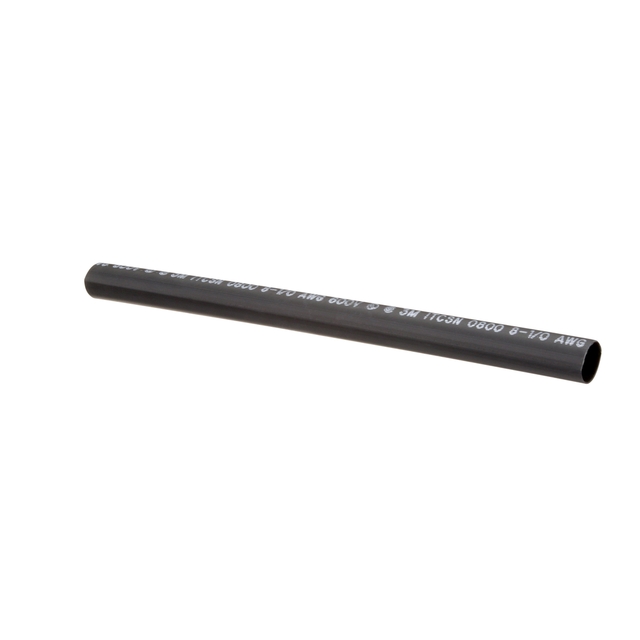

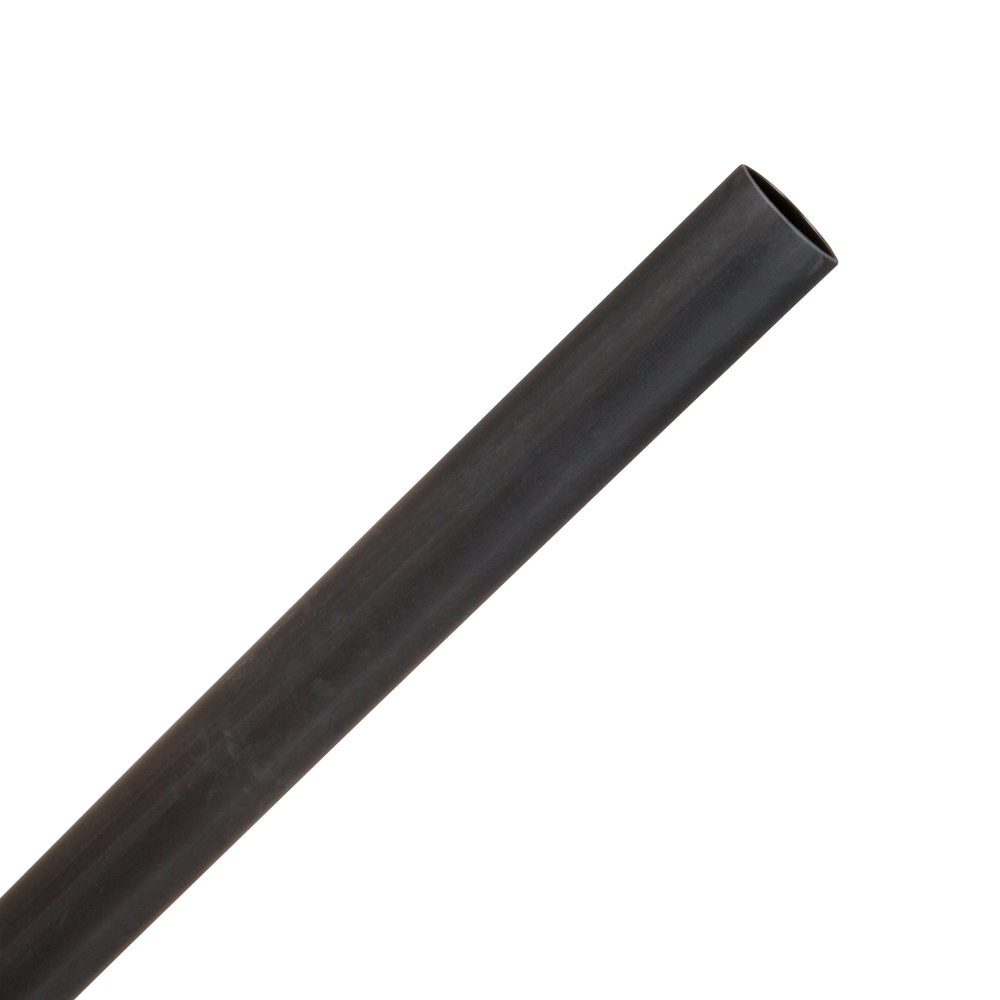

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, Expanded/Recovered I.D. 0.80/0.20 in, 8-1/0 AWG, 9 in Length, 100/case - 7000132154

Sold As: 100-Pack
SKU: 7000132154
MPN: 7000132154
For an accurate lead time please contact us
UPC: 00054007089667
3M ID: 80008007207
5 Digit UPC: 8966
$880.19 ($8.80 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Units per Case100.0
Product TypeSplice
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial)0.8
Inner Diameter After Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Chemical ResistantYes
Direct BuryYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Dielectric Strength (V/mil)500 V/mil
Inner Diameter After Shrink (Imperial)0.2
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric) UOMcm²
Flame RetardantNo
Inner Diameter Before Shrink (Metric)2.032
Overall Length (Imperial)9.0
Product ColorBlack
Inner Diameter After Shrink (Metric) UOMcm²
Specifications MetUL 486D*
Non-CorrosiveYes
Minimum Expanded Tubing I. D.0.8
Splice TypeHeat Shrink
Adhesive LinedYes
Tubing TypeHeavy Wall
Overall Length (Imperial) UOMin
Overall Length (Metric)229.0
MaterialAdhesive-lined Polyolefin
Maximum Operating Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric)0.508
Minimum Expanded Tubing I. D. UOMin
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Shrink Ratio4:1
Elongation UOM%
