3M Products & Supplies

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 0.80/0.20 in, 48 in Length, 20/case - 7000132159

Sold As: 20-Pack
SKU: 7000132159
MPN: 7000132159
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089728
3M ID: 80008007264
5 Digit UPC: 8972
$922.20 ($46.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

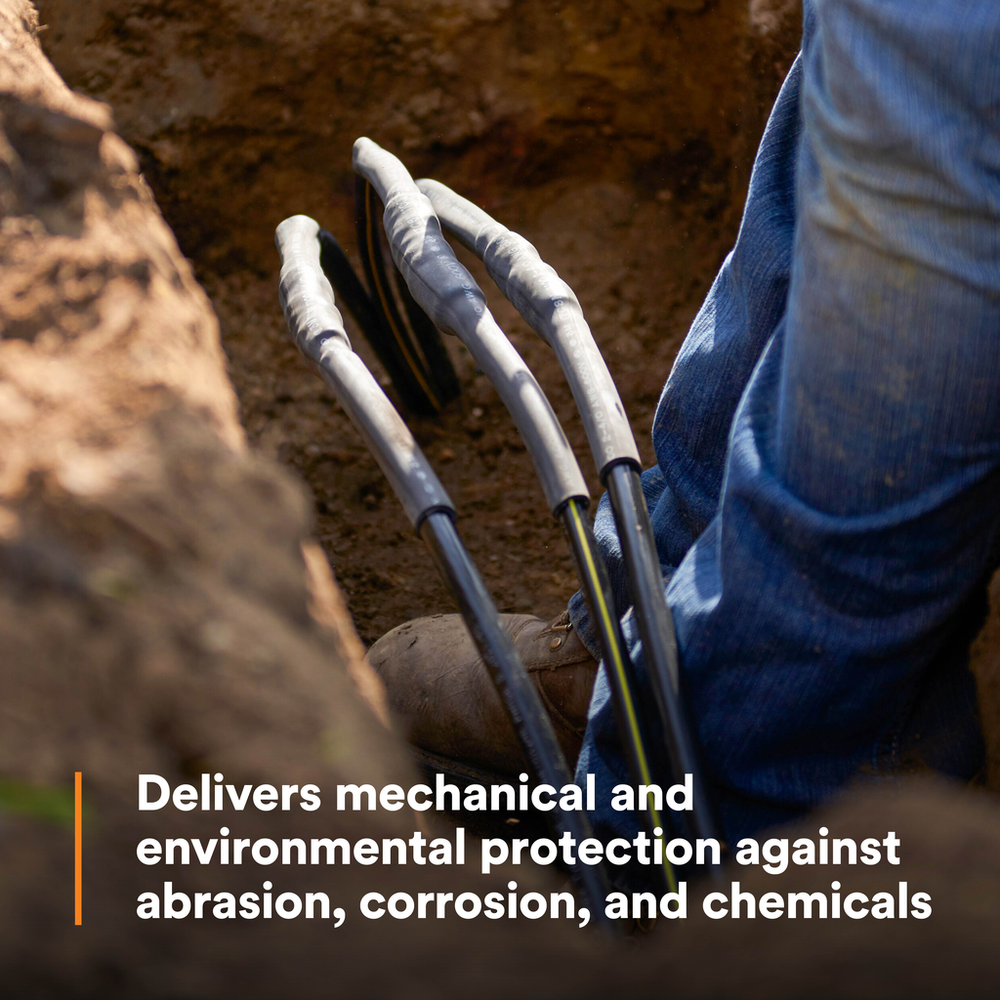

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals

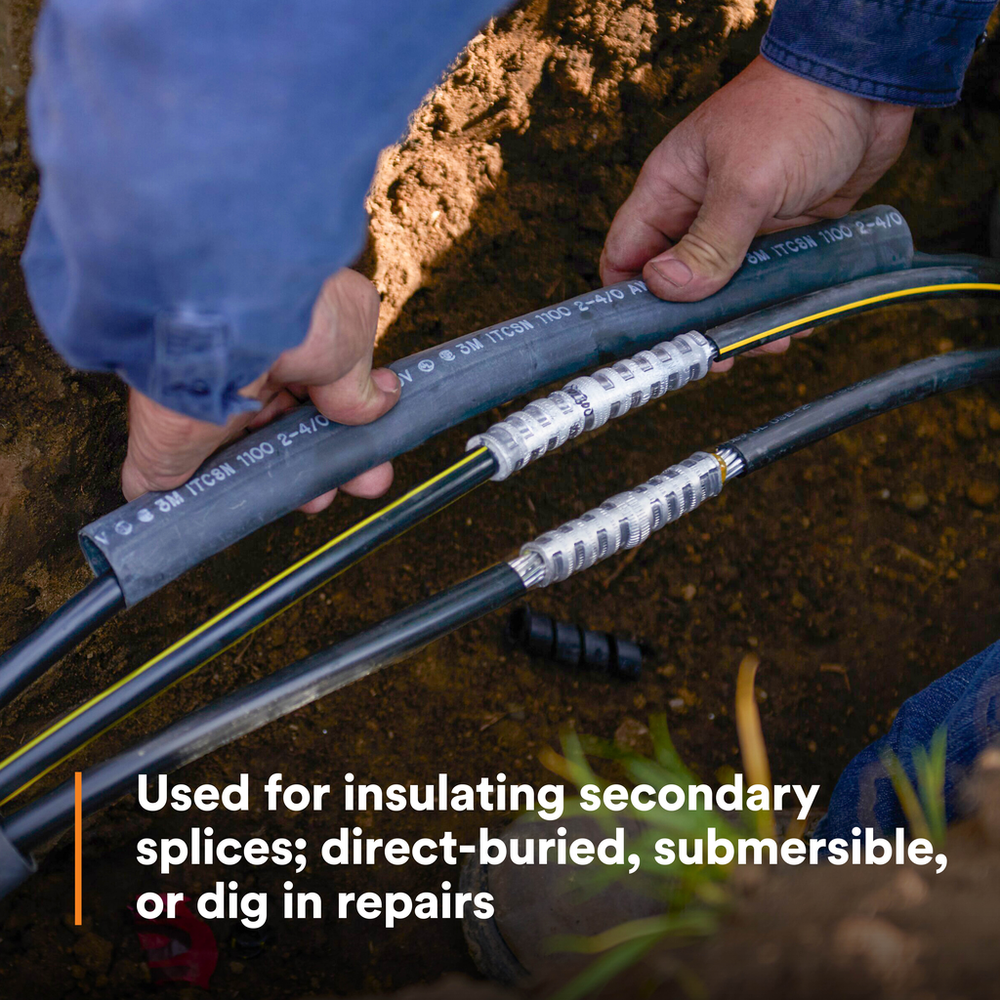

  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs

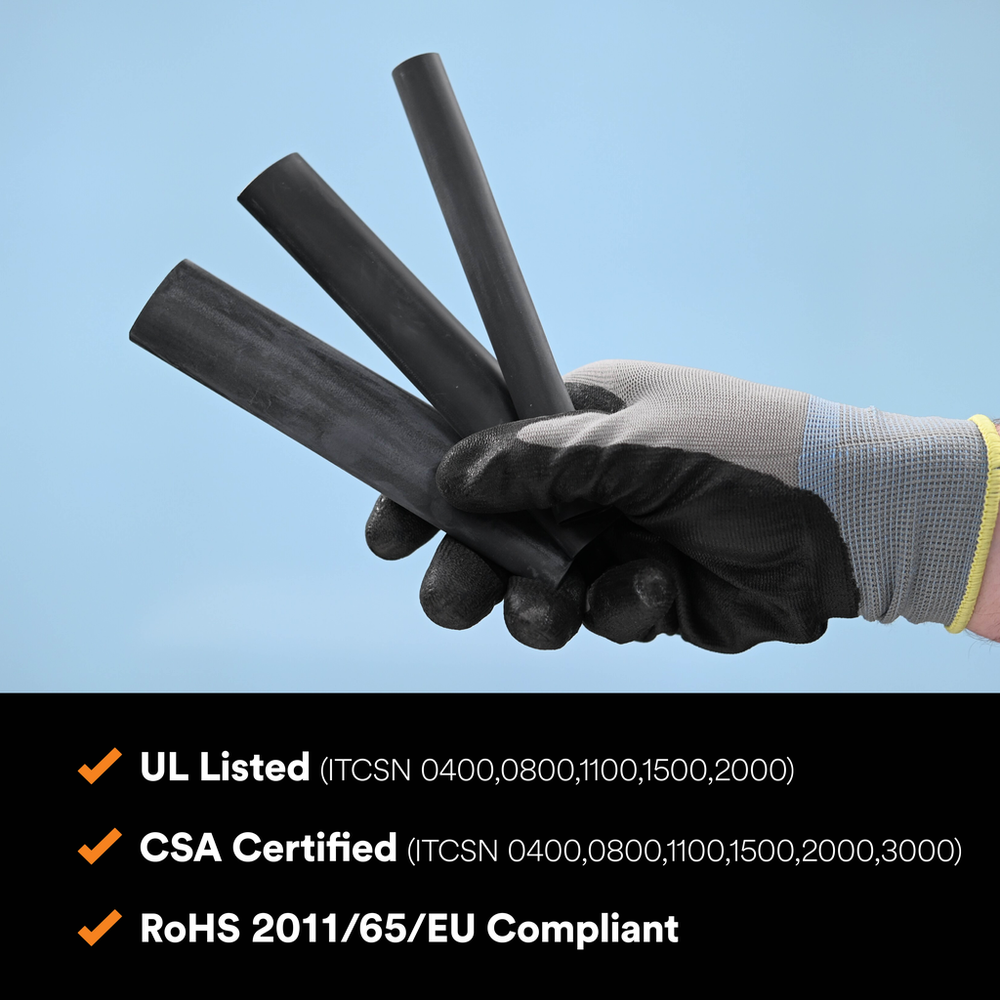

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant

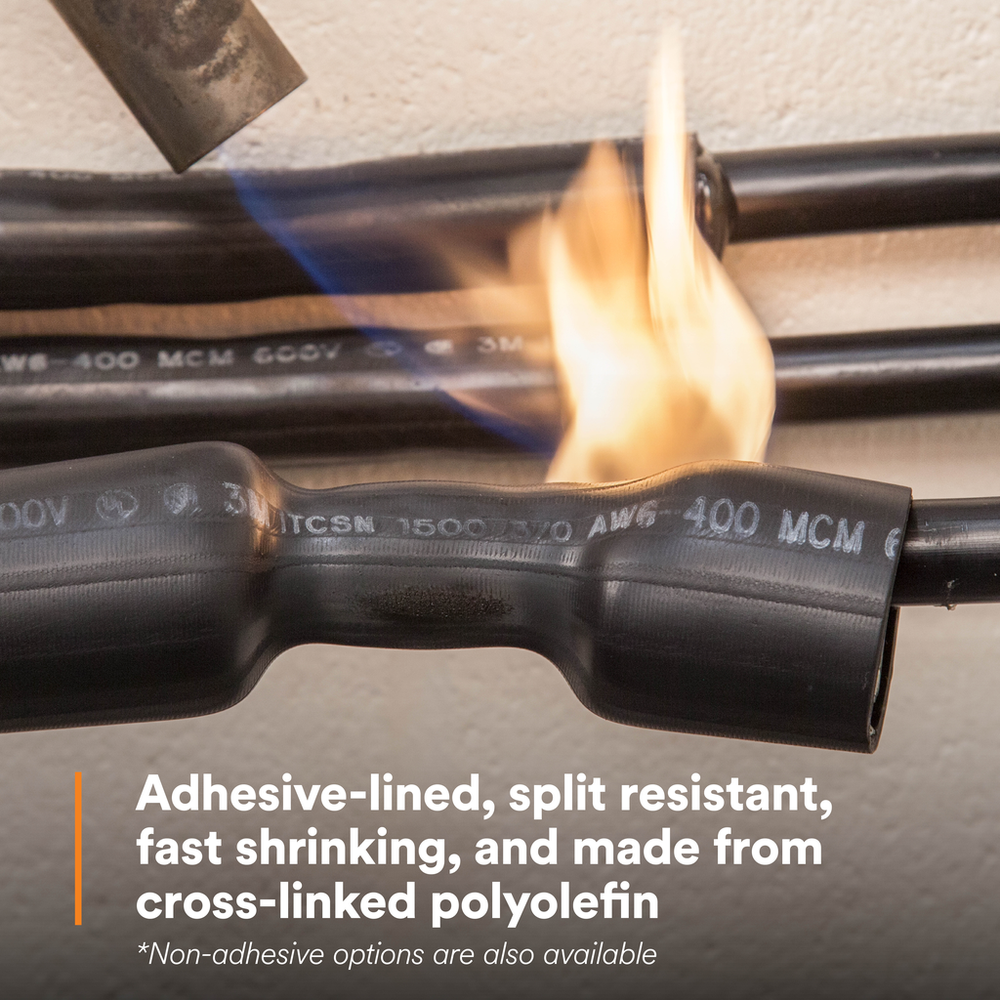

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +110 °C
MaterialAdhesive-lined Polyolefin
Product FormSleeve-roll
Inner Diameter After Shrink (Metric)0.508
Inner Diameter After Shrink (Imperial)0.2
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Direct BuryYes
Minimum Expanded Tubing I. D.0.8
Maximum Operating Temperature (Fahrenheit)230.0
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)35 mm²
Specifications MetUL 486D*
Overall Length (Imperial) UOMin
Product ColorBlack
Minimum Conductor Size (Imperial)2 AWG
Tubing TypeHeavy Wall
Dielectric Strength (V/mil)500 V/mil
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantNo
Overall Length (Metric)1219.0
Maximum Conductor Size (Metric)120 mm²
Inner Diameter Before Shrink (Metric)2.032
Shrink Ratio4:1
Maximum Conductor Size (Imperial)4/0 AWG
Overall Length (Imperial)48.0
Units per Case20.0
Inner Diameter Before Shrink (Imperial)0.8
Inner Diameter Before Shrink (Metric) UOMcm²
UL File NumberE-102356
Inner Diameter After Shrink (Imperial) UOMin
Splice TypeHeat Shrink
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Adhesive LinedYes
Mil SpecSAE-AMS-DTL-23053/15, Class 1
Elongation UOM%
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric) UOMcm²
Product TypeSleeve
